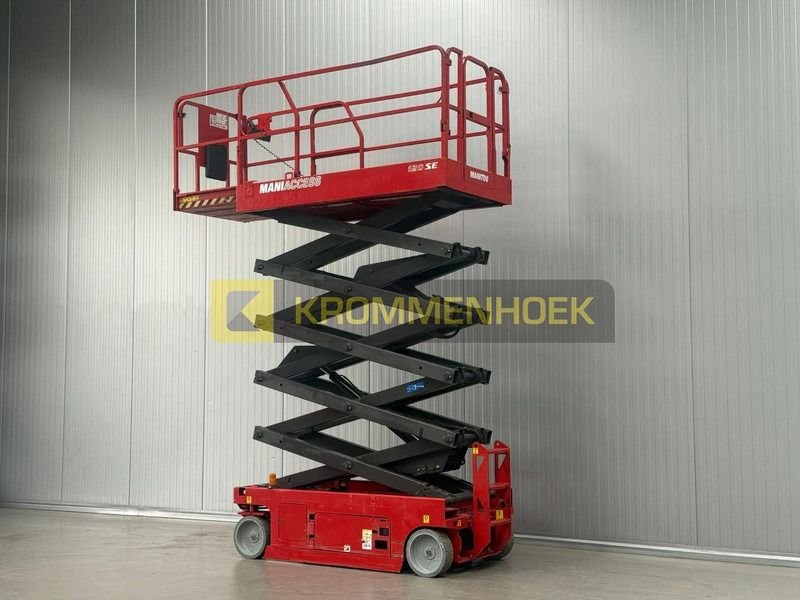

Manitou 120XEL – specifications

Series: Other models

Build year not documented · Data origin: Directory data · sources

Source: truck1.eu

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Manitou 120XEL is an electrically powered aerial work platform belonging to the category of boom lifts. This machine was designed for use indoors and on sensitive surfaces where emission-free and quiet operation is required. The model belongs to the family of compact lifts, which are designed for precise positioning tasks due to their small dimensions and specific drive concept.

With a length of 2,800 mm and a width of 1,200 mm, the platform can be maneuvered through narrow passages. The empty weight of 2,840 kg requires a check of the load-bearing capacity when set up on soft floors, as the ground clearance of 120.1 mm only overcomes minor obstacles. The solid tires in size 16.5x11.25 are non-marking to avoid soiling floor coverings. The maximum speed of 3.5 km/h and the turning radius of 2,750 mm enable controlled driving in enclosed spaces. The platform offers an area of 2,700 mm in length with a load capacity of 320 kg. An extension of 1,200.1 mm increases the reach for hard-to-access areas. The lifting time of 40 s and the lowering time of 54 s determine the cycle for recurring up and down movements. The 24-V electrical system with a battery capacity of 310 Ah supplies the hydraulics and the drive.

Within the range of aerial work platforms, this model positions itself through its specific combination of compactness and electric drive. It is aimed at applications where surface cleanliness and noise levels are the primary focus. The technical data define the scope of use for light to medium lifting tasks in halls, warehouses, or sales areas.

Technical data

Dimensions and weights

Length2,800 mmcorrect
Width1,200 mmcorrect
Ground clearance120.1 mmcorrect
Unladen weight2,840 kgcorrect
Platform length2,700 mmcorrect
Platform width1,200.1 mmcorrect

Drivetrain and chassis

Tyre size16.5x11.25correct
Tyre typeSolid, Non-markingcorrect
Top speed3.5 km/hcorrect
Turning radius2,750 mmcorrect

Working data

Lift time40 scorrect
Lowering time54 scorrect
Platform extension1,200.1 mmcorrect
Platform capacity320 kgcorrect

Electrical data

Battery capacity310 Ahcorrect

Other data

System voltage24 Vcorrect

Frequently asked questions

How much does the Manitou 120XEL weigh?

The unladen weight is 2,840 kg.

What are the dimensions of the Manitou 120XEL?

2,800 mm × 1,200 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
