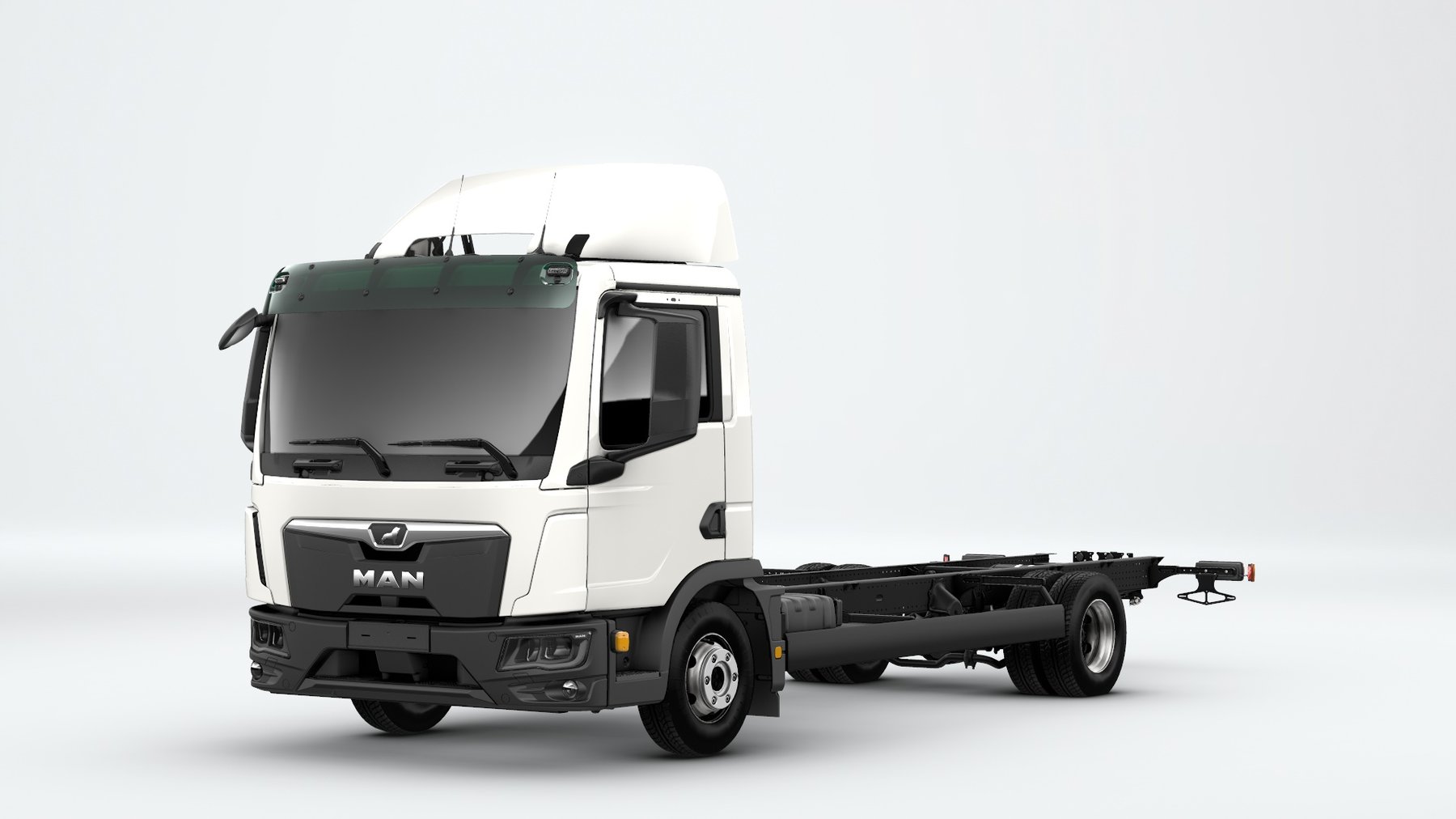

MAN TGL 8.250

Built: 2014 · Series: TGL

More machines from model year 2014

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The MAN TGL 8.250 is a model in the TGL series. Production: 2014. The engine delivers 176 kW, has 6 cylinders, with a displacement of 6,871 cm³. The vehicle is 7,350 mm long and 2,550 mm wide. The unladen weight is 5,180 kg. The gross vehicle weight is 8,800 kg. The gearbox offers 6 gears. The TGL series covers 187 models. Rated output within it ranges from 110 to 184 kW; the TGL 8.250 sits at the top of that range with 176 kW. Its immediate neighbours are the TGL 8.240 below it with 175 kW and the TGL 12.250 above it with 184 kW. Unladen weight within it ranges from 3,638 to 10,855 kg; here the TGL 8.250 sits in the lower part of that range with 5,180 kg. 5237 MAN models across 68 series are on record.

MAN TGL — the number before the dot is weight, after it power: a light distribution chassis from 7.5 to around 12 tonnes with four- and six-cylinder diesel engines of the D08 family

A MAN TGL 12.250 is rated at 12 tonnes and delivers 250 hp. A 7.150 means 7.5 tonnes and 150 hp; a 12.180 carries the same 12 tonnes with 180 hp. The system is consistent: gross vehicle weight before the dot, engine output after it. Comparing two TGLs, you can see at a glance whether you are looking at the same vehicle with a different engine or at another weight class.

Read on 4 more paragraphs

The TGL is MAN's light range: distribution work in cities and regions, plus lighter construction duty. Together with the larger TGM it covers roughly 7.5 to 26 tonnes. The engines come from the D08 family; the four-cylinder units displace 4.58 litres and produce 150 to 220 hp depending on version.

The series has a long production run behind it. The 12.180 was built from 2005 to 2017; the 12.250 is a more recent version. For the used market that means the same type designation can cover vehicles spanning more than a decade — emissions stage and equipment differ accordingly.

When comparing two offers it is therefore worth looking less at the type number than at the year and emissions standard. The number tells you how heavy and how strong; it says nothing about which generation stands before you.

With gross vehicle weights from 7,300 to 12,090 kg, the TGL spans from EU class N2 (3.5 to 12 t) just into class N3; depending on version, this requires a category C1 or C driving licence, plus a tachograph and driving and rest times in commercial traffic. Early model years of the D08 engines met the Euro 3 standard, later versions the Euro 5 standard with SCR catalysis and AdBlue dosing.

Sources: SpecCodex register, model data: MAN TGL

Technical data

Engine

Power176 kWcorrect
Cylinders6correct
Displacement6,871 cm³correct

Dimensions and weights

Length7,350 mmcorrect
Width2,550 mmcorrect
Unladen weight5,180 kgcorrect
Gross vehicle weight8,800 kgcorrect

Drivetrain and chassis

Gears6correct

Where this model stands

Power-to-weight ratio: 34 kW/t (176 kW / 5.2 t)

Stronger than 24% of the trucks in the register — out of 25,241 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the MAN TGL 8.250 have?

The MAN TGL 8.250 delivers 176 kW.

How much does the MAN TGL 8.250 weigh?

The unladen weight is 5,180 kg.

What is the gross vehicle weight of the MAN TGL 8.250?

8,800 kg.

What engine does the MAN TGL 8.250 have?

6 cylinders, 6,871 cm³ displacement.

What are the dimensions of the MAN TGL 8.250?

7,350 mm × 2,550 mm.

When was the MAN TGL 8.250 built?

Production years: 2014.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
