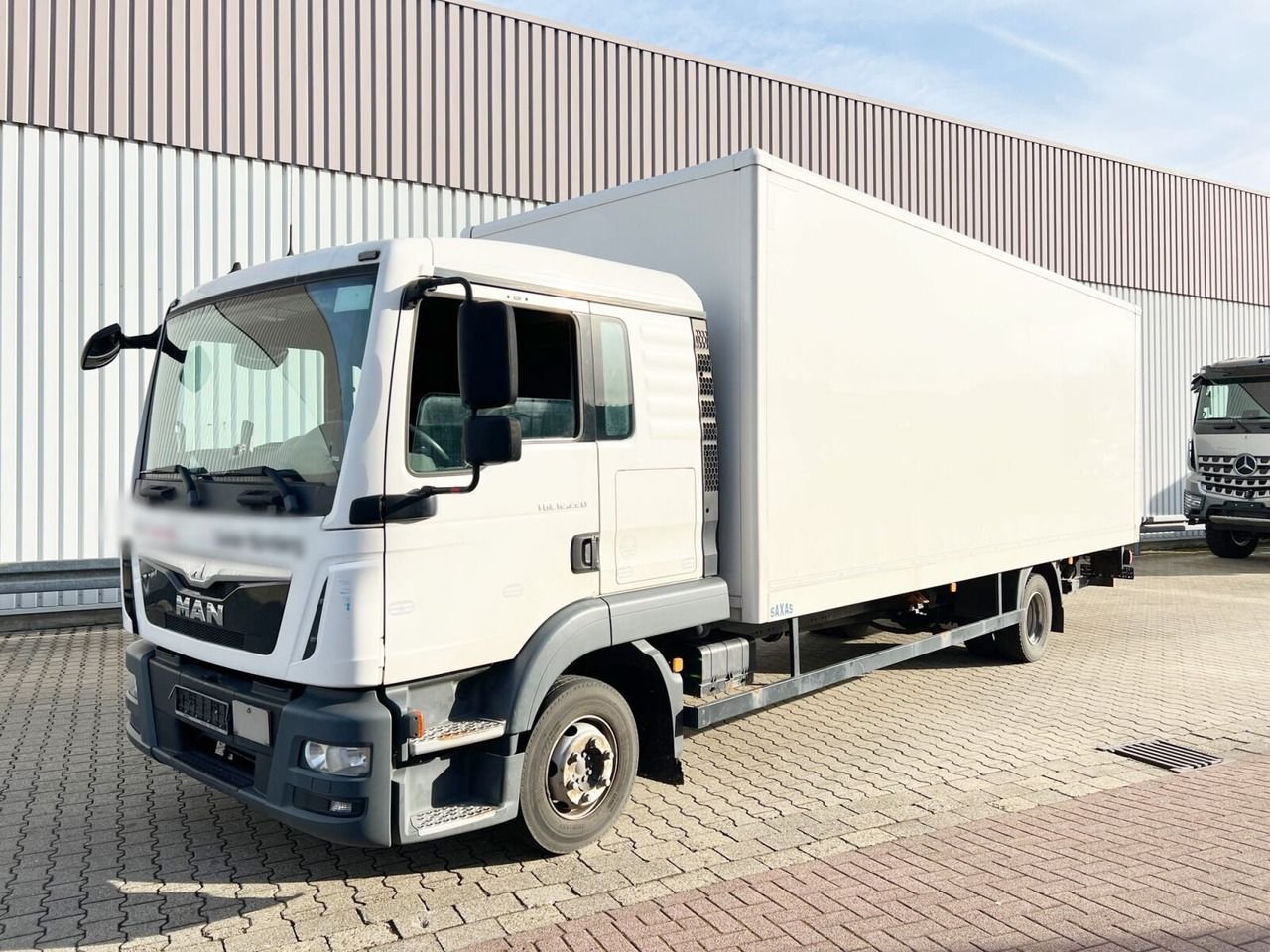

MAN TGL 12.220

Built: 2015-2022 · Series: TGL

More machines from model year 2015

Source: truck1.eu

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The MAN TGL 12.220 is a model in the TGL series. Production: 2015-2022. The engine delivers 162 kW, has 6 cylinders, with a displacement of 4,580 cm³. The vehicle is 9,120 mm long and 2,600 mm wide. The unladen weight is 8,075 kg. The wheelbase measures 4,860 mm. Top speed is 90 km/h. The gross vehicle weight is 12,000 kg. The vehicle runs on 6 wheels. The TGL series covers 187 models. Rated output within it ranges from 110 to 184 kW; the TGL 12.220 sits in the upper part of that range with 162 kW. Its immediate neighbours are the 8.210 4X2 BB below it with 151 kW and the TGL 8.240 above it with 175 kW. Unladen weight within it ranges from 3,638 to 10,855 kg; here the TGL 12.220 sits in the upper part of that range with 8,075 kg. 5237 MAN models across 68 series are on record.

MAN TGL — the number before the dot is weight, after it power: a light distribution chassis from 7.5 to around 12 tonnes with four- and six-cylinder diesel engines of the D08 family

A MAN TGL 12.250 is rated at 12 tonnes and delivers 250 hp. A 7.150 means 7.5 tonnes and 150 hp; a 12.180 carries the same 12 tonnes with 180 hp. The system is consistent: gross vehicle weight before the dot, engine output after it. Comparing two TGLs, you can see at a glance whether you are looking at the same vehicle with a different engine or at another weight class.

Read on 4 more paragraphs

The TGL is MAN's light range: distribution work in cities and regions, plus lighter construction duty. Together with the larger TGM it covers roughly 7.5 to 26 tonnes. The engines come from the D08 family; the four-cylinder units displace 4.58 litres and produce 150 to 220 hp depending on version.

The series has a long production run behind it. The 12.180 was built from 2005 to 2017; the 12.250 is a more recent version. For the used market that means the same type designation can cover vehicles spanning more than a decade — emissions stage and equipment differ accordingly.

When comparing two offers it is therefore worth looking less at the type number than at the year and emissions standard. The number tells you how heavy and how strong; it says nothing about which generation stands before you.

With gross vehicle weights from 7,300 to 12,090 kg, the TGL spans from EU class N2 (3.5 to 12 t) just into class N3; depending on version, this requires a category C1 or C driving licence, plus a tachograph and driving and rest times in commercial traffic. Early model years of the D08 engines met the Euro 3 standard, later versions the Euro 5 standard with SCR catalysis and AdBlue dosing.

Sources: SpecCodex register, model data: MAN TGL

Technical data

Engine

Power162 kWcorrect
Cylinders6correct
Displacement4,580 cm³correct

Dimensions and weights

Length9,120 mmcorrect
Width2,600 mmcorrect
Wheelbase4,860 mmcorrect
Unladen weight8,075 kgcorrect
Gross vehicle weight12,000 kgcorrect

Drivetrain and chassis

Wheels6correct
Top speed90 km/hcorrect

Where this model stands

Power-to-weight ratio: 20.1 kW/t (162 kW / 8.1 t)

Stronger than 20% of the trucks in the register — out of 25,242 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the MAN TGL 12.220 have?

The MAN TGL 12.220 delivers 162 kW.

How much does the MAN TGL 12.220 weigh?

The unladen weight is 8,075 kg.

What is the gross vehicle weight of the MAN TGL 12.220?

12,000 kg.

What engine does the MAN TGL 12.220 have?

6 cylinders, 4,580 cm³ displacement.

How fast does the MAN TGL 12.220 go?

Top speed is 90 km/h.

What are the dimensions of the MAN TGL 12.220?

9,120 mm × 2,600 mm.

When was the MAN TGL 12.220 built?

Production years: 2015-2022.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
