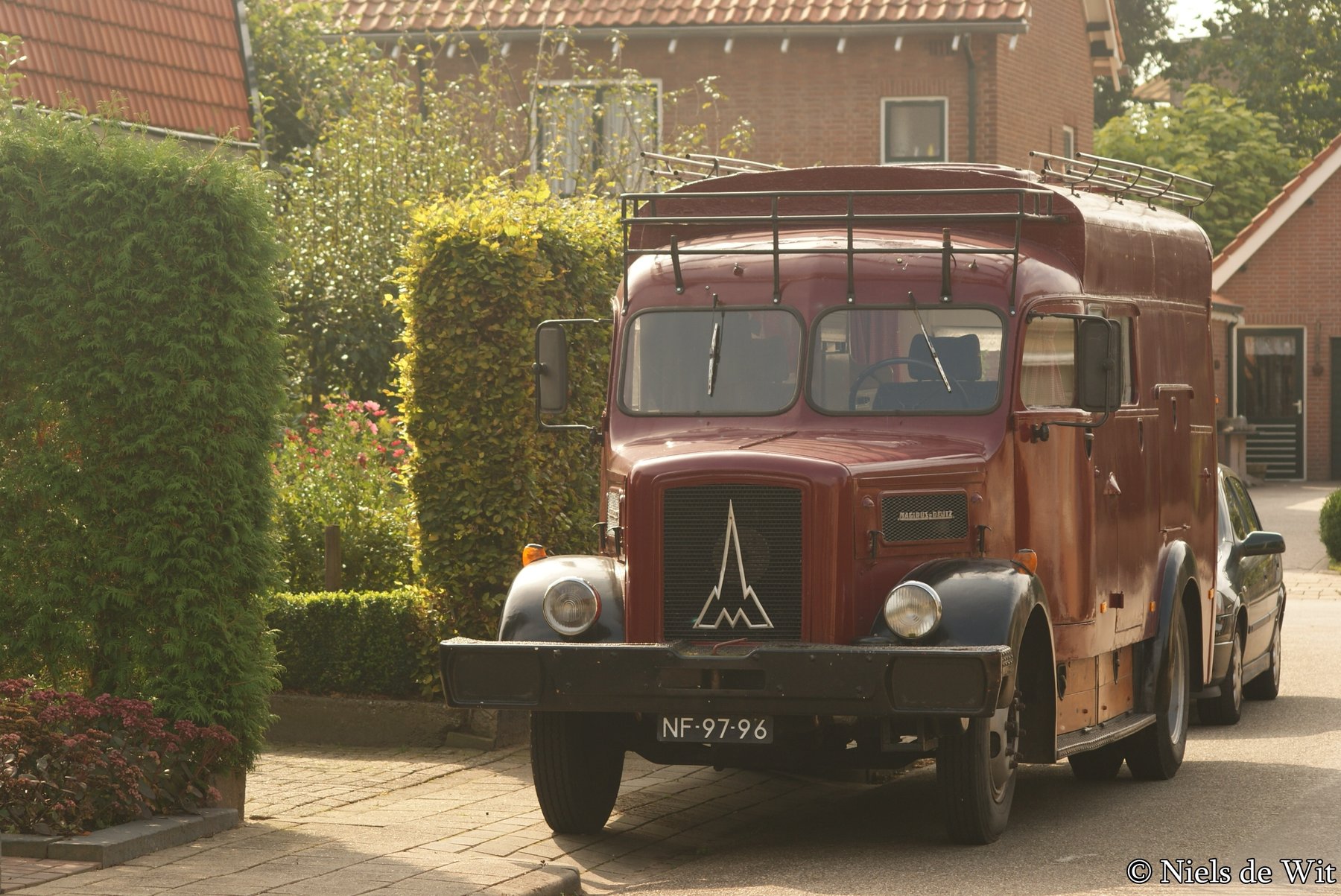

Magirus S 3500
Built: 1952 · Series: Other models
More machines from model year 1952
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Magirus – other models: the collective page of trucks outside the named ranges, four- to eight-cylinder diesel engines, some air-cooled from Deutz, 3 to 20.5 tonnes gross vehicle weight
This page gathers trucks of the Magirus marque that the register could not assign to a named range. Magirus traces back to the ladder and fire-equipment maker founded in Ulm in 1864 by Conrad Dietrich Magirus, which grew into a commercial-vehicle builder and merged with the engine maker Klöckner-Humboldt-Deutz (KHD) in the 1930s to form Magirus-Deutz. Many models were marked by Deutz's air-cooled diesel engines, shown by the "D" in the type designation; in 1975 Magirus became part of today's Iveco group. Models such as the S 3500 and S 4500 represent the mid-range series here, and designations with the "6X6" suffix the off-road versions with three driven axles.
Read on 3 more paragraphs
The register lists 13 versions here with four- to eight-cylinder engines, unladen weights from 3,020 to 15,380 kg, gross vehicle weights from 3,500 to 20,500 kg, lengths from 6,000 to 7,800 mm and widths from 1,950 to 2,520 mm.
Magirus-Deutz trucks shaped the West German commercial-vehicle market and many cities' fire-brigade fleets for decades, competing with Mercedes-Benz, MAN and Henschel; the off-road 6x6 versions also served the Bundeswehr and the construction industry.
When buying used, check the cooling fans and cylinder heads on the air-cooled Deutz engines, corrosion on the cab and frame generally, the condition of the gearbox and transfer case on the 6x6 versions, and the brakes; spare parts today mostly run through Iveco as the legal successor and specialist vintage-vehicle dealers.
Sources: SpecCodex register, model data: Magirus (weitere Modelle)
Technical data
Engine
| Cylinders | 4correct |
|---|---|
| Displacement | 5,322 cm³correct |
Dimensions and weights
| Length | 6,600 mmcorrect |
|---|---|
| Width | 2,300 mmcorrect |
| Wheelbase | 3,700 mmcorrect |
| Unladen weight | 4,073 kgcorrect |
| Gross vehicle weight | 7,800 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|
Frequently asked questions
How much does the Magirus S 3500 weigh?
The unladen weight is 4,073 kg.
What is the gross vehicle weight of the Magirus S 3500?
7,800 kg.
What engine does the Magirus S 3500 have?
4 cylinders, 5,322 cm³ displacement.
What are the dimensions of the Magirus S 3500?
6,600 mm × 2,300 mm.
When was the Magirus S 3500 built?
Production years: 1952.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
