M1 Engineering AL/081/08
Built: 2012 · Series: Other models
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
M1 Engineering – other models: the collective page of trailers outside the named ranges, the Cryogenic Alu Road Tanker and the AL series, unladen weights from 7,620 to 8,520 kg, gross weights from 35,000 to 42,000 kg

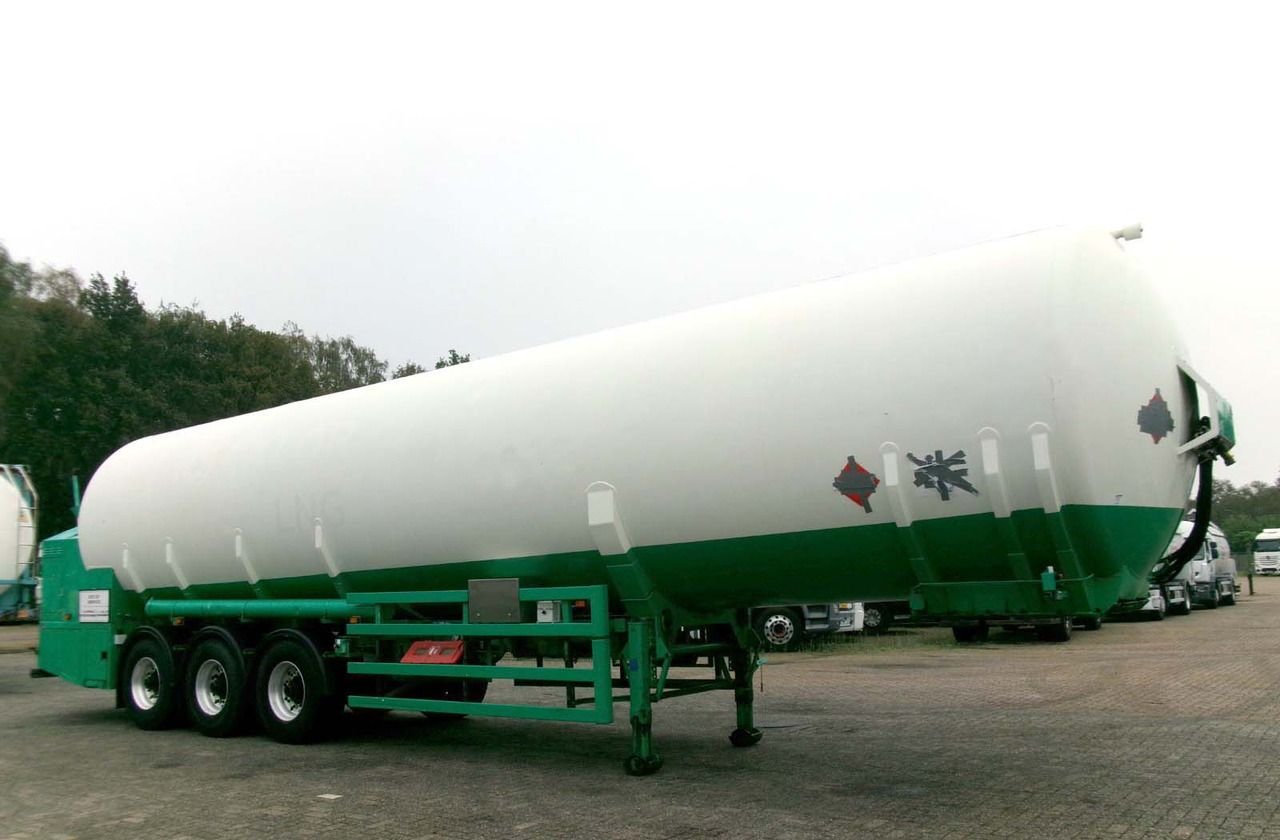

This page gathers the M1 Engineering trailers the register could not assign to a named range. The model name Cryogenic Alu Road Tanker states the build directly: an aluminium tank semi-trailer for deeply cooled liquefied gases, as carried in industrial gas supply; the AL/081/08 and AL/169/16 types belong to the same aluminium tank range.
Read on 3 more paragraphs
The register lists here 3 versions with unladen weights from 7,620 to 8,520 kg, gross weights from 35,000 to 42,000 kg, lengths from 11,500 to 13,110 mm and widths from 2,530 to 2,550 mm.
Cryogenic tank semi-trailers supply industrial plants, hospitals and building sites with liquid oxygen, liquid nitrogen or liquid argon; the aluminium build lowers unladen weight compared with steel tanks and so raises the permitted payload at the same combination gross weight. Operating such tanks requires ADR approval and trained drivers, since this counts as the carriage of dangerous goods.
On a used cryogenic tanker, the test history of the pressure vessel and safety valves, the condition of the vacuum or perlite insulation, the tightness of fittings and valves, and the chassis, axles and brakes all count above all; missing tank test documentation is a reason to walk away. The ADR markings and the paperwork for the carriage of dangerous goods should also be checked before buying.
Sources: SpecCodex register, model data: M1 Engineering (weitere Modelle)
Technical data
Dimensions and weights
| Length | 11,550 mmcorrect |
|---|---|
| Width | 2,530 mmcorrect |
| Wheelbase | 8,050 mmcorrect |
| Unladen weight | 8,300 kgcorrect |
| Gross vehicle weight | 35,000 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the M1 Engineering AL/081/08 weigh?
The unladen weight is 8,300 kg.
What is the gross vehicle weight of the M1 Engineering AL/081/08?
35,000 kg.
Up to what speed is the M1 Engineering AL/081/08 approved?
Approved up to 100 km/h.
What are the dimensions of the M1 Engineering AL/081/08?
11,550 mm × 2,530 mm.
When was the M1 Engineering AL/081/08 built?
Production years: 2012.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
