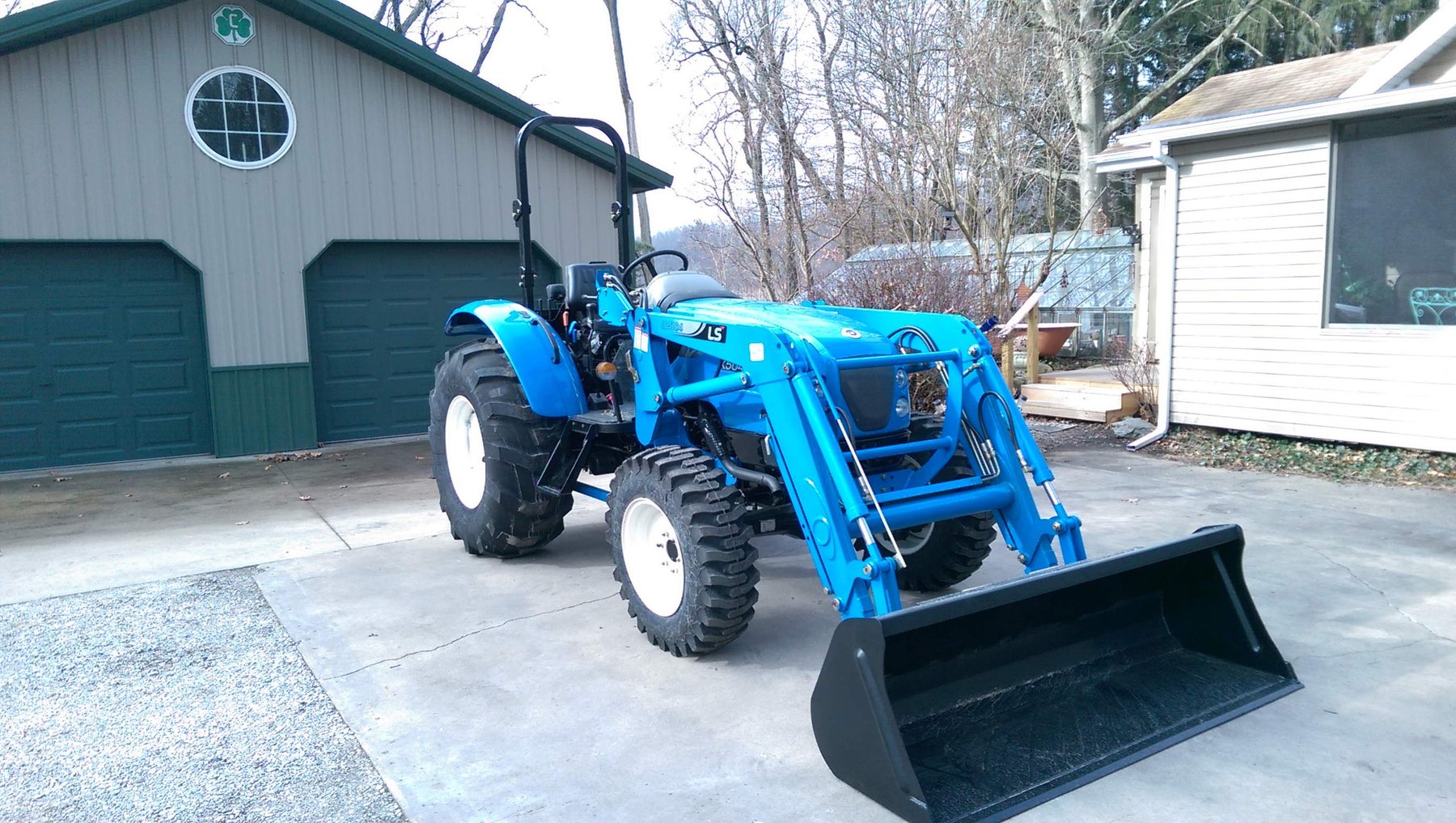

LS K5047
Built: 2013-2013 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The LS K5047 is a tractor built in 2013. It is powered by a four-cylinder engine producing 35 kW. Rated power is reached at 2,600 rpm.
Power is transmitted through a Sliding gear shifting gearbox, drive type: MFWD.
It runs on diesel; the engine is water-cooled. Within the range, rated power spans from 17 to 290 kW; with 35 kW, the K5047 sits in the mid-field. Directly alongside are the XR4046 with 34 kW below and the R53 Reinnovation with 40 kW above.
Technical data
Engine
| Engine make | LScorrect |
|---|---|
| Engine model | S4QLcorrect |
| Fuel | dieselcorrect |
| Power | 47 hp (35 kW)correct |
| Rated speed | 2.6 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 152.9 cu incorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 136.3 in (3 462 mm)correct |
|---|---|
| Width | 70 in (1 778 mm)correct |
| Height | 104.6 in (2656,8 mm)correct |
| Wheelbase | 81.5 in (2070,1 mm)correct |
| Unladen weight | 4,392 lbs (1992,2 kg)correct |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|---|
| Gearbox | sliding-gear transmission shiftingcorrect |
| Forward gears | 8correct |
| Reverse gears | 4correct |
| Clutch | dual stage clutchcorrect |
Working data
| Lifting capacity | 3,526 lbs (1599,4 kg)correct |
|---|---|
| Fuel tank capacity | 22.5 galcorrect |
| PTO speed | 540correct |
| Linkage category | Cat Icorrect |
Origin and approval
| Plant | South Koreacorrect |
|---|
Frequently asked questions
How much power does the LS K5047 have?
The LS K5047 delivers 47 hp.
What engine does the LS K5047 have?
4 cylinders, Diesel.
When was the LS K5047 built?
Production years: 2013.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
