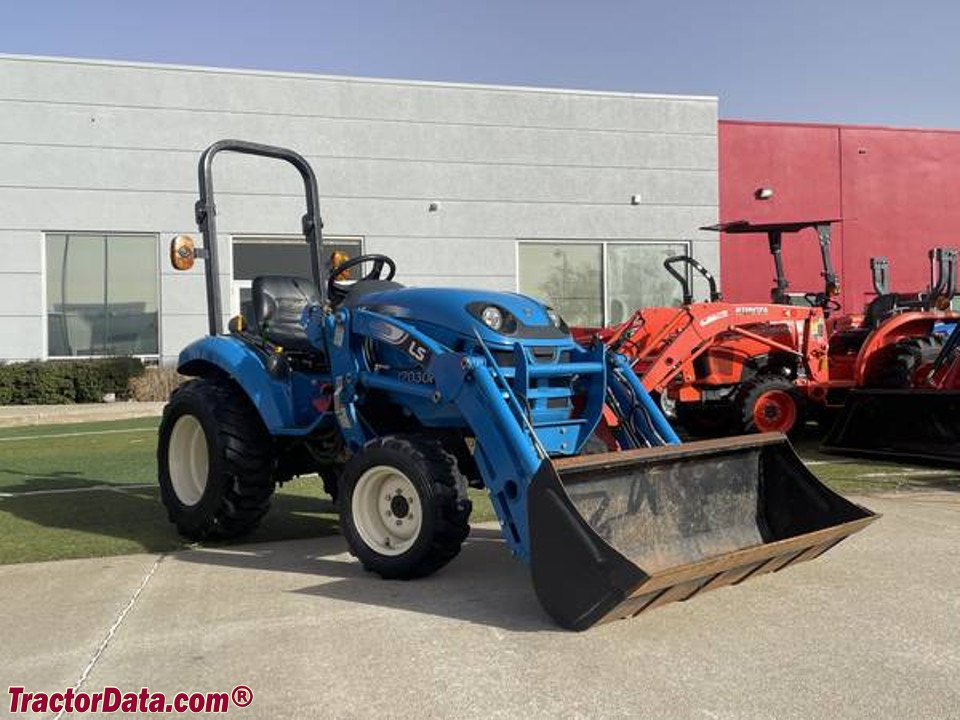

LS J2020H
Built: 2012-2012 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Built in 2012, the LS J2020H is a tractor from LS. The three-cylinder engine produces 17 kW. Rated speed is 2,700 rpm.
Gearbox: hydrostatic; drive type: MFWD.
It runs on diesel; the engine is water-cooled. Within the range, rated power spans from 17 to 290 kW; with 17 kW, the J2020H sits at the bottom end. The next one up is the J2030H with 20 kW.
Technical data
Engine
| Engine make | Mitsubishicorrect |
|---|---|
| Engine model | S3Lcorrect |
| Fuel | dieselcorrect |
| Power | 23 hp (17 kW)correct |
| Rated speed | 2.7 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 68.7 cu incorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 103 in (2616,2 mm)correct |
|---|---|
| Width | 44.9 in (1140,5 mm)correct |
| Height | 85 in (2 159 mm)correct |
| Wheelbase | 59 in (1498,6 mm)correct |
| Unladen weight | 1,565 lbs (709,9 kg)correct |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|---|
| Gearbox | hydrostatic transmissioncorrect |
| Forward gears | 2correct |
Working data
| Fuel tank capacity | 6.6 galcorrect |
|---|---|
| PTO speed | 540/2000correct |
Origin and approval
| Plant | South Koreacorrect |
|---|
Frequently asked questions
How much power does the LS J2020H have?
The LS J2020H delivers 23 hp.
What engine does the LS J2020H have?
3 cylinders, Diesel.
When was the LS J2020H built?
Production years: 2012.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
