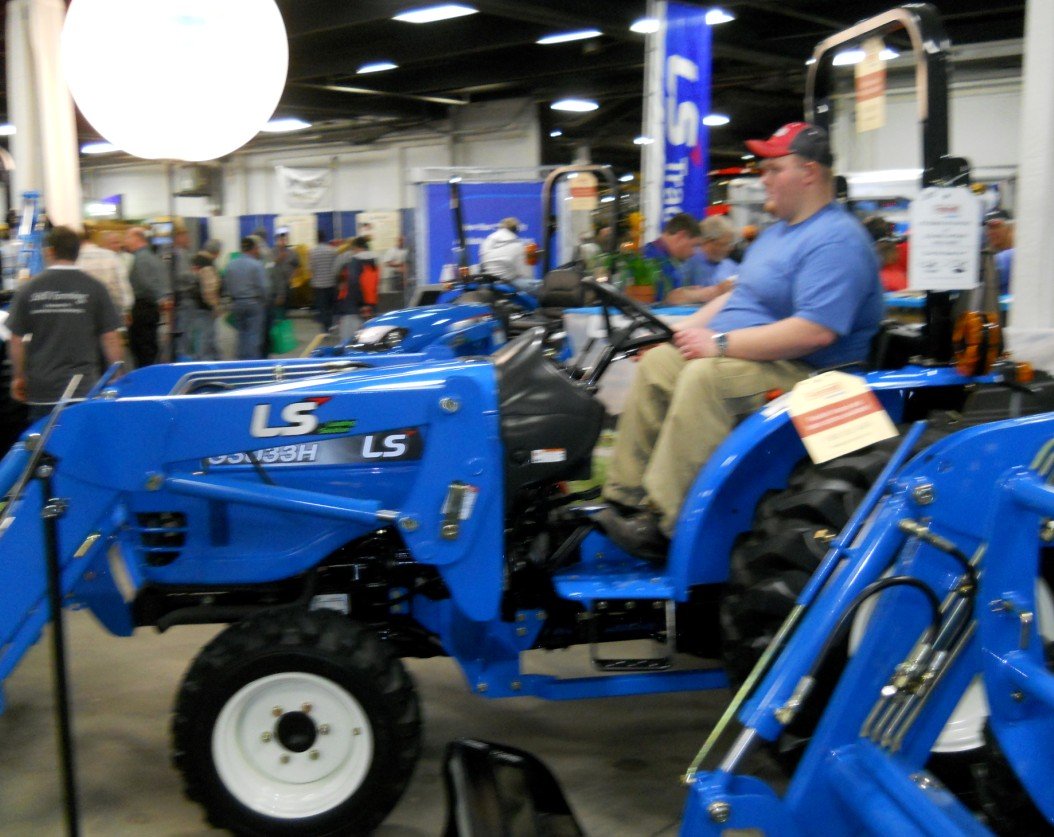

LS G3033H
Built: 2011-2011 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The LS G3033H is a tractor built in 2011. The three-cylinder engine produces 25 kW. Rated speed is 2,600 rpm.
Power is transmitted through a Hydrostatic gearbox, drive type: MFWD.
It runs on diesel; the engine is water-cooled. Within the range, rated power spans from 17 to 290 kW; with 25 kW, the G3033H sits in the lower third. Directly alongside are the S3010 with 22 kW below and the G3038H with 28 kW above.
Technical data
Engine
| Engine make | LScorrect |
|---|---|
| Engine model | L3BLcorrect |
| Fuel | dieselcorrect |
| Power | 33 hp (25 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 116.9 cu incorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 117.6 in (2 987 mm)correct |
|---|---|
| Width | 41 in (1041,4 mm)correct |
| Height | 90.2 in (2291,1 mm)correct |
| Wheelbase | 65.9 in (1673,9 mm)correct |
| Unladen weight | 2,590 lbs (1174,8 kg)correct |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|---|
| Gearbox | hydrostatic transmissioncorrect |
| Forward gears | 3correct |
Working data
| Lifting capacity | 1,808 lbs (820,1 kg)correct |
|---|---|
| Fuel tank capacity | 7.4 galcorrect |
| PTO speed | 540correct |
| Linkage category | Cat Icorrect |
Origin and approval
| Plant | South Koreacorrect |
|---|
Frequently asked questions
How much power does the LS G3033H have?
The LS G3033H delivers 33 hp.
What engine does the LS G3033H have?
3 cylinders, Diesel.
When was the LS G3033H built?
Production years: 2011.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 25 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
