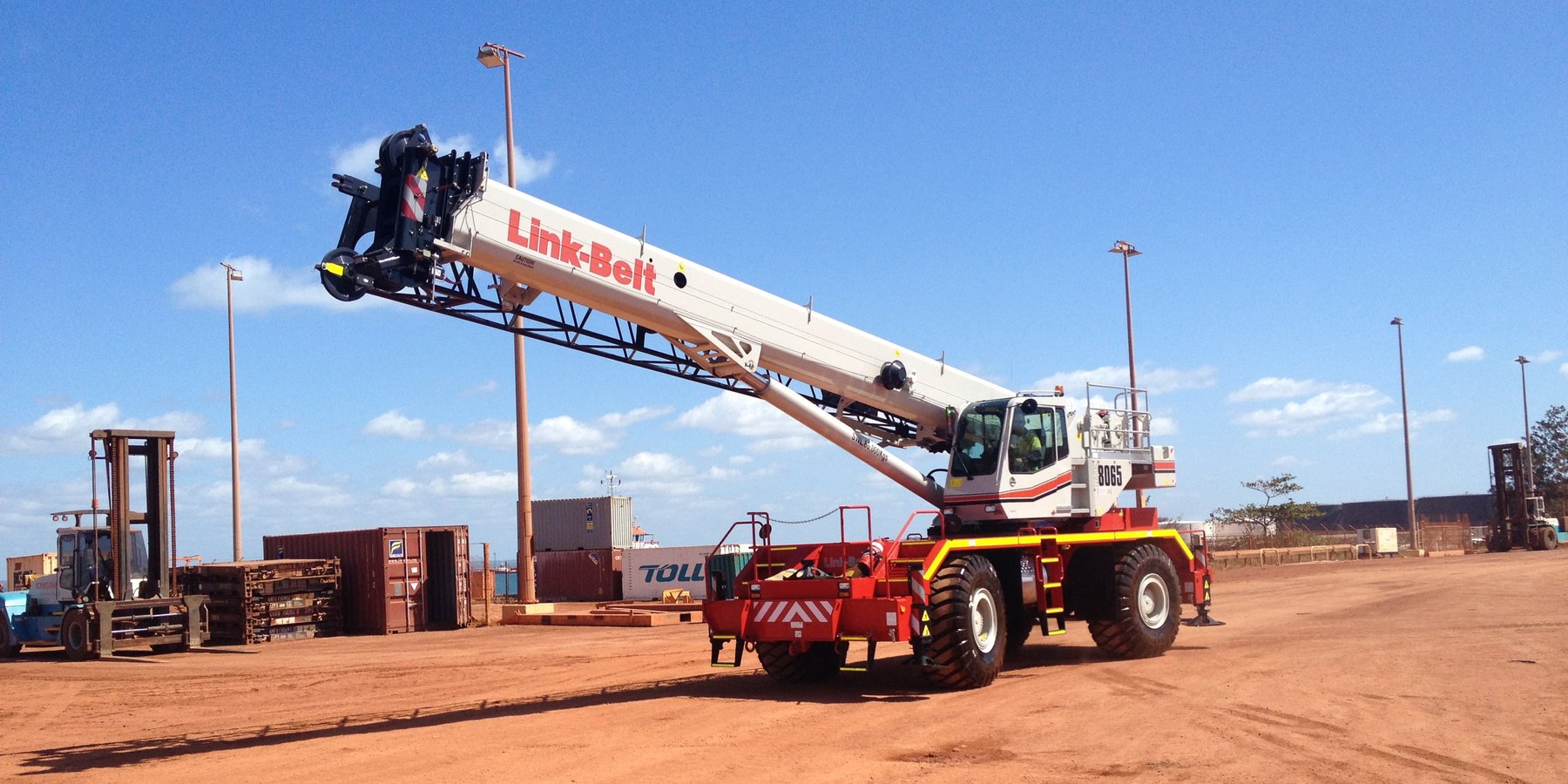

Link-Belt RTC8065 Series II – specifications
Series: Link-Belt Rough Terrain Crane
With the RTC8065 Series II, Link-Belt offers a model from the Link-Belt Rough Terrain Crane series. The engine delivers 273.7 hp (201.3 kW), has 6 cylinders, with a displacement of 6,700.7 cm³. The engine comes from Cummins QSB. Torque is 990 Nm. Rated speed is 2,000 rpm. The unladen weight is 38,506 kg. The wheelbase measures 4,450.1 mm. Ground clearance is 402.3 mm. The tank holds 283.9 litres. The gearbox has 6 forward gears. There are also 6 reverse gears. Maximum torque is reached at 1,500 rpm. The hydraulic tank holds 579.2 litres. The oil fill is 17.4 litres. The electrical system runs on 12 V. The engine fitted is the C6,6. Tyre size: 26,5x25. The Link-Belt Rough Terrain Crane series covers 32 models. Rated output within it ranges from 111.5 to 349.8 hp; the RTC8065 Series II sits in the upper part of that range with 273.7 hp. Its immediate neighbours are the RTC8060 below it with 228.1 hp and the RTC80100 Series II above it with 334.6 hp. Unladen weight within it ranges from 5,443.1 to 64,954 kg; here the RTC8065 Series II sits in the middle of that range with 38,506 kg. 157 Link-Belt models across 11 series are on record.
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Link-Belt Rough Terrain Crane — from the 75 RT to the RTC8090
"Link-Belt Rough Terrain Crane" bundles the manufacturer's whole line of terrain-capable compact cranes in SpecCodex — over 32 recorded models spanning 82 to 257 kW and roughly 5.4 to almost 65 tonnes of working weight. What stands out in the samples — 75 RT, 110 RT, HSP-15, HSP-18, HSP-22, RTC8022, RTC8030, RTC8035 — is that the naming patterns span three different decades.
Read on 4 more paragraphs
The oldest logic sits in "75 RT" and "110 RT": a tonnage figure followed by the Rough Terrain abbreviation, as Link-Belt used it in the 1970s. The 1980s brought the HSP line (Hydraulic Self-Propelled) with the "Eighty Series", running from HSP-8015 to HSP-8050 — again, the number roughly tracks the capacity class.
Today's RTC-8000 series continues the same principle: the RTC80 prefix is followed by the tonnage class, so an RTC8090 is a 90-ton-class crane. Suffixes such as "Series II" mark technical revisions within the same class.
For a used HSP or RT model, check boom wear and the telescoping hydraulic hoses closely — on 1970s/80s-built units, that's usually the costliest repair point. On the newer RTC8000 models, winch hours and rope condition matter most.
In short: reading the model name alone usually tells you both the capacity class and roughly the decade of manufacture, whether it's prefixed RT, HSP or RTC.
Sources: SpecCodex register, model data: Link-Belt Rough Terrain Crane, — Link-Belt Cranes, Firmengeschichte (linkbelt.com), — FMC Link-Belt Eighty Series HSP-Prospekt (Originalbroschüre, 1980er), — Link-Belt Rough Terrain Crane Übersicht (RitchieSpecs)
Technical data
Engine
| Engine make | Cummins QSBcorrect |
|---|---|
| Engine model | C6.6correct |
| Power | 273.7 hp (201.3 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Torque | 990 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,700.7 cm³correct |
| Engine oil capacity | 17.4 lcorrect |
Dimensions and weights
| Wheelbase | 4,450.1 mmcorrect |
|---|---|
| Ground clearance | 402.3 mmcorrect |
| Unladen weight | 38,506 kgcorrect |
Drivetrain and chassis
| Gearbox type | powershift transmissioncorrect |
|---|---|
| Forward gears | 6correct |
| Reverse gears | 6correct |
| Tyre size | 26.5x25correct |
Working data
| Hydraulic oil capacity | 579.2 lcorrect |
|---|---|
| Fuel tank capacity | 283.9 lcorrect |
Other data
| System voltage | 12 Vcorrect |
|---|
Frequently asked questions
Area: Machines › Construction machinery
Engine: Cummins QSB C6.6
More machines with this engine (Cummins QSB C6.6, 15)
Where this model stands
Power-to-weight ratio: 5.2 kW/t (201 kW / 38.5 t)
Stronger than 39% of the mobile & rough terrain cranes in the register — out of 723 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
