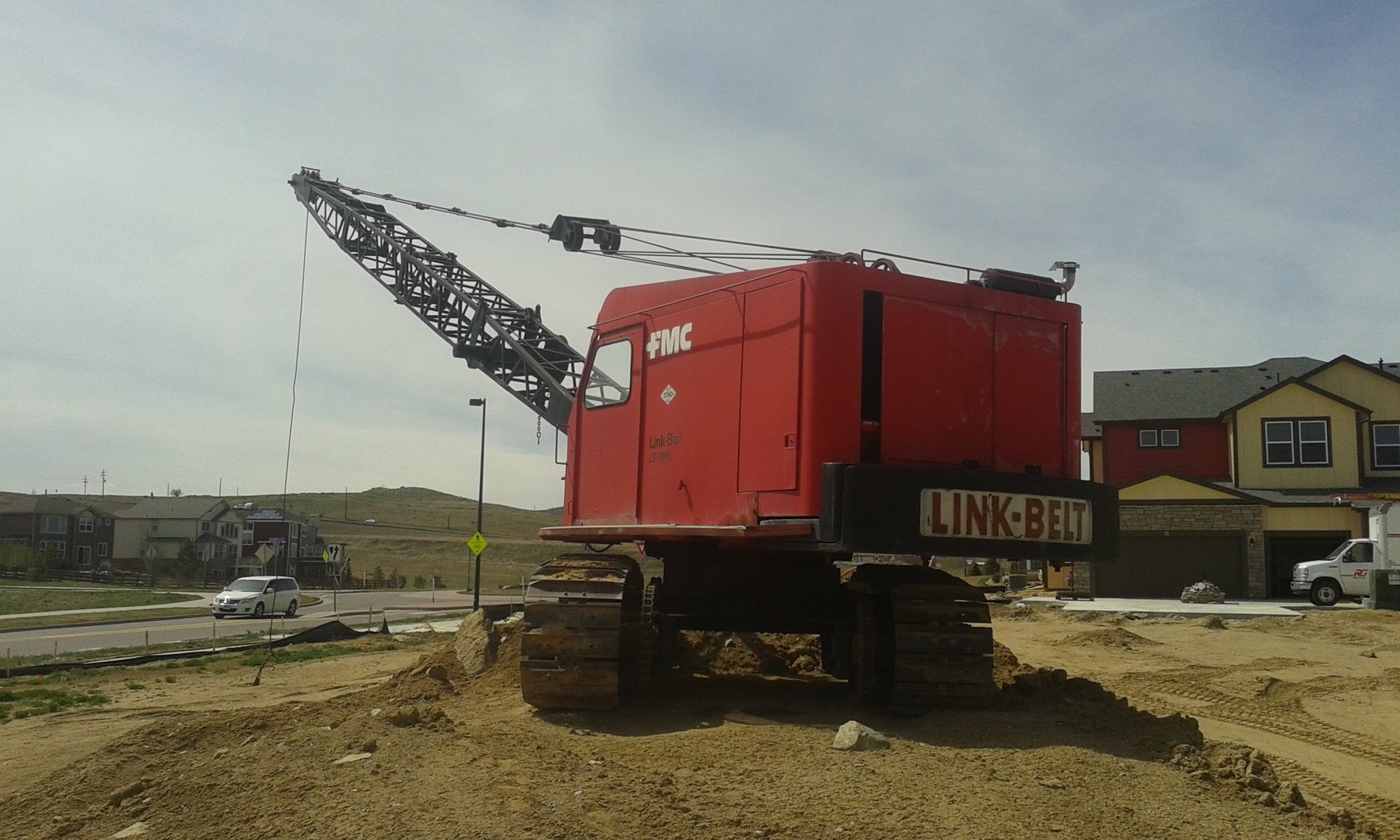

Link-Belt LS-78PL

Series: Link-Belt Crawler Crane

Source: https://commons.wikimedia.org/w/index.php?curid=48117970 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The LS-78PL from Link-Belt is part of the Link-Belt Crawler Crane series. The engine delivers 62.6 kW, has 3 cylinders, with a displacement of 3,485.5 cm³. Torque is 367.4 Nm. Rated speed is 1,815 rpm. The unladen weight is 25,202 kg. Ground clearance is 579.1 mm. Top speed is 2.9 km/h. The tank holds 162.8 litres. Maximum torque is reached at 1,200 rpm. The electrical system runs on 12 V. The engine fitted is the GM 3-71N. The Link-Belt Crawler Crane series covers 28 models. Rated output within it ranges from 62.6 to 238.6 kW; the LS-78PL sits at the bottom of that range with 62.6 kW. Its immediate neighbours are the LS-108B above it with 82 kW. 157 Link-Belt models across 10 series are on record. The model is listed under Cranes & access platforms. 12 verified figures from 1 source are on file.

Technical data

Engine

Engine modelGM 3-71Ncorrect
Power62.6 kWcorrect
Rated speed1,815 rpmcorrect
Torque367.4correct
Speed at max. torque1,200 rpmcorrect
Cylinders3correct
Displacement3,485.5 cm³correct

Dimensions and weights

Ground clearance579.1correct
Unladen weight25,202 kgcorrect

Drivetrain and chassis

Top speed2.9 km/hcorrect
System voltage12 Vcorrect

Working data

Fuel tank capacity162.8 lcorrect

Where this model stands

Power-to-weight ratio: 2.5 kW/t (63 kW / 25.2 t)

Stronger than 4% of the crawler cranes in the register — out of 56 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Link-Belt LS-78PL have?

The Link-Belt LS-78PL delivers 62.6 kW.

How much does the Link-Belt LS-78PL weigh?

The unladen weight is 25,202 kg.

What engine does the Link-Belt LS-78PL have?

3 cylinders, 3,486 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
