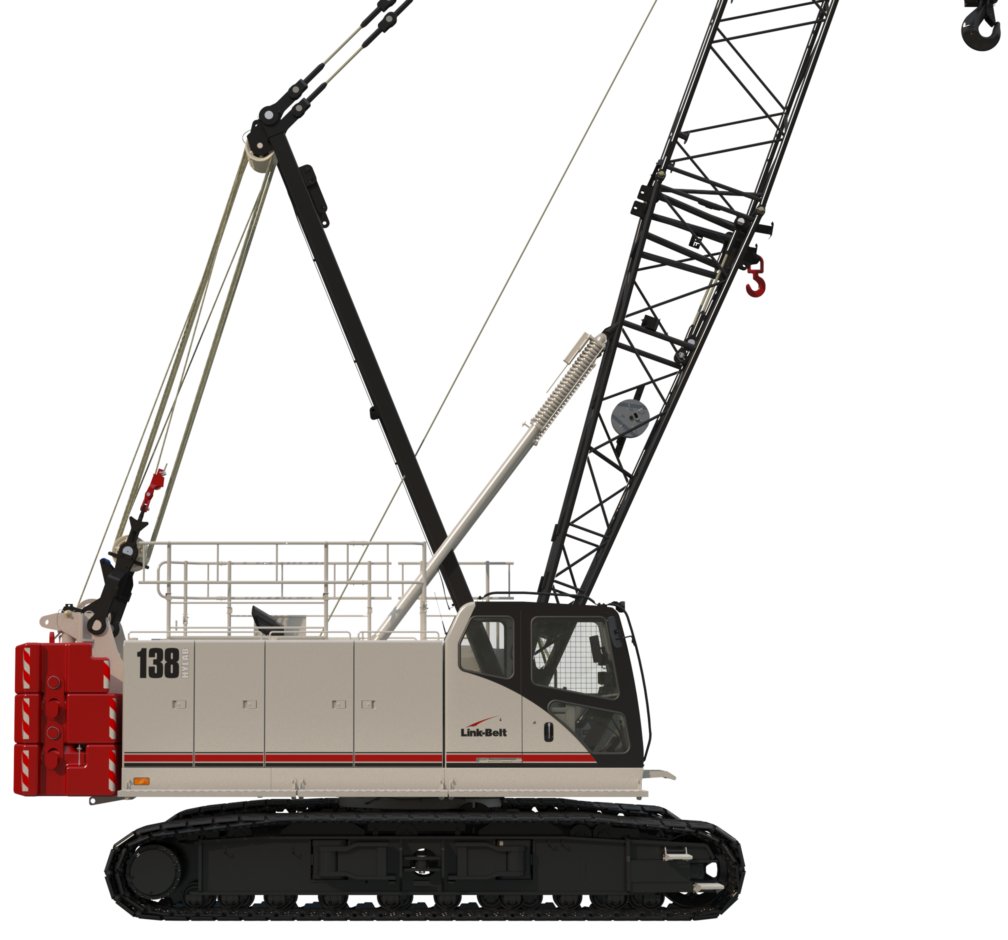

Link-Belt LS-138H

Series: Link-Belt Crawler Crane

Source: https://www.linkbelt.com/cranes/lattice-crawler-cranes/138-h

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Link-Belt Crawler Crane series from Link-Belt includes the LS-138H. The engine delivers 196.1 kW, has 6 cylinders. The engine comes from Isuzu. Torque is 695.5 Nm. Rated speed is 2,100 rpm. Ground clearance is 1,219.2 mm. Top speed is 1.8 km/h. The tank holds 290.3 litres. Maximum torque is reached at 1,400 rpm. The hydraulic tank holds 295.3 litres. The electrical system runs on 24 V. The engine fitted is the 6SA1T. The Link-Belt Crawler Crane series covers 28 models. Rated output within it ranges from 62.6 to 238.6 kW; the LS-138H sits in the upper part of that range with 196.1 kW. Its immediate neighbours are the LS-518 below it with 183.1 kW and the 138 HSL above it with 201.3 kW. 157 Link-Belt models across 10 series are on record. The model is listed under Cranes & access platforms. 12 verified figures from 1 source are on file.

Technical data

Engine

Engine makeIsuzucorrect
Engine model6SA1Tcorrect
Power196.1 kWcorrect
Rated speed2,100 rpmcorrect
Torque695.5correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct

Dimensions and weights

Ground clearance1,219.2correct

Drivetrain and chassis

Top speed1.8 km/hcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity295.3 lcorrect
Fuel tank capacity290.3 lcorrect

Frequently asked questions

How much power does the Link-Belt LS-138H have?

The Link-Belt LS-138H delivers 196 kW.

What engine does the Link-Belt LS-138H have?

6 cylinders.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
