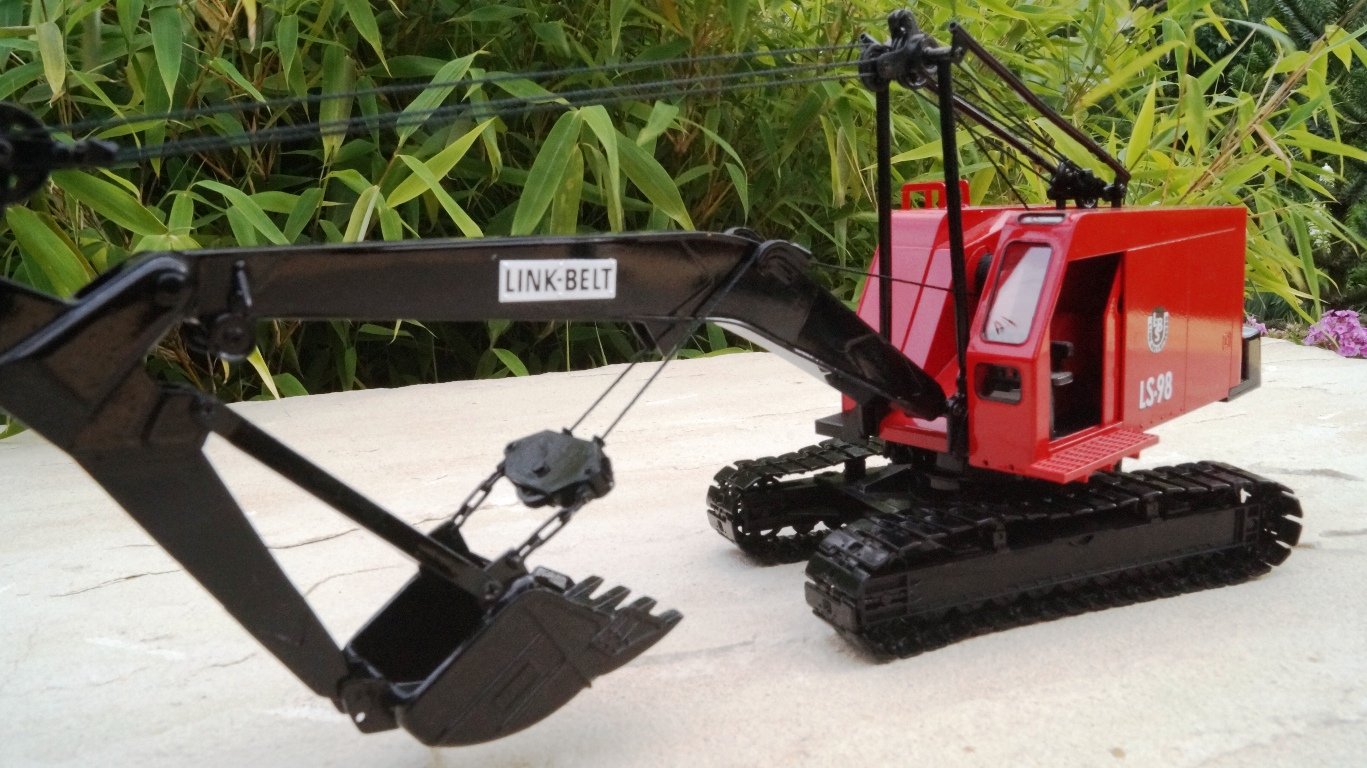

Link-Belt LS-108B

Series: Link-Belt Crawler Crane

Source: https://commons.wikimedia.org/wiki/File:Link-Belt_LS-98.jpg

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Link-Belt LS-108B is a model in the Link-Belt Crawler Crane series. The engine delivers 82 kW, has 4 cylinders, with a displacement of 4,653.9 cm³. Torque is 475.9 Nm. Rated speed is 1,840 rpm. Ground clearance is 944.9 mm. Top speed is 2.7 km/h. The tank holds 227.1 litres. Maximum torque is reached at 1,200 rpm. The electrical system runs on 12 V. The engine fitted is the GM4-71N. The Link-Belt Crawler Crane series covers 28 models. Rated output within it ranges from 62.6 to 238.6 kW; the LS-108B sits at the bottom of that range with 82 kW. Its immediate neighbours are the LS-78PL below it with 62.6 kW and the LS-98PL above it with 83.5 kW. 157 Link-Belt models across 10 series are on record. The model is listed under Cranes & access platforms. 11 verified figures from 1 source are on file.

Technical data

Engine

Engine modelGM4-71Ncorrect
Power82 kWcorrect
Rated speed1,840 rpmcorrect
Torque475.9correct
Speed at max. torque1,200 rpmcorrect
Cylinders4correct
Displacement4,653.9 cm³correct

Dimensions and weights

Ground clearance944.9correct

Drivetrain and chassis

Top speed2.7 km/hcorrect
System voltage12 Vcorrect

Working data

Fuel tank capacity227.1 lcorrect

Frequently asked questions

How much power does the Link-Belt LS-108B have?

The Link-Belt LS-108B delivers 82 kW.

What engine does the Link-Belt LS-108B have?

4 cylinders, 4,654 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
