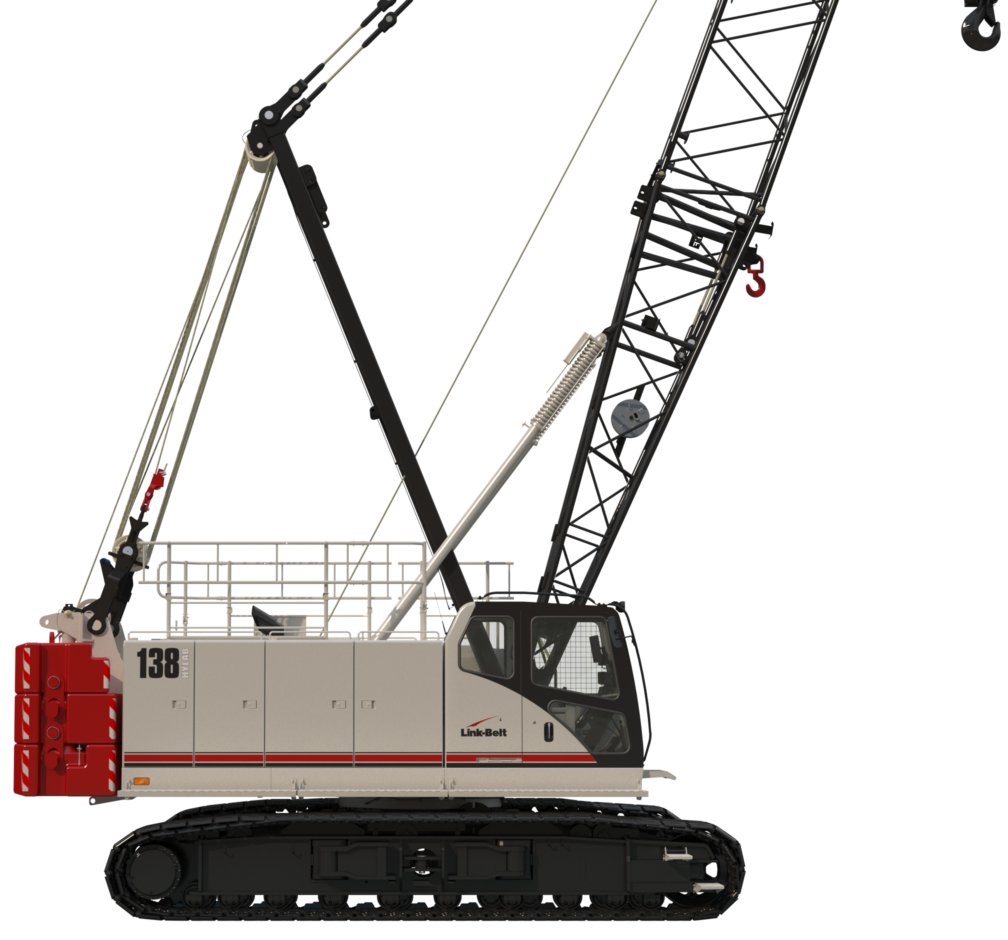

Link-Belt 138 HYLAB5

Series: Link-Belt Crawler Crane

Source: https://www.linkbelt.com/cranes/lattice-crawler-cranes/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Link-Belt 138 HYLAB5 is a model in the Link-Belt Crawler Crane series. The engine delivers 183.6 hp (135 kW), has 6 cylinders, with a displacement of 7,538 cm³. The engine comes from Mitsubishi. Torque is 725.4 Nm. Rated speed is 2,200 rpm. Ground clearance is 396.2 mm. Top speed is 1.6 km/h. Maximum torque is reached at 1,600 rpm. The hydraulic tank holds 200.6 litres. The electrical system runs on 24 V. The engine fitted is the 6D16-TLE2A. The Link-Belt Crawler Crane series covers 28 models. Rated output within it ranges from 183.6 to 324.4 hp; the 138 HYLAB5 sits at the bottom of that range with 183.6 hp. Its immediate neighbours are the TCC-750 above it with 218 hp. 157 Link-Belt models across 10 series are on record. The model is listed under Cranes & access platforms. 13 verified figures from 1 source are on file.

Technical data

Engine

Engine makeMitsubishicorrect
Engine model6D16-TLE2Acorrect
Power183.6 hp (135 kW)correct
Rated speed2,200 rpmcorrect
Torque725.4correct
Speed at max. torque1,600 rpmcorrect
Cylinders6correct
Displacement7,538 cm³correct

Dimensions and weights

Ground clearance396.2correct

Drivetrain and chassis

Top speed1.6 km/hcorrect

Working data

Hydraulic oil capacity200.6 lcorrect

Other data

System voltage24 Vcorrect

Frequently asked questions

How much power does the Link-Belt 138 HYLAB5 have?

The Link-Belt 138 HYLAB5 delivers 184 hp.

What engine does the Link-Belt 138 HYLAB5 have?

6 cylinders, 7,538 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
