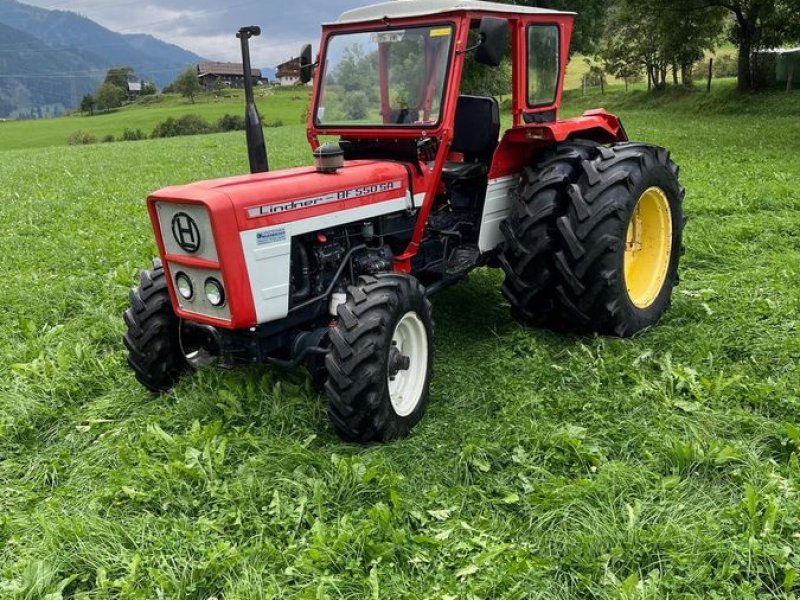

Lindner BF 550 SN / SA

Built: 1973–1976 · Series: S - Serie

More machines from model year 1973

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Lindner BF 550 SN / SA is a model in the S series. Production: 1973–1976. The engine delivers 58 hp, has 4 cylinders, with a displacement of 3,860 cm³. Rated speed is 2,250 rpm. The machine is 3,550 mm long, 1,700 mm wide and 1,880 mm high. The unladen weight is 1,930 kg. The wheelbase measures 2,050 mm. Transmission: 8V / 4R. The engine is water-cooled. Tyres: front 7,50-16 ( SA = 10,5-18 ), rear 13,00-28. The fuel is diesel. Construction: unit construction (no separate frame). The gearbox offers 8 forward gears. There are also 4 reverse gears. The S - Serie series covers 3 models. Rated output within it ranges from 48 to 68 hp; the BF 550 SN / SA sits in the middle of that range with 58 hp. Its immediate neighbours are the BF 450 SN / SA below it with 48 hp and the BF 650 SN / SA above it with 68 hp. Unladen weight within it ranges from 1,620 to 2,650 kg; here the BF 550 SN / SA sits in the lower part of that range with 1,930 kg. 48 Lindner models across 18 series are on record.

Lindner S series – the Bergfreund range BF 450 S, BF 550 S and BF 650 S from Kundl: three- and four-cylinder diesels, 48 to 58 hp, 2,250 to 2,400 rpm

The S series covers at Lindner in Kundl the more powerful Bergfreund types BF 450 S, BF 550 S and BF 650 S, which build on the 50 series but are designed with bigger engines and higher weight for heavier draft work. The SN and SA equipment levels differ in fittings and tyres.

Read on 4 more paragraphs

The register lists here 3 versions with 48 to 58 hp from three- to four-cylinder diesel engines of 2,500 to 3,860 cm³ displacement at rated speeds of 2,250 to 2,400 rpm. Unladen weights range from 1,620 to 2,650 kg, lengths from 3,370 to 3,810 mm, widths from 1,670 to 1,920 mm and heights from 1,350 to 1,880 mm.

With more power than the 50 series, the S series covered larger mountain farms and mixed holdings in the Alpine region, where transport and PTO implements alongside meadow work demanded higher pulling power; Lindner remained specialised in the niche of sloping ground, where competitors such as Fendt or Steyr were less present.

On a used example, clutch and gearbox condition, hydraulic tightness, wear of the brakes, important on sloping ground, and rust on chassis and mudguards count; parts run through Lindner itself and independent farm-machinery workshops.

Unlike the lighter 50 series, the S series relied on water cooling throughout, which dissipates heat more evenly than an air-cooling system under higher continuous load and draft work. Here too, the PTO runs at 540 revolutions per minute for the usual implements of mountain farming. The S series likewise benefits from Lindner's manufacturing in Kundl, still independent today, which eases the supply of maker's own parts.

Sources: SpecCodex register, model data: Lindner S-Serie, Lindner

Technical data

Engine

Fueldieselcorrect
Power58 hpcorrect
Power58 hpcorrect
Rated speed2,250 rpmcorrect
Cylinders4correct
Displacement3,860 cm³correct
Coolingwater-cooledcorrect

Dimensions and weights

Length3,550 mmcorrect
Width1,700 mmcorrect
Height1,880 mmcorrect
Wheelbase2,050 mmcorrect
Unladen weight1,930 kgcorrect

Drivetrain and chassis

Driverear-wheel drivecorrect
Gearbox8V / 4Rcorrect
Forward gears8correct
Reverse gears4correct
Front tyres7, 50-16 ( SA = 10, 5-18 )correct
Rear tyres13, 00-28correct

Origin and approval

Constructionunit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 22.1 kW/t (43 kW / 1.9 t)

Power class: Universal (40–100 hp)

Stronger than 40% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Lindner BF 550 SN / SA have?

The Lindner BF 550 SN / SA delivers 58 hp.

How much does the Lindner BF 550 SN / SA weigh?

The unladen weight is 1,930 kg.

What engine does the Lindner BF 550 SN / SA have?

4 cylinders, 3,860 cm³ displacement, Diesel.

What are the dimensions of the Lindner BF 550 SN / SA?

3,550 mm × 1,700 mm × 1,880 mm.

When was the Lindner BF 550 SN / SA built?

Production years: 1973–1976.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
