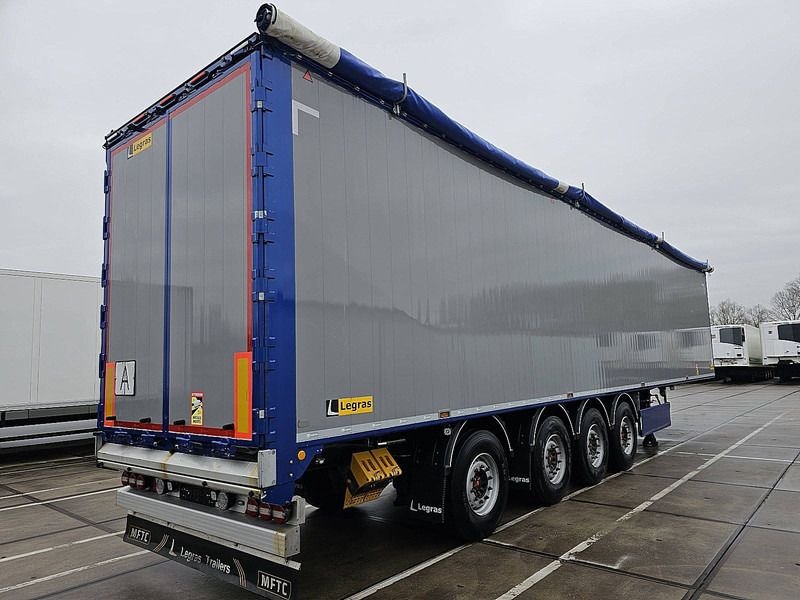

Legras DS
Built: 2017 · Series: Other models
More machines from model year 2017
Legras – other models: the collective page of walking-floor semi-trailers from Épernay outside the named ranges, from BA45 to DW34, gross weight 39,000 to 48,000 kg, length up to 14,040 mm
Legras of Épernay in France builds walking-floor semi-trailers for transporting bulk and waste materials; this page gathers the models outside the named ranges, including BA45, DS50 and DW34, whose narrow length span from 13.5 to just over 14 metres points to a fairly uniform body length across the range.
Read on 3 more paragraphs
The register lists here 8 versions with unladen weights from 7,200 to 9,150 kg, gross weights from 39,000 to 48,000 kg, lengths from 13,520 to 14,040 mm and widths from 2,500 to 2,550 mm.
Walking-floor semi-trailers of this size belong to class O4 and unload their cargo through a hydraulically driven, moving floor instead of tipping, which suits them to loose bulk goods, wood chips, compost or municipal waste, including where there is no clearance height for a tipper. This way of unloading also spares the structure of halls and transfer stations under which a tipper could not raise its body.
On used walking-floor semi-trailers, the condition and tightness of the floor chains and pusher slats, the operation of the hydraulics, the frame and sides, and axles and brakes count; spare parts for the walking-floor mechanism mostly run through the manufacturer itself. A trial run of the walking floor under load shows more reliably than an empty run whether chains and cylinders still work evenly.
Sources: SpecCodex register, model data: Legras (weitere Modelle)
Technical data
Dimensions and weights
| Length | 13,520 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Wheelbase | 9,190 mmcorrect |
| Unladen weight | 7,910 kgcorrect |
| Gross vehicle weight | 42,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Legras DS weigh?
The unladen weight is 7,910 kg.
What is the gross vehicle weight of the Legras DS?
42,000 kg.
Up to what speed is the Legras DS approved?
Approved up to 100 km/h.
What are the dimensions of the Legras DS?
13,520 mm × 2,500 mm.
When was the Legras DS built?
Production years: 2017.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
