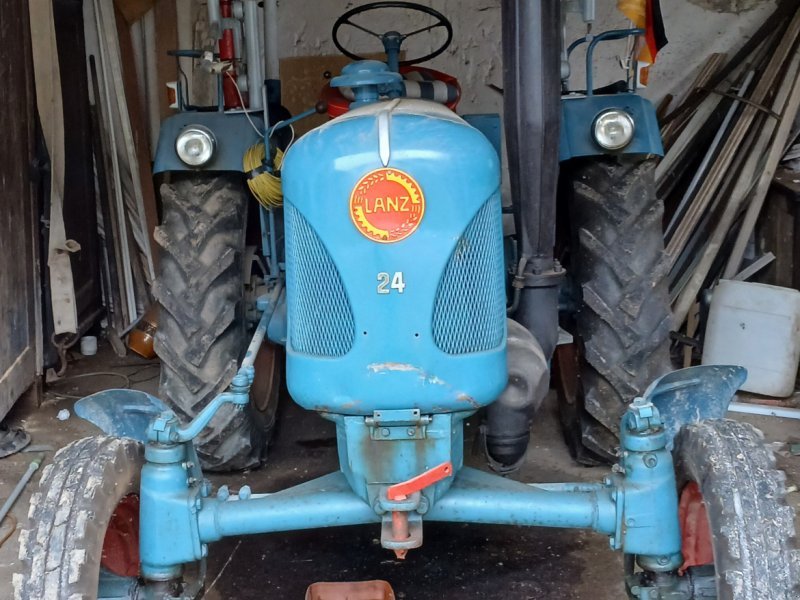

Lanz D 2416
Built: 1955–1960 · Series: Volldiesel
More machines from model year 1955
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Lanz Volldiesel (1955–1960) – the last Bulldogs: D 1106 to D 4016, the first digits as hp, one- and two-cylinder two-strokes with full diesel injection, the end of Mannheim under John Deere, 8 to 29 kW
Volldiesel is Lanz's name for the last Bulldog generation: from 1955 Mannheim replaced the medium-pressure Halbdiesel with full diesel injection – the engine remained the horizontal one- or two-cylinder two-stroke but started without preheating like any modern diesel. In 1956 John Deere took over Heinrich Lanz AG, and the Volldiesels ran until 1960 as the last tractors on the Bulldog principle before Deere switched Mannheim to multi-cylinder four-strokes. The type logic: the four-digit number gives the output in hp in its first two digits – D 1106 about 11 hp, D 1616 16 hp, D 2416 24 hp, D 2816 28 hp, D 4016 40 hp – and the version in the last two: 06 for plain equipment, 16 for the version with more gears and equipment, 02 and 12 for intermediate levels. The D 1106 to D 1666 are the single-cylinders, D 2402 to D 4016 the twins – the D 4016 with 4.2 litres from two cylinders at only 1,000 rpm the largest.
Read on 3 more paragraphs
The register lists 10 versions with 8.1 to 29.3 kW (12 to 40 hp), 533 to 4,222 cm³ with one or two cylinders, rated speeds around 1,000 to 1,050 rpm, unladen weights from 770 to 2,650 kg, lengths from 2,440 to 3,380 mm, widths from 1,000 to 1,805 mm and heights from 1,385 to 1,930 mm – all diesel.
The Volldiesels are the full stop of a design that began in 1921: the slow-running big cylinder that burned any fuel and shaped the country roads with its beat – the D 1616 and D 2416 were the best-selling small Bulldogs and are today the brand's most accessible collector pieces.
On used tractors, the piston and cylinder of the two-stroke, a leak-free crankcase, injection pump, gearbox and originality count; the club scene and remanufacturers secure the parts.
Sources: SpecCodex register, model data: Lanz Volldiesel, Lanz Bulldog (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 24 hp (17.6 kW)correct |
| Rated speed | 1,050 rpmcorrect |
| Cylinders | 1correct |
| Displacement | 2,617 cm³correct |
| Cooling | thermosiphon coolingcorrect |
Dimensions and weights
| Length | 2,587 mmcorrect |
|---|---|
| Width | 1,667 mmcorrect |
| Height | 1,890 mmcorrect |
| Wheelbase | 1,770 mmcorrect |
| Ground clearance | 465 mmcorrect |
| Unladen weight | 1,490 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6/2- oder 9/2-Getriebecorrect |
| Front tyres | 4.50-16correct |
| Rear tyres | 10-28correct |
| Top speed | 18.1 km/hcorrect |
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|
Other data
| PTO speed | 558 rpmcorrect |
|---|
Where this model stands
Power-to-weight ratio: 11.8 kW/t (18 kW / 1.5 t)
Power class: Compact (< 40 hp)
Stronger than 10% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Lanz D 2416 have?
The Lanz D 2416 delivers 24 hp.
How much does the Lanz D 2416 weigh?
The unladen weight is 1,490 kg.
What engine does the Lanz D 2416 have?
1 cylinders, 2,617 cm³ displacement, Diesel.
How fast does the Lanz D 2416 go?
Top speed is 18.1 km/h.
What are the dimensions of the Lanz D 2416?
2,587 mm × 1,667 mm × 1,890 mm.
When was the Lanz D 2416 built?
Production years: 1955–1960.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
