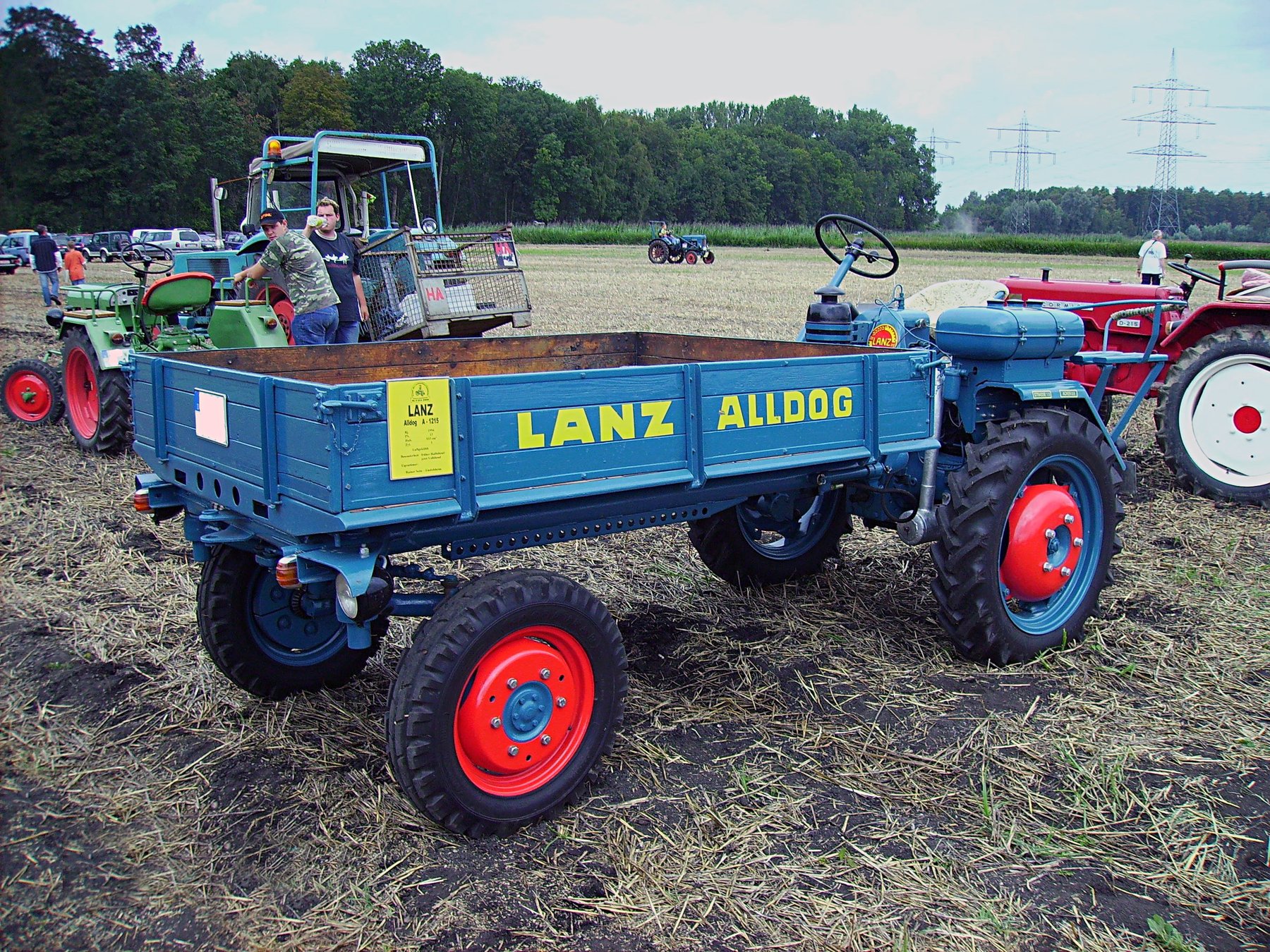

Lanz Alldog A 1205
Built: 1951–1953 · Series: Alldog
More machines from model year 1951
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Lanz Alldog (1951-1960) - the Mannheim implement carrier: single- and twin-cylinder engines of 0.4 to 1.3 litres, 9 to 13 kW, 980 to 1,420 kg kerb weight
The Alldog was Heinrich Lanz's answer to the need for a versatile implement carrier: built from 1951 in Mannheim, it was designed as a light universal tractor that, besides classic draft work, could also carry front- and mid-mounted implements for cultivation and harvesting. The type designations from A 1205 to A 1806 order the build sizes; the smaller models ran single-cylinder engines, the larger ones twin-cylinder units. After John Deere took over Lanz in 1956, the series continued until around 1960.
Read on 3 more paragraphs
The register lists 6 versions with 8.8 to 13.2 kW from single- and twin-cylinder engines of 446 to 1,250 cm³ at around 2,000 to 2,800 rpm, kerb weights of 980 to 1,420 kg, lengths of 3,650 to 3,830 mm, widths of 1,620 to 1,630 mm and heights of 1,650 to 1,715 mm; most models run on diesel, one on a petrol-oil mixture.
As an implement carrier, the Alldog targeted smaller farms and commercial horticulture, where a single vehicle was needed at once for tillage, transport and mounted harvesting machinery - a niche that Fendt and Same also occupied at the same time with their own implement carriers. When the series ended around 1960, the Lanz brand name also disappeared from John Deere's line-up.
On a used example of these small single- and twin-cylinder diesels, check compression and the injection pump, the front and mid PTO implement mounts, the clutch and steering, and corrosion on the frame and sheet metal; because so few were built, parts are scarce and available mainly through Lanz and vintage-vehicle specialists.
Sources: SpecCodex register, model data: Lanz Alldog
Technical data
Engine
| Fuel | Gemisch 1:20correct |
|---|---|
| Power | 12 hp (8.8 kW)correct |
| Rated speed | 2,800 rpmcorrect |
| Cylinders | 1correct |
| Displacement | 446 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,650 mmcorrect |
|---|---|
| Width | 1,620 mmcorrect |
| Height | 1,715 mmcorrect |
| Wheelbase | 2,234 mmcorrect |
| Ground clearance | 440 mmcorrect |
| Unladen weight | 1,170 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5/1-Getriebecorrect |
| Forward gears | 5correct |
| Reverse gears | 1correct |
| Front tyres | 5.50-16correct |
| Rear tyres | 7-24correct |
| Top speed | 19.5 km/hcorrect |
Origin and approval
| Construction | Zweiholmbauweisecorrect |
|---|---|
| Units built | 1,789correct |
Where this model stands
Power-to-weight ratio: 7.5 kW/t (9 kW / 1.2 t)
Power class: Compact (< 40 hp)
Stronger than 2% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Lanz Alldog A 1205 have?
The Lanz Alldog A 1205 delivers 12 hp.
How much does the Lanz Alldog A 1205 weigh?
The unladen weight is 1,170 kg.
What engine does the Lanz Alldog A 1205 have?
1 cylinders, 446 cm³ displacement, Gemisch 1:20.
How fast does the Lanz Alldog A 1205 go?
Top speed is 19.5 km/h.
What are the dimensions of the Lanz Alldog A 1205?
3,650 mm × 1,620 mm × 1,715 mm.
When was the Lanz Alldog A 1205 built?
Production years: 1951–1953.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
