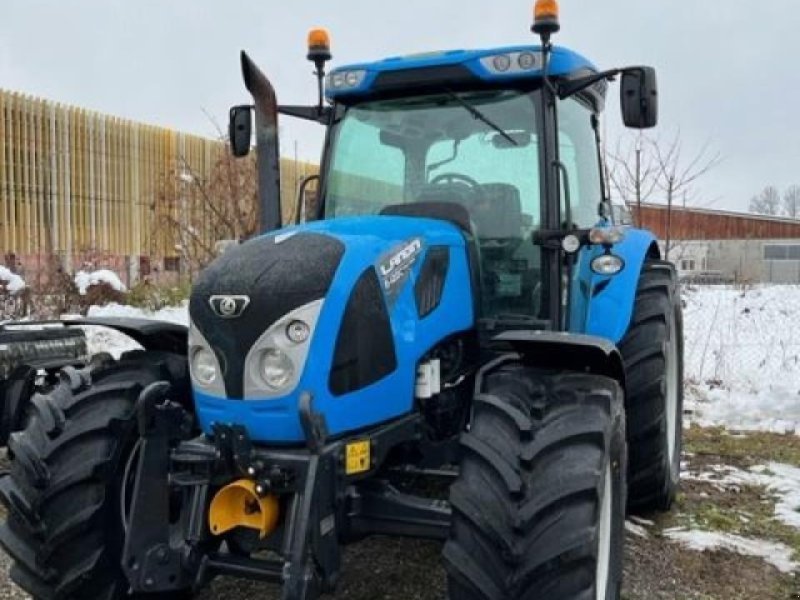

Landini Serie 6-120C – specifications
Series: Serie 6C
With the Serie 6-120C, Landini offers a model from the 6C series. The engine delivers 121 hp (89 kW), has 4 cylinders, with a displacement of 4,500 cm³. Rated speed is 2,200 rpm. The machine is 4,400 mm long, 2,056 mm wide and 2,805 mm high. The unladen weight is 4,700 kg. The wheelbase measures 2,540 mm. Ground clearance is 420 mm. Top speed is 40 km/h. Transmission: T-Tronic. The engine is air-cooled. Tyres: front 440/65R28, rear 540/65R38. Rated output across the Landini range ranges from 35.5 to 216.8 hp; the Serie 6-120C sits in the middle of that range with 121 hp. Its immediate neighbours are the Landpower 125 TDI below it with 119.2 hp and the 130 DT above it with 125 hp. Rated output across the Landini range ranges from 35.5 to 213 hp; here the Serie 6-120C sits in the middle of that range with 121 hp. 222 Landini models across 35 series are on record.
Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks) · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Landini Series 6C – the Series 6-120C: a turbocharged four-cylinder diesel with intercooling, 89 kW output and a 4,700 kg weight as a heavy all-purpose tractor
Landini is an Italian tractor manufacturer based in Fabbrico in the province of Reggio Emilia, now part of the Argo Tractors group. No build years are recorded for the Series 6-120C, but its figures mark it out as a larger, heavier tractor within the Landini range than the Series 5 or 600.
Read on 3 more paragraphs
The Series 6-120C carries a turbocharged four-cylinder diesel engine of 4,500 cm3 displacement with intercooling, producing 89 kW, or 121 hp, at 2,200 rpm. At a weight of 4,700 kg the machine reaches 40 km/h. A wheelbase of 2,540 mm, a width of 2,056 mm and a height of 2,805 mm on a 4,400 mm length describe a considerably larger frame than the smaller Landini series.
A turbocharged engine with its own intercooler reaches a higher power density from a smaller displacement than a naturally aspirated one, which lets it deliver power more evenly during PTO work with sharp load peaks. At a top speed of 40 km/h the machine sits at the edge of the L licence category, and the three-point linkage under ISO 730 accepts the larger implements of the upper categories that a tractor of this weight requires.
When buying a used turbocharged tractor of this weight class, checking the intercooler and its hoses for cracks and oil traces is essential, along with the turbocharger bearing for play and the seals on the intake tract. Corrosion on the heavy frame, the condition of the hydraulic pump on a tractor of this power class, and the braking system at a 40 km/h top speed all deserve particular attention.
Sources: SpecCodex-Register: Kennwerte des Modells Serie 6-120C
Technical data
Engine
| Power | 121 hp (89 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,500 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 4,400 mmcorrect |
|---|---|
| Width | 2,056 mmcorrect |
| Height | 2,805 mmcorrect |
| Wheelbase | 2,540 mmcorrect |
| Ground clearance | 420 mmcorrect |
| Unladen weight | 4,700 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | T-Troniccorrect |
| Front tyres | 440/65R28correct |
| Rear tyres | 540/65R38correct |
| Top speed | 40 km/hcorrect |
Frequently asked questions
Where this model stands
Power-to-weight ratio: 18.9 kW/t (89 kW / 4.7 t)
Power class: Large (100–180 hp)
Stronger than 75% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
