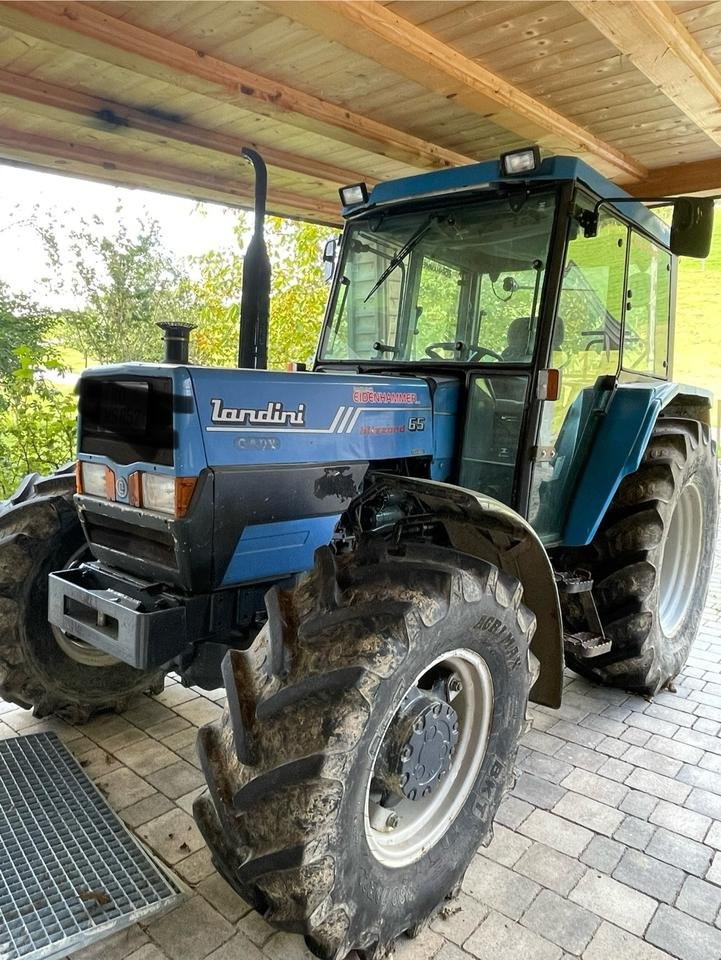

Landini 9800 (DT)
Built: 1987–2000 · Series: 800 er-Baureihe
More machines from model year 1987
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Landini 800 Series - four-wheel-drive tractors 7800 to 11800 (DT) from the oldest Italian tractor maker: four- and six-cylinder engines of 3.9 to 5.8 litres, 50 to 79 kW
Landini, founded in 1884 by Giovanni Landini in Fabbrico in Emilia, is one of the oldest tractor makers in the world and runs the 800 series as its four-wheel-drive programme: all six models listed here carry the DT designation for Doppia Trazione. The four-digit type designation orders the power class ascending from the 7800 to the 11800, while the Turbo suffix on the 7800 denotes the turbocharged version of the base model.
Read on 3 more paragraphs
The register lists 6 versions with 50 to 78.8 kW from four- and six-cylinder engines of 3,861 to 5,795 cm³, torque of 247 to 350 Nm at around 2,200 rpm, kerb weights of 3,705 to 4,390 kg, lengths of 3,950 to 4,450 mm, widths of 1,990 to 2,130 mm and heights of 2,620 to 2,810 mm; every model runs on diesel.
Within Landini's range, the 800 series covered the mid-to-upper power segment for arable and mixed farms, with four-wheel drive as a consistent standard for pulling power on heavy ground and sloping terrain. Landini today belongs to the ARGO Tractors group and shares platforms with its sister marque McCormick.
On a used example of these four- and six-cylinder diesels, check the injection pump and turbocharger (on the Turbo version), the clutch and transmission, the front-axle gearbox and drive shafts of the four-wheel-drive system, the hydraulic pump and valves, and corrosion on the wings and bonnet; parts run through the ARGO Tractors trade network.
Sources: SpecCodex register, model data: Landini 800er-Baureihe, Landini (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 90 hp (66.2 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 328 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,861 cm³correct |
| Bore | 98.42 mmcorrect |
| Stroke | 127 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,220 mmcorrect |
|---|---|
| Width | 2,080 mmcorrect |
| Height | 2,760 mmcorrect |
| Wheelbase | 2,460 mmcorrect |
| Ground clearance | 407 mmcorrect |
| Unladen weight | 4,080 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 32 V/32 Rcorrect |
| Front tyres | 10.00-16 ASF (A: 13.6 R 28 AS)correct |
| Rear tyres | 16.9 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 16.2 kW/t (66 kW / 4.1 t)
Power class: Universal (40–100 hp)
Stronger than 61% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Landini 9800 (DT) have?
The Landini 9800 (DT) delivers 90 hp.
How much does the Landini 9800 (DT) weigh?
The unladen weight is 4,080 kg.
What engine does the Landini 9800 (DT) have?
4 cylinders, 3,861 cm³ displacement, Diesel.
How fast does the Landini 9800 (DT) go?
Top speed is 30 km/h.
What are the dimensions of the Landini 9800 (DT)?
4,220 mm × 2,080 mm × 2,760 mm.
When was the Landini 9800 (DT) built?
Production years: 1987–2000.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
