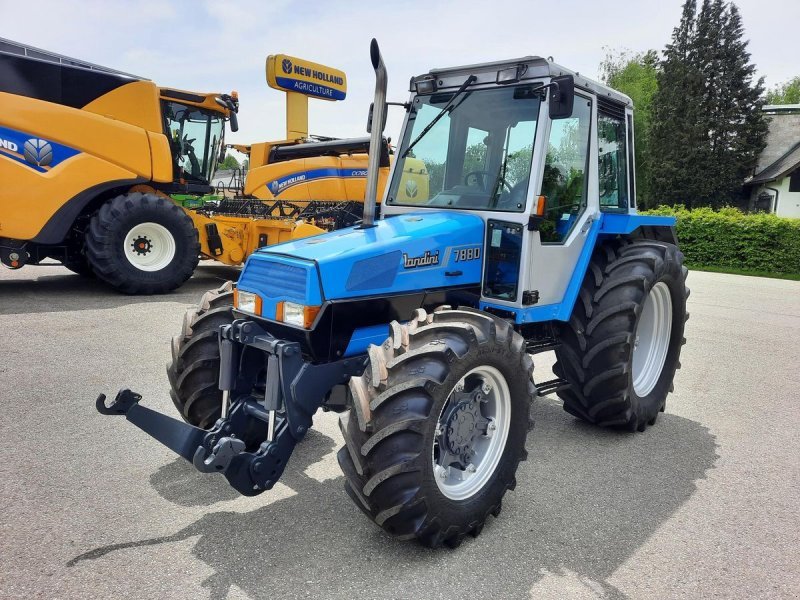

Landini 7800 (DT) – specifications
Built: 1987–2000 · Series: 800 er-Baureihe
The Landini 7800 (DT) belongs to the 800er series. Production: 1987–2000. The engine delivers 68 hp (50 kW), has 4 cylinders, with a displacement of 3,861 cm³. Torque is 247 Nm. Rated speed is 2,200 rpm. The machine is 3,950 mm long, 1,990 mm wide and 2,620 mm high. The unladen weight is 3,705 kg. The wheelbase measures 2,371 mm. Top speed is 30 km/h. Transmission: 32 V/32 R. The engine is water-cooled. Tyres: front 7.50-16 ASF (A: 11.2-24 AS), rear 16.9-30 AS. The fuel is diesel. The bore measures 98.4 mm. The stroke is 127 mm. Maximum torque is reached at 1,200 rpm. Construction: unit construction (no separate frame). Injection pressure is 170 bar. The 800 er-Baureihe series covers 6 models. Rated output within it ranges from 68 to 107 hp; the 7800 (DT) sits at the bottom of that range with 68 hp. Its immediate neighbours are the 8800 (DT) above it with 77 hp. Unladen weight within it ranges from 3,705 to 4,390 kg; here the 7800 (DT) sits at the bottom of that range with 3,705 kg. 222 Landini models across 35 series are on record.
Data for the version built 1987–2000 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1987
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Landini 800 Series - four-wheel-drive tractors 7800 to 11800 (DT) from the oldest Italian tractor maker: four- and six-cylinder engines of 3.9 to 5.8 litres, 50 to 79 kW
Landini, founded in 1884 by Giovanni Landini in Fabbrico in Emilia, is one of the oldest tractor makers in the world and runs the 800 series as its four-wheel-drive programme: all six models listed here carry the DT designation for Doppia Trazione. The four-digit type designation orders the power class ascending from the 7800 to the 11800, while the Turbo suffix on the 7800 denotes the turbocharged version of the base model.
Read on 3 more paragraphs
The register lists 6 versions with 50 to 78.8 kW from four- and six-cylinder engines of 3,861 to 5,795 cm³, torque of 247 to 350 Nm at around 2,200 rpm, kerb weights of 3,705 to 4,390 kg, lengths of 3,950 to 4,450 mm, widths of 1,990 to 2,130 mm and heights of 2,620 to 2,810 mm; every model runs on diesel.
Within Landini's range, the 800 series covered the mid-to-upper power segment for arable and mixed farms, with four-wheel drive as a consistent standard for pulling power on heavy ground and sloping terrain. Landini today belongs to the ARGO Tractors group and shares platforms with its sister marque McCormick.
On a used example of these four- and six-cylinder diesels, check the injection pump and turbocharger (on the Turbo version), the clutch and transmission, the front-axle gearbox and drive shafts of the four-wheel-drive system, the hydraulic pump and valves, and corrosion on the wings and bonnet; parts run through the ARGO Tractors trade network.
Sources: SpecCodex register, model data: Landini 800er-Baureihe, Landini (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 68 hp (50 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 247 Nmcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,861 cm³correct |
| Bore | 98.4 mmcorrect |
| Stroke | 127 mmcorrect |
| Injection pressure | 170 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,950 mmcorrect |
|---|---|
| Width | 1,990 mmcorrect |
| Height | 2,620 mmcorrect |
| Wheelbase | 2,371 mmcorrect |
| Ground clearance | (A: 370) mmcorrect |
| Unladen weight | 3,705 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 32 V/32 Rcorrect |
| Front tyres | 7.50-16 ASF (A: 11.2-24 AS)correct |
| Rear tyres | 16.9-30 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 13.5 kW/t (50 kW / 3.7 t)
Power class: Universal (40–100 hp)
Stronger than 47% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
