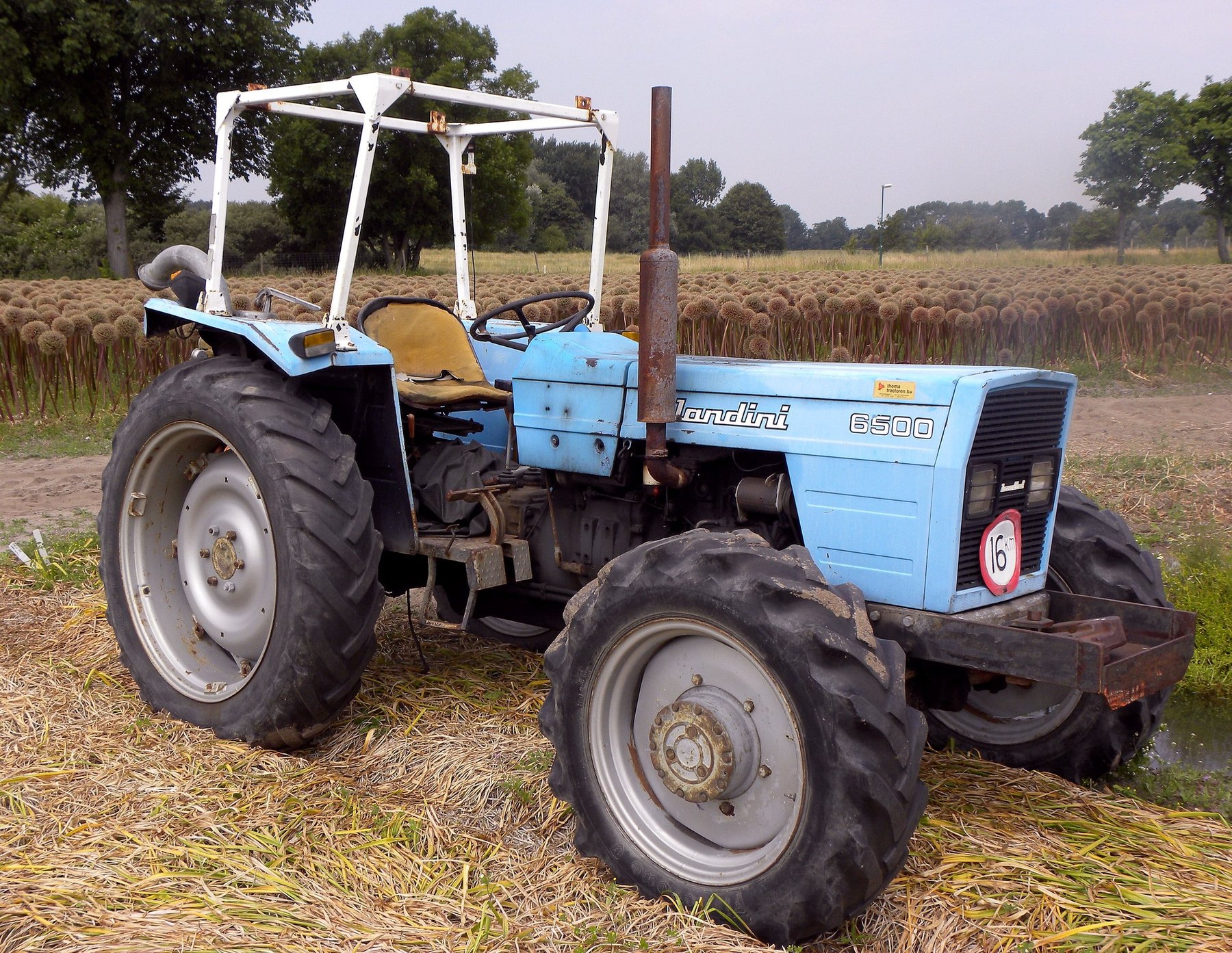

Landini R-6500 (DT)
Built: 1973–1983 · Series: 500 er-Baureihe
More machines from model year 1973
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Landini R-5500 to R-9500 DT – the 500 range from Fabbrico: DT for four-wheel drive, a three-digit internal TL code on each model, three- to six-cylinders of 2.5 to 5.8 litres, 37 to 77 kW
Landini, founded in 1884 by Giovanni Landini in Fabbrico near Reggio Emilia, ranks among Italy's oldest tractor makers and has, since the turn of the millennium, belonged to the Argo Tractors group, which also runs McCormick. The 500 range within the R series – R-5500, R-6500, R-7500, R-8500, R-9500 – orders the power class in ascending order through the last two digits, with DT marking four-wheel drive by Italian convention; each model additionally carries an internal TL code from type approval, noted in the register beside the model name. The engines run from a small three-cylinder to a large six-cylinder, showing the full breadth of this mid-sized range.
Read on 3 more paragraphs
The register lists 5 versions with engines of 2,502 to 5,792 cm³, 3 to 6 cylinders, outputs of 36.8 to 77.2 kW, torque of 173 to 289 Nm and operating weights of 2,010 to 3,510 kg at 2,100 to 2,250 rpm.
As mid-sized general-purpose tractors, the 500 range covered the segment of Italian family farms between the small orchard tractor and the large field tractor, competing with the comparable ranges of Same and Fiat/New Holland.
On used tractors, the condition of clutch and gearbox, leak-free hydraulics and PTO, the condition of four-wheel-drive hubs and rust on wings and cab count; parts supply runs through the Argo Tractors dealer network.
Sources: SpecCodex register, model data: Landini R-5500 bis R-9500, Landini (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 65 hp (47.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,867 cm³correct |
| Bore | 98.42 mmcorrect |
| Stroke | 127 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,620 mmcorrect |
|---|---|
| Width | 1,780 mmcorrect |
| Height | 2,260 mmcorrect |
| Wheelbase | 2,210 mmcorrect |
| Unladen weight | 2,210 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/4 Rcorrect |
| Front tyres | 7.50-16 ASF (A: 9.5-24 AS)correct |
| Rear tyres | 14.9/13-30 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 21.6 kW/t (48 kW / 2.2 t)
Power class: Universal (40–100 hp)
Stronger than 44% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Landini R-6500 (DT) have?
The Landini R-6500 (DT) delivers 65 hp.
How much does the Landini R-6500 (DT) weigh?
The unladen weight is 2,210 kg.
What engine does the Landini R-6500 (DT) have?
4 cylinders, 3,867 cm³ displacement, Diesel.
How fast does the Landini R-6500 (DT) go?
Top speed is 25 km/h.
What are the dimensions of the Landini R-6500 (DT)?
3,620 mm × 1,780 mm × 2,260 mm.
When was the Landini R-6500 (DT) built?
Production years: 1973–1983.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 20 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
