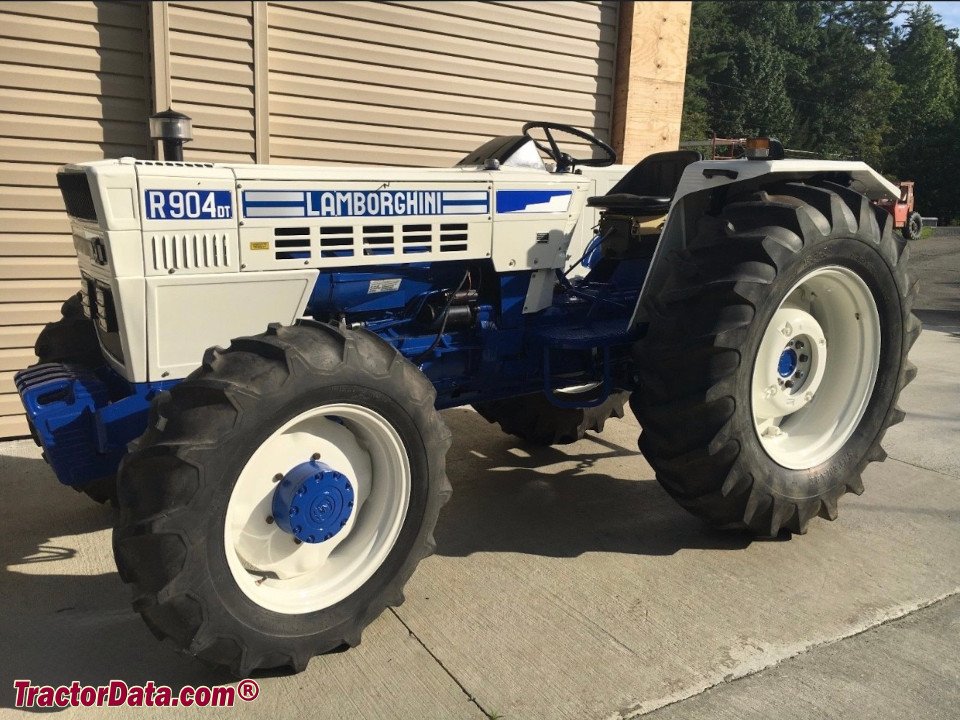

Lamborghini R-904 (DT) – specifications
Built: 1976–1982 · Series: Vierte R-Baureihe
With the R-904 (DT), Lamborghini offers a model from the Vierte R series. Production: 1976–1982. The engine delivers 92 hp (67.7 kW), has 4 cylinders, with a displacement of 4,986 cm³. Rated speed is 2,090 rpm. The machine is 3,530 mm long, 1,780 mm wide and 2,210 mm high. The unladen weight is 3,010 kg. Ground clearance is 460 mm. Top speed is 25 km/h. Transmission: 12 V/3 R. The engine is air-cooled. Tyres: front 6.50-16 ASF (DT: 9.5-24 AS), rear 14.9-30 AS. The fuel is diesel. The bore measures 115 mm. The stroke is 120 mm. The compression ratio is 17:1. Construction: unit construction (no separate frame). Injection pressure is 185 bar. The Vierte R-Baureihe series covers 5 models. Rated output within it ranges from 47 to 92 hp; the R-904 (DT) sits at the top of that range with 92 hp. Its immediate neighbours are the R-804 (DT) below it with 84 hp. Unladen weight within it ranges from 1,740 to 3,010 kg; here the R-904 (DT) sits at the top of that range with 3,010 kg. 136 Lamborghini models across 28 series are on record.
Data for the version built 1976–1982 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1976
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Lamborghini R-503 to R-904 DT – the small and mid-sized R range from Pieve di Cento: DT for four-wheel drive, three- and four-cylinders of 2.8 to 5.0 litres, 35 to 68 kW, with markedly different heights across versions
Alongside the big six-cylinder R group, Lamborghini Trattori's R range also comprises a smaller and mid-sized line with three- and four-cylinder engines, including the R-503, R-603, R-704, R-804 and R-904. The type logic follows the same pattern as the large R models: the three-digit number grows with engine size and power class, and DT stands for "Doppia Trazione", the four-wheel drive on every model in the register. What stands out is the comparatively wide spread in overall height, from 1,490 to 2,210 mm, pointing to different cab and platform versions within the same range, while the engines are consistently three- or four-cylinder diesels from the SAME Deutz-Fahr modular kit.
Read on 3 more paragraphs
The register lists 5 versions with engines of 2,827 to 4,986 cm³, 3 to 4 cylinders, outputs of 34.7 to 67.7 kW, operating weights of 1,740 to 3,010 kg and lengths of 3,210 to 3,530 mm at 2,000 to 2,300 rpm.
These R models served the mid-market segment for small and medium-sized farms, below the big six-cylinder R range and the same maker's Premium range.
On used tractors, the condition of clutch and gearbox, leak-free hydraulics, the condition of four-wheel-drive hubs and rust on wings and cab count; parts supply runs through the SAME Deutz-Fahr dealer network.
Sources: SpecCodex register, model data: Lamborghini R-503 bis R-904, Lamborghini Trattori (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 92 hp (67.7 kW)correct |
| Rated speed | 2,090 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,986 cm³correct |
| Bore | 115 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 17correct |
| Injection pressure | 185 barcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,530 mmcorrect |
|---|---|
| Width | 1,780 mmcorrect |
| Height | 2,210 mmcorrect |
| Ground clearance | 460 mmcorrect |
| Unladen weight | 3,010 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/3 Rcorrect |
| Front tyres | 6.50-16 ASF (DT: 9.5-24 AS)correct |
| Rear tyres | 14.9-30 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 22.5 kW/t (68 kW / 3 t)
Power class: Universal (40–100 hp)
Stronger than 62% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
