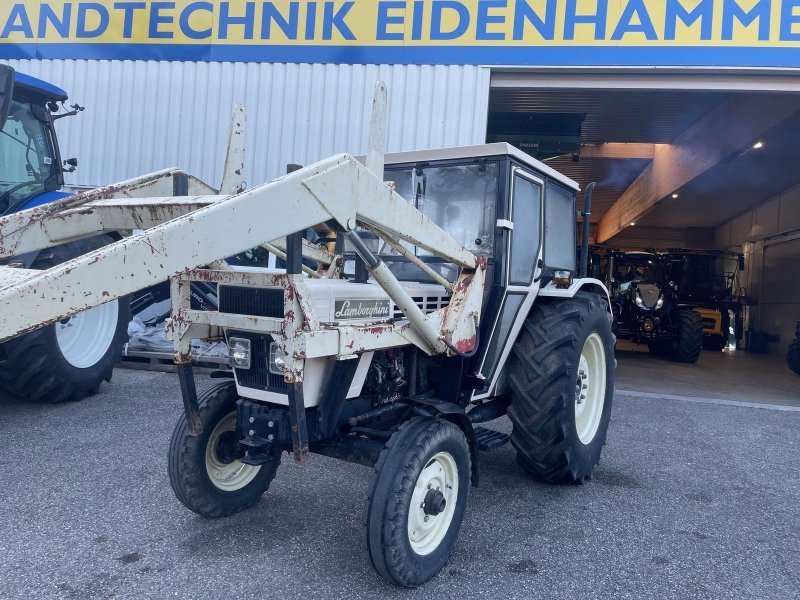

Lamborghini R-503 (DT)
Built: 1973–1982 · Series: Vierte R-Baureihe
More machines from model year 1973
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Lamborghini R-503 to R-904 DT – the small and mid-sized R range from Pieve di Cento: DT for four-wheel drive, three- and four-cylinders of 2.8 to 5.0 litres, 35 to 68 kW, with markedly different heights across versions
Alongside the big six-cylinder R group, Lamborghini Trattori's R range also comprises a smaller and mid-sized line with three- and four-cylinder engines, including the R-503, R-603, R-704, R-804 and R-904. The type logic follows the same pattern as the large R models: the three-digit number grows with engine size and power class, and DT stands for "Doppia Trazione", the four-wheel drive on every model in the register. What stands out is the comparatively wide spread in overall height, from 1,490 to 2,210 mm, pointing to different cab and platform versions within the same range, while the engines are consistently three- or four-cylinder diesels from the SAME Deutz-Fahr modular kit.
Read on 3 more paragraphs
The register lists 5 versions with engines of 2,827 to 4,986 cm³, 3 to 4 cylinders, outputs of 34.7 to 67.7 kW, operating weights of 1,740 to 3,010 kg and lengths of 3,210 to 3,530 mm at 2,000 to 2,300 rpm.
These R models served the mid-market segment for small and medium-sized farms, below the big six-cylinder R range and the same maker's Premium range.
On used tractors, the condition of clutch and gearbox, leak-free hydraulics, the condition of four-wheel-drive hubs and rust on wings and cab count; parts supply runs through the SAME Deutz-Fahr dealer network.
Sources: SpecCodex register, model data: Lamborghini R-503 bis R-904, Lamborghini Trattori (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 47 hp (34.7 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 160 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,827 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 17.5correct |
| Injection pressure | 176 barcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,210 mmcorrect |
|---|---|
| Width | 1,600 mmcorrect |
| Height | 1,490 mmcorrect |
| Wheelbase | 1,920 mmcorrect |
| Ground clearance | 410 mmcorrect |
| Unladen weight | 1,740 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/3 Rcorrect |
| Front tyres | 5.50-16 ASF (DT: 8.00-20 AS)correct |
| Rear tyres | 12.4-28 AScorrect |
| Top speed | 23 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 19.9 kW/t (35 kW / 1.7 t)
Power class: Universal (40–100 hp)
Stronger than 31% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Lamborghini R-503 (DT) have?
The Lamborghini R-503 (DT) delivers 47 hp.
How much does the Lamborghini R-503 (DT) weigh?
The unladen weight is 1,740 kg.
What engine does the Lamborghini R-503 (DT) have?
3 cylinders, 2,827 cm³ displacement, Diesel.
How fast does the Lamborghini R-503 (DT) go?
Top speed is 23 km/h.
What are the dimensions of the Lamborghini R-503 (DT)?
3,210 mm × 1,600 mm × 1,490 mm.
When was the Lamborghini R-503 (DT) built?
Production years: 1973–1982.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
