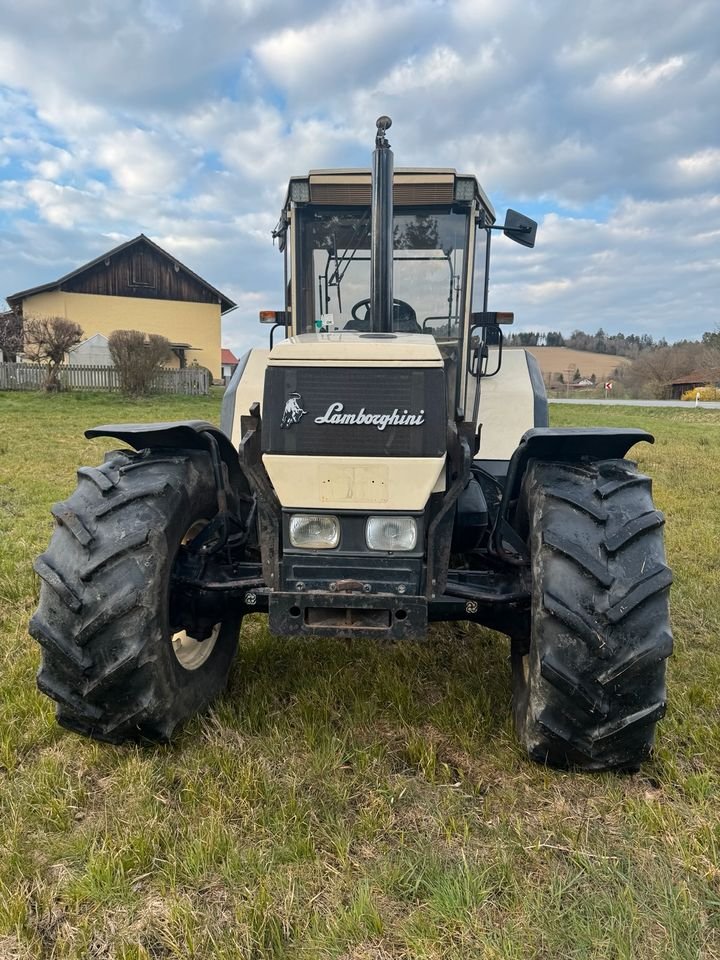

Lamborghini / Slh R-956 (DT)
Built: 1983–1996 · Series: 06 er-Baureihe
More machines from model year 1983
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Lamborghini R-956 to R-1706 DT – the big six-cylinder R range from Pieve di Cento: DT for four-wheel drive, six cylinders throughout at 5.5 to 6.8 litres, 70 to 121 kW, operating weights up to 5.8 t
Within Lamborghini Trattori's R range, the R-956, R-1106, R-1306, R-1506 and R-1706 form the upper, exclusively six-cylinder group – unlike the smaller R models with three or four cylinders, these types cover the range's large field tractors. The DT suffix follows Italian convention for "Doppia Trazione", the four-wheel drive fitted on every model in the register; the four-digit number grows with engine size and power class from 956 to 1706. As with the smaller R models, the SAME Deutz-Fahr group pools the six-cylinder engine family across several brand ranges, which eases parts supply.
Read on 3 more paragraphs
The register lists 5 versions with engines of 5,497 to 6,842 cm³, 6 cylinders, outputs of 69.9 to 121.4 kW, torque of 332 to 634 Nm, operating weights of 3,840 to 5,800 kg and lengths of 3,836 to 4,510 mm at 2,180 to 2,500 rpm.
As large two-axle tractors, these R models occupied the upper market segment ahead of the articulated big tractors and competed directly with the large six-cylinder ranges of Fendt and Deutz-Fahr within the same group.
On used tractors, the condition of clutch, gearbox and drive shafts, leak-free hydraulics, lift and PTO, the condition of four-wheel-drive hubs and front axle, and rust on cab and wings count; parts supply runs through the SAME Deutz-Fahr dealer network.
Sources: SpecCodex register, model data: Lamborghini R-956 bis R-1706, Lamborghini Trattori (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 95 hp (69.9 kW)correct |
| Rated speed | 2,180 rpmcorrect |
| Torque | 332 Nmcorrect |
| Speed at max. torque | 1,375 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,497 cm³correct |
| Bore | 103 mmcorrect |
| Stroke | 110 mmcorrect |
| Compression ratio | 17.5correct |
| Injection pressure | 22 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,836 mmcorrect |
|---|---|
| Width | 1,957 mmcorrect |
| Height | 2,652 mmcorrect |
| Wheelbase | 2,617 mmcorrect |
| Ground clearance | 532 mmcorrect |
| Unladen weight | 3,840 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/3 R, 20 V/12 R and 24 V/12 Rcorrect |
| Front tyres | 9.00-16 ASF (DT: 14.9-28 AS)correct |
| Rear tyres | 16.9-38 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 18.2 kW/t (70 kW / 3.8 t)
Power class: Universal (40–100 hp)
Stronger than 63% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Lamborghini / Slh R-956 (DT) have?
The Lamborghini / Slh R-956 (DT) delivers 95 hp.
How much does the Lamborghini / Slh R-956 (DT) weigh?
The unladen weight is 3,840 kg.
What engine does the Lamborghini / Slh R-956 (DT) have?
6 cylinders, 5,497 cm³ displacement, Diesel.
How fast does the Lamborghini / Slh R-956 (DT) go?
Top speed is 25 km/h.
What are the dimensions of the Lamborghini / Slh R-956 (DT)?
3,836 mm × 1,957 mm × 2,652 mm.
When was the Lamborghini / Slh R-956 (DT) built?
Production years: 1983–1996.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
