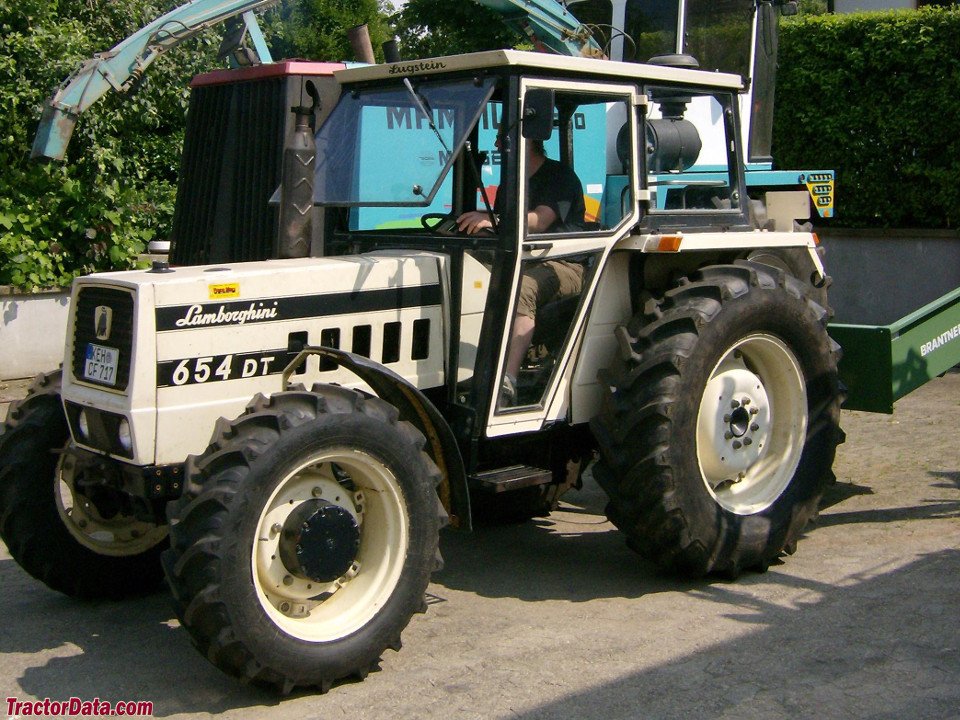

Lamborghini / Sdf 654-55 (DT)
Built: 2000–2004 · Series: SPRINT-Baureihe
More machines from model year 2000
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Lamborghini Sprint Series (SDF) - compact tractors 654 to 684 with DT for four-wheel drive: three- and four-cylinder engines of 3.0 to 4.0 litres, 41 to 61 kW
The Sprint series was Lamborghini's compact utility-tractor line below its large row-crop tractors; all six versions listed here carry the DT designation, which across the Italian SDF marques - Lamborghini, Same and Deutz-Fahr alike - stands for Doppia Trazione, four-wheel drive. The type designation pairs the three-digit series number (654 to 684) with an appended power figure from 55 to 85.
Read on 3 more paragraphs
The register lists 6 versions with 41.2 to 61 kW from three- and four-cylinder engines of 3,000 to 4,000 cm³, torque of 197 to 310 Nm at around 2,350 rpm, kerb weights of 2,600 to 2,710 kg, lengths of 3,330 to 3,720 mm, widths of 1,790 to 2,070 mm and heights of 2,400 to 2,480 mm; every model runs on diesel.
As compact four-wheel-drive tractors, the Sprint series targeted smaller and medium farms, grassland and hillside operations, and viticulture and orchards, where manoeuvrability and low weight mattered more than raw pulling power. Within the SDF group it occupied its own segment alongside comparable series from Same and Deutz-Fahr.
On a used example of these three- and four-cylinder diesels, check the injection pump and compression, the clutch and transmission, the front-axle gearbox and drive shafts of the four-wheel-drive system, the hydraulic pump and valves, and corrosion on the wings and bonnet; parts run through the SDF network and are in part interchangeable with Same and Deutz-Fahr models.
Sources: SpecCodex register, model data: Lamborghini Sprint, Lamborghini Trattori (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 56 hp (41.2 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Torque | 197 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 3,000 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 17correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,330 mmcorrect |
|---|---|
| Width | 1,790 mmcorrect |
| Height | 2,400 mmcorrect |
| Wheelbase | 2,105 mmcorrect |
| Ground clearance | 445 mmcorrect |
| Unladen weight | 2,600 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 16 V/8 R, 24 V/12 R and 30 V/15 Rcorrect |
| Front tyres | 7.50-16 ASF (DT: 11.2 R 20 AS)correct |
| Rear tyres | 14.9 R 28 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 15.8 kW/t (41 kW / 2.6 t)
Power class: Universal (40–100 hp)
Stronger than 39% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Lamborghini / Sdf 654-55 (DT) have?
The Lamborghini / Sdf 654-55 (DT) delivers 56 hp.
How much does the Lamborghini / Sdf 654-55 (DT) weigh?
The unladen weight is 2,600 kg.
What engine does the Lamborghini / Sdf 654-55 (DT) have?
3 cylinders, 3,000 cm³ displacement, Diesel.
How fast does the Lamborghini / Sdf 654-55 (DT) go?
Top speed is 40 km/h.
What are the dimensions of the Lamborghini / Sdf 654-55 (DT)?
3,330 mm × 1,790 mm × 2,400 mm.
When was the Lamborghini / Sdf 654-55 (DT) built?
Production years: 2000–2004.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
