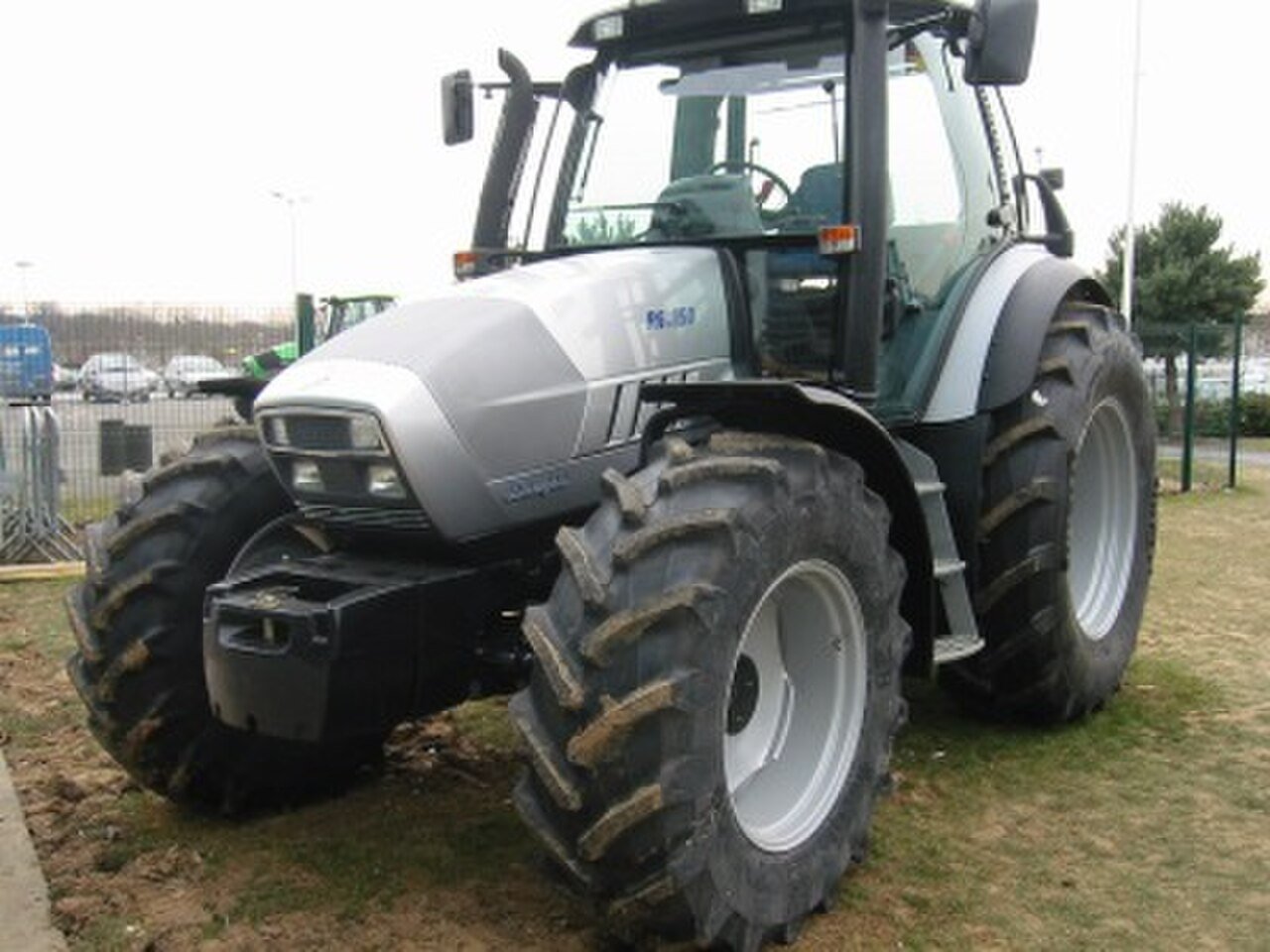

Lamborghini R.1506 DT
Built: 2004 · Series: R.-Baureihe
More machines from model year 2004
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Lamborghini R series – Ferruccio's tractors from Pieve di Cento before and after SAME: 1 R to 7 R, R 226 to R 480, R.1106 to R.1506, the number as cylinders and hp, 19 to 110 kW
Lamborghini Trattori is the company with which Ferruccio Lamborghini began in 1948 in Pieve di Cento near Bologna – twenty years before the sports cars he built tractors from military-surplus engines and then with his own diesels, until he sold the tractor division in 1973 to SAME of Treviglio, where the brand lives on today in the SDF group. The R series in the register spans both eras: the early 1 R, 2 R, 4 R and 7 R-Super of the 1960s are Lamborghini's own designs with air-cooled engines, the three-digit R 226 to R 480 and the four-digit R.1106 to R.1506 the SAME era from the 1970s. The number logic of the SAME years: the first digit gives the cylinder count, the following ones the output in hp – an R 230 is a two-cylinder with 30 hp, an R 470 a four-cylinder with 70 hp, an R.1106 a six-cylinder with 110 hp; DT stands for Doppia Trazione, four-wheel drive.
Read on 3 more paragraphs
The register lists 14 versions with 19.1 to 110.3 kW (26 to 150 hp), 1,462 to 6,000 cm³ with two to six cylinders, torque from 118 to 536 Nm, unladen weights from 1,000 to 5,695 kg, lengths from 2,250 to 4,450 mm, widths from 1,330 to 2,360 mm and heights from 1,100 to 2,820 mm – all diesel.
The air-cooled SAME direct-injection engines that also powered the Lamborghinis in the SAME era were the group's technical hallmark; the Lamborghini brand served the upper segment with full equipment.
Used, the early R models are collector pieces with a bull-badge premium, the SAME-era types robust farmyard tractors; when buying, engine condition (cylinders and blower on air-cooled units), gearbox, front axle on DT models and parts supply through SDF are what count.
Sources: SpecCodex register, model data: Lamborghini R-Baureihe, Lamborghini Trattori (SDF, Hersteller), Lamborghini Trattori (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 150 hp (110.3 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 536 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,000 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,450 mmcorrect |
|---|---|
| Width | 2,360 mmcorrect |
| Height | 2,820 mmcorrect |
| Wheelbase | 2,750 mmcorrect |
| Ground clearance | 550 mmcorrect |
| Unladen weight | 5,695 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24 V/12 R and 16 V/12 Rcorrect |
| Front tyres | 480/70 R 30 AScorrect |
| Rear tyres | 580/70 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 240 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat III/IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 19.4 kW/t (110 kW / 5.7 t)
Power class: Large (100–180 hp)
Stronger than 83% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Lamborghini R.1506 DT have?
The Lamborghini R.1506 DT delivers 150 hp.
How much does the Lamborghini R.1506 DT weigh?
The unladen weight is 5,695 kg.
What engine does the Lamborghini R.1506 DT have?
6 cylinders, 6,000 cm³ displacement, Diesel.
How fast does the Lamborghini R.1506 DT go?
Top speed is 30 km/h.
What are the dimensions of the Lamborghini R.1506 DT?
4,450 mm × 2,360 mm × 2,820 mm.
When was the Lamborghini R.1506 DT built?
Production years: 2004.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 26 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
