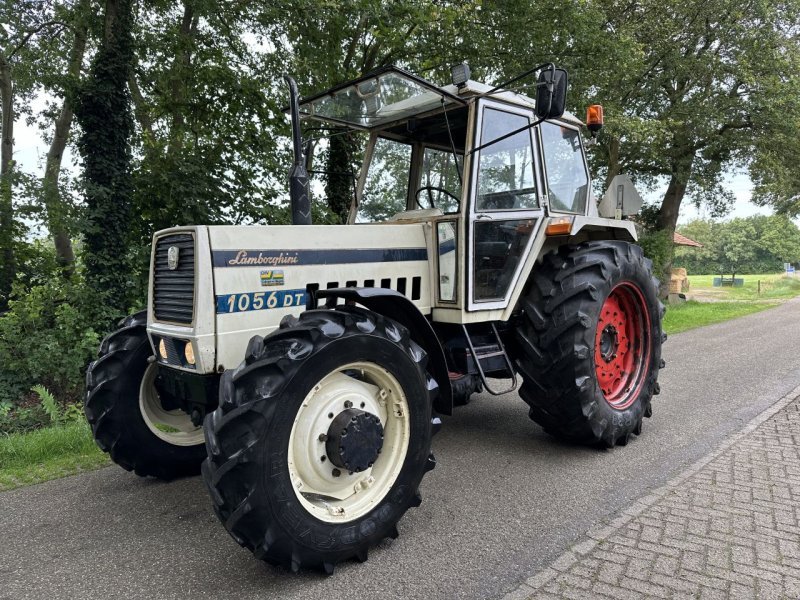

Lamborghini R-1056 (DT)
Built: 1977–1984 · Series: Other models
More machines from model year 1977
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Lamborghini Trattori – other models: Italian tractors outside the named ranges, from Green Pro to Racing and R6.150, 16.2 to 158 kW, part of SDF/SAME since 1972
This page gathers Lamborghini tractors outside the named ranges, from the compact Green Pro and Spire models through the R and Racing series to the large R6.150 and R4.110. Ferruccio Lamborghini founded the company in 1948 near Bologna, before launching the sports car maker of the same name in 1963; the tractor division passed to the SAME group (today SDF) in 1972, which still runs Lamborghini Trattori as a standalone brand with its characteristic yellow paintwork. The model names draw on motorsport terms such as Racing, Formula, Champion, Strike, Sprint, Spark and Crono.
Read on 3 more paragraphs
The register lists 45 versions here with 16.2 to 158 kW from two- to six-cylinder engines of 1,318 to 8,710 cm³, unladen weights of 1,000 to 6,710 kg, gross vehicle weights of 2,500 to 10,000 kg, lengths of 2,270 to 4,750 mm, widths of 1,330 to 2,600 mm, heights of 1,100 to 2,900 mm, torque of 206 to 353 Nm and rated speeds of 1,900 to 2,200 rpm.
As part of the SDF group, Lamborghini shares engine and transmission technology with sister brands Same and Deutz-Fahr, but positions itself with distinctive design and colour as the more emotive alternative in the same market segment, from the compact orchard tractor to the large field tractor for southern and eastern European markets.
When buying used, the smaller Green Pro and Spire models call for checking the hydrostatic drive and front-loader mounting, the larger R and Racing series the turbocharger, injection pump and clutch, and generally rust on wings and the condition of cab seals; since engines come partly from Lamborghini itself and partly from Mitsubishi, Perkins and Deutz, parts supply differs by engine supplier.
Sources: SpecCodex register, model data: Lamborghini Trattori (weitere Modelle), Lamborghini Trattori (SDF Group, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 105 hp (77.2 kW)correct |
| Rated speed | 2,220 rpmcorrect |
| Torque | 340 Nmcorrect |
| Speed at max. torque | 1,445 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,431 cm³correct |
| Bore | 98 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 17.5correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 4,520 mmcorrect |
|---|---|
| Width | 2,250 mmcorrect |
| Height | 2,900 mmcorrect |
| Wheelbase | 2,725 mmcorrect |
| Ground clearance | 540 mmcorrect |
| Unladen weight | 3,930 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/3 Rcorrect |
| Front tyres | 9.50-20 ASF (DT: 13.6-28 AS)correct |
| Rear tyres | 18.4-38 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 19.6 kW/t (77 kW / 3.9 t)
Power class: Large (100–180 hp)
Stronger than 69% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Lamborghini R-1056 (DT) have?
The Lamborghini R-1056 (DT) delivers 105 hp.
How much does the Lamborghini R-1056 (DT) weigh?
The unladen weight is 3,930 kg.
What engine does the Lamborghini R-1056 (DT) have?
6 cylinders, 5,431 cm³ displacement, Diesel.
How fast does the Lamborghini R-1056 (DT) go?
Top speed is 25 km/h.
What are the dimensions of the Lamborghini R-1056 (DT)?
4,520 mm × 2,250 mm × 2,900 mm.
When was the Lamborghini R-1056 (DT) built?
Production years: 1977–1984.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
