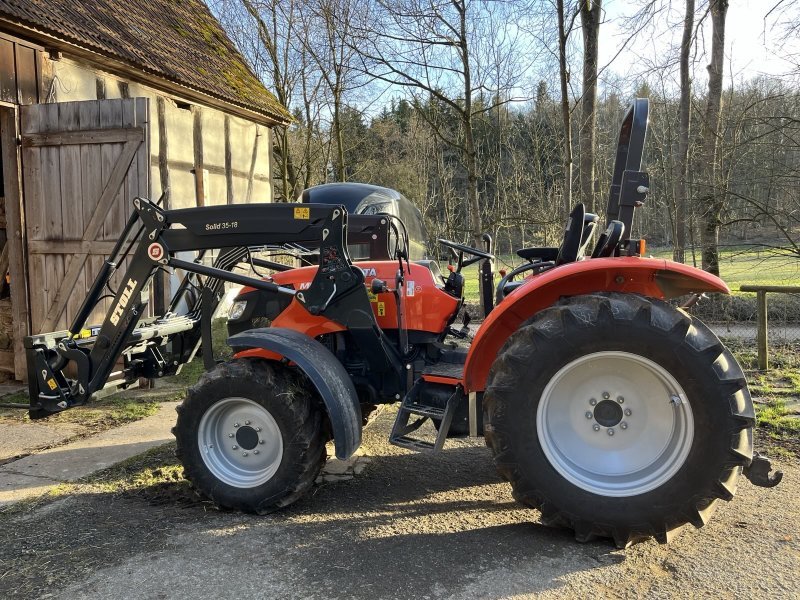

Kubota M 6060 ROPS

Series: M ..60

Source: https://www.technikboerse.com/gebraucht/traktor-357/kubota-6

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the M 6060 ROPS, Kubota offers a model from the M ..60 series. The engine delivers 66 hp (49 kW), has 4 cylinders, with a displacement of 3,331 cm³. Rated speed is 2,400 rpm. The machine is 3,675 mm long, 1,855 mm wide and 2,515 mm high. The unladen weight is 2,790 kg. The wheelbase measures 2,110 mm. Top speed is 40 km/h. The engine is water-cooled. Tyres: front 320/85R20, rear 420/85R30. The fuel is diesel. The gearbox offers 18 forward gears. There are also 18 reverse gears. The M ..60 series covers 3 models. Rated output within it ranges from 66 to 91 hp; the M 6060 ROPS sits at the bottom of that range with 66 hp. Its immediate neighbours are the M7060 above it with 74 hp. Unladen weight within it ranges from 2,790 to 3,665 kg; here the M 6060 ROPS sits at the bottom of that range with 2,790 kg. 1112 Kubota models across 46 series are on record.

Kubota M ..60 – the compact standard-tractor range from Japan: the M6060 ROPS, M7060 and M8560 with four-cylinder diesels, 49 to 67 kW, up to 5.5 t gross weight

The M-60 range forms Kubota's mid-size class of standard tractors between the compact and the big MGX models; the type logic follows the pattern of M plus power class plus the 60 suffix for this generation – the M6060, M7060 and M8560 rise in engine power and equipment. The ROPS version of the M6060 carries an open build with a roll bar instead of a cab, a simpler and lighter design aimed at smaller farms.

Read on 3 more paragraphs

The register lists here 3 versions with 49 to 67 kW output at 2,400 to 2,600 rpm, from four-cylinder diesels of 3,331 to 3,769 cm³. Unladen weights range from 2,790 to 3,665 kg, gross weight up to 5,500 kg, lengths from 3,675 to 4,395.5 mm, widths from 1,855 to 2,280 mm and heights from 2,515 to 2,650 mm; all three models run on diesel.

The M-60 range targets mid-size farms and contractors looking for a versatile standard tractor suited to a front loader, without having to invest in Kubota's largest class; the plain ROPS version further lowers the entry price for operations with lower demands on driver comfort.

On a used purchase, operating hours and oil-change intervals of the four-cylinder diesel count, the condition of clutch, gearbox and PTO, the tightness of the hydraulic system, and on the open ROPS version the condition of the roll bar and seat mounting; parts run through Kubota's dealer network.

Sources: SpecCodex register, model data: Kubota M ..60, Kubota (manufacturer)

Technical data

Engine

Fuel	dieselcorrect
Power	66 hp (49 kW)correct
Rated speed	2,400 rpmcorrect
Cylinders	4correct
Displacement	3,331 cm³correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,675 mmcorrect
Width	1,855 mmcorrect
Height	2,515 mmcorrect
Wheelbase	2,110 mmcorrect
Unladen weight	2,790 kgcorrect

Drivetrain and chassis

Forward gears	18correct
Reverse gears	18correct
Front tyres	320/85R20correct
Rear tyres	420/85R30correct
Top speed	40 km/hcorrect

Where this model stands

Power-to-weight ratio: 17.6 kW/t (49 kW / 2.8 t)

Power class: Universal (40–100 hp)

Stronger than 46% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Kubota M 6060 ROPS have?

The Kubota M 6060 ROPS delivers 66 hp.

How much does the Kubota M 6060 ROPS weigh?

The unladen weight is 2,790 kg.

What engine does the Kubota M 6060 ROPS have?

4 cylinders, 3,331 cm³ displacement, Diesel.

How fast does the Kubota M 6060 ROPS go?

Top speed is 40 km/h.

What are the dimensions of the Kubota M 6060 ROPS?

3,675 mm × 1,855 mm × 2,515 mm.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
