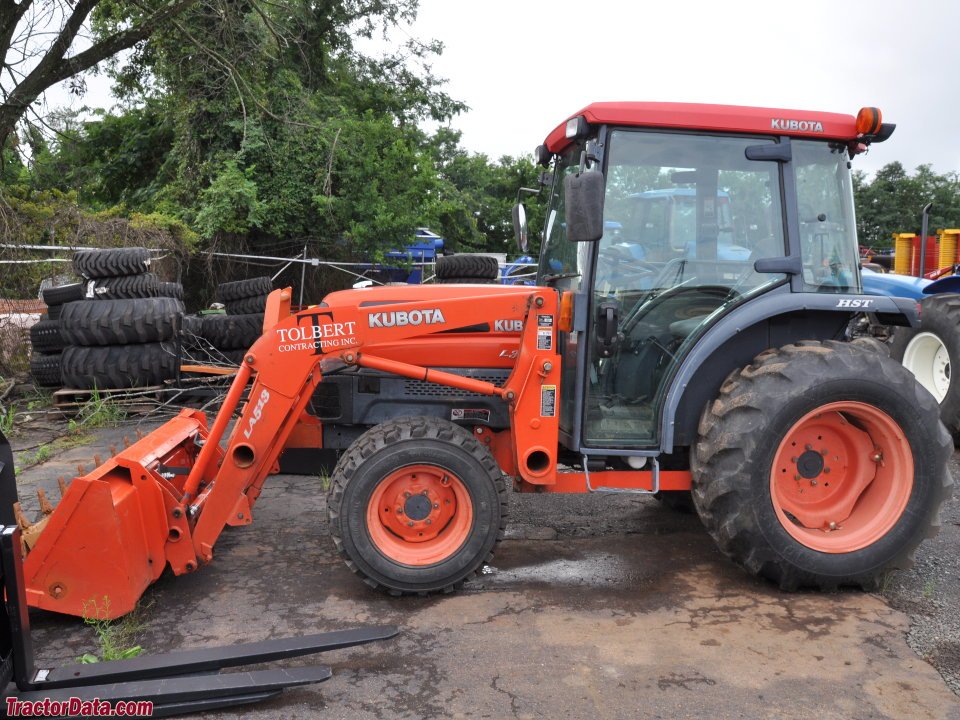

Kubota L3430GST 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Kubota L3430GST belongs to the Kubota 4WD Tractor series. Under the bonnet works a three-cylinder engine displacing 1.6 litres, producing 36 hp (25.1 kW). Rated output is reached at 2,700 rpm, so it works in the lower rev range.
Top speed is 27 km/h. Unladen weight is 1,480 kg.
Within the range, rated power spans from 18.2 to 116 hp; with 35.6 hp, the L3430GST sits in the lower third. Directly alongside are the L3408 with 35.2 hp below and the L3540GST with 37.5 hp above.
Technical data
Engine
| Engine model | L3430 GSTcorrect |
|---|---|
| Power | 35.6 hp (25.1 kW)correct |
| Rated speed | 2,700 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,646.9 cm³correct |
Dimensions and weights
| Length | 2,920 mmcorrect |
|---|---|
| Ground clearance | 360.2correct |
| Unladen weight | 1,480 kgcorrect |
Drivetrain and chassis
| Gearbox type | GSTcorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 8correct |
| Tyre size | front 7.2-16 rear 12.4-24correct |
| Top speed | 26.7 km/hcorrect |
| Turning radius | 2,710 mmcorrect |
| System voltage | 12 Vcorrect |
Working data
| Lifting capacity | 1,200 kgcorrect |
|---|---|
| Pump flow | 50.3 l/mincorrect |
| Fuel tank capacity | 40.1 lcorrect |
| PTO output | 28 hpcorrect |
Other data
| Cab height | 2,307.3correct |
|---|
Where this model stands
Power-to-weight ratio: 17 kW/t (25 kW / 1.5 t)
Power class: Compact (< 40 hp)
Stronger than 21% of the tractors in the register — out of 15,105 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota L3430GST have?
The Kubota L3430GST delivers 35.6 hp.
How much does the Kubota L3430GST weigh?
The unladen weight is 1,480 kg.
What engine does the Kubota L3430GST have?
3 cylinders, 1,647 cm³ displacement.
How fast does the Kubota L3430GST go?
Top speed is 26.7 km/h.
What is the PTO output of the Kubota L3430GST?
PTO output is 28 hp.
How much does the rear linkage of the Kubota L3430GST lift?
The rear linkage lifts 1,200 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
