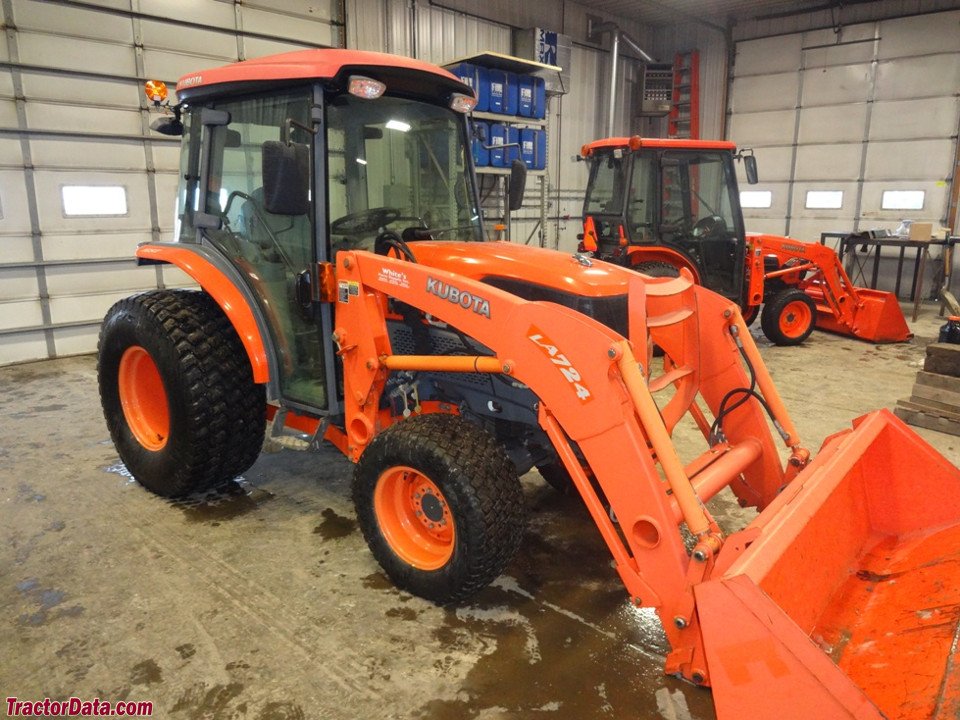

Kubota L3540GST 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Kubota L3540GST belongs to the Kubota 4WD Tractor series. Under the bonnet works a three-cylinder engine displacing 1.8 litres, producing 38 hp (26.1 kW). With a rated speed of 2,700 rpm, it is built for pulling power, not for revving.
At 27 km/h, that is as fast as it goes. Empty, it weighs 1,495 kg.
Within the range, rated power spans from 18.2 to 116 hp; with 37.5 hp, the L3540GST sits in the mid-field. Directly alongside are the L3430HSTC with 35.6 hp below and the L3901-4WD with 38 hp above.
Kubota – other models: the collective page of tractors outside the named ranges, from the B and L compacts (B7100, L3350) through the M range to the M7 and the smallest tractors of the 1970s, 9 to 129 kW, Kubota engines of 0.5 to 6.1 litres
This page gathers the Kubota tractors the register could not assign to a named range – the Osaka group that began in 1890 as a foundry, built its first tractor in 1960 and came to North America and Europe with compact tractors in the 1970s, where it dominates the class under 50 hp to this day. The type logic: the letter gives the range – B for the compacts under 30 hp, L for the mid-range up to 60 hp, M for the full-size tractors above, BX and GR for lawn tractors – the number roughly the hp class (B7100 about 16 hp, L3350 about 33 hp, M9540 about 95 hp), D and DT four-wheel drive, HST the hydrostatic transmission, GL, GX and X equipment lines; since 2014 Kubota has also built tractors up to 170 hp with the M7 range from the Bierne plant in France. The engines are throughout Kubota's own diesels – the D and V series of 0.5 to 6.1 litres, which Bobcat, Manitou and many other makers also source.
Read on 3 more paragraphs
The register lists here 657 versions with 8.9 to 129 kW from two- to five-cylinders of 500 to 6,129 cm³, PTO outputs from 14 to 140 hp, lift capacities from 300 to 5,350 kg, unladen weights from 440 to 7,350 kg, lengths from 1,800 to 4,940 mm and widths from 900 to 2,795 mm.
Kubota is the world's largest maker of compact tractors and market leader in Japan, North America and Southeast Asia; in Europe the brand gained a foothold through municipalities, horticulture and hobby farms and is growing into agriculture with the M range.
On used tractors, operating hours, engine condition (Kubota diesels are regarded as long-lived), hydrostat or clutch, four-wheel-drive clutch, front loader and mower PTO, on younger models the exhaust aftertreatment count; parts run through the dense Kubota network.
Sources: Kennwerte der Modelle Kubota (weitere Modelle), Kubota Europe (Hersteller)
Technical data
Engine
| Engine model | E-TVCScorrect |
|---|---|
| Power | 37.5 hp (26.1 kW)correct |
| Rated speed | 2,700 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,825.5 cm³correct |
| Aspiration | naturalcorrect |
Dimensions and weights
| Length | 2,920 mmcorrect |
|---|---|
| Unladen weight | 1,495 kgcorrect |
Drivetrain and chassis
| Gearbox type | GSTcorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 8correct |
| Tyre size | front 7.2-16 rear 12.4-24correct |
| Top speed | 26.7 km/hcorrect |
| Turning radius | 2,710 mmcorrect |
Working data
| Lifting capacity | 1,200 kgcorrect |
|---|---|
| Pump flow | 50.3 l/mincorrect |
| Fuel tank capacity | 44.3 lcorrect |
Other data
| Cab height | 2,465.8correct |
|---|---|
| PTO output | 30 hpcorrect |
| System voltage | 12 Vcorrect |
More machines with this engine (E-TVCS, 24)
Where this model stands
Power-to-weight ratio: 17.5 kW/t (26 kW / 1.5 t)
Power class: Compact (< 40 hp)
Stronger than 22% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota L3540GST have?
The Kubota L3540GST delivers 37.5 hp.
How much does the Kubota L3540GST weigh?
The unladen weight is 1,495 kg.
What engine does the Kubota L3540GST have?
3 cylinders, 1,826 cm³ displacement.
How fast does the Kubota L3540GST go?
Top speed is 26.7 km/h.
What is the PTO output of the Kubota L3540GST?
PTO output is 30 hp.
How much does the rear linkage of the Kubota L3540GST lift?
The rear linkage lifts 1,200 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
