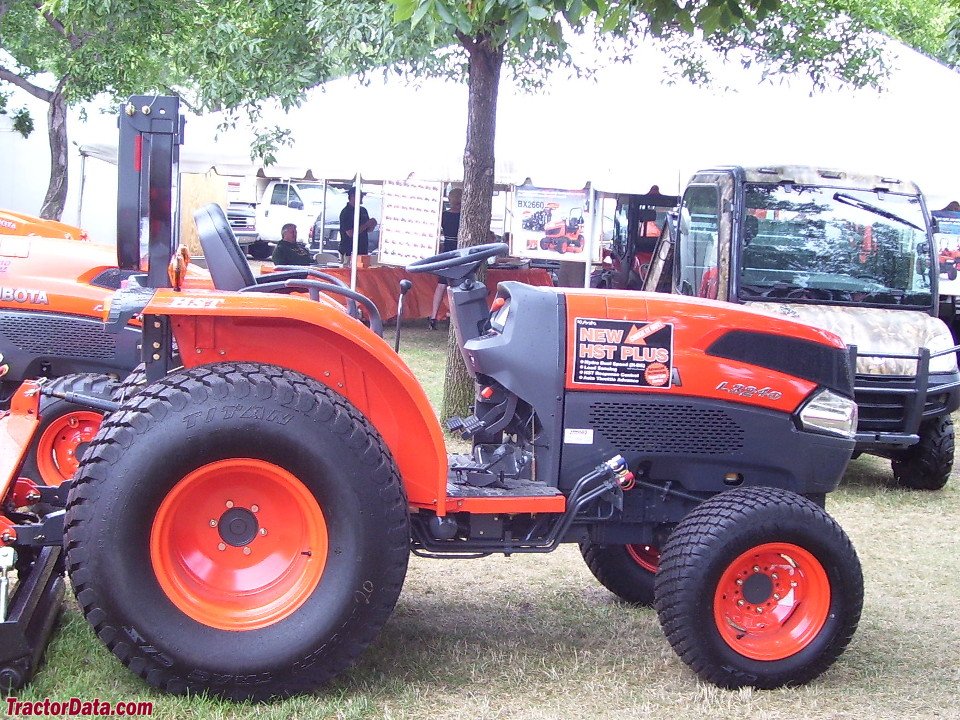

Kubota L3240GST 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Kubota L3240GST is a tractor from the Kubota 4WD Tractor series. Power comes from a three-cylinder engine; from 1.6 litres it draws 34 hp (23.9 kW). With a rated speed of 2,700 rpm, it is built for pulling power, not for revving.
At 27 km/h, that is as fast as it goes. Empty, it weighs 1,495 kg.
Within the range, rated power spans from 18.2 to 116 hp; with 34.5 hp, the L3240GST sits in the lower third. Directly alongside are the L3301-4WD with 33.5 hp below and the L3400 Gear with 35.2 hp above.
Technical data
Engine
| Engine model | E-TVCScorrect |
|---|---|
| Power | 34.5 hp (23.9 kW)correct |
| Rated speed | 2,700 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,646.9 cm³correct |
| Aspiration | naturalcorrect |
Dimensions and weights
| Length | 2,920 mmcorrect |
|---|---|
| Unladen weight | 1,495 kgcorrect |
Drivetrain and chassis
| Gearbox type | GSTcorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 8correct |
| Tyre size | front 7.2-16 rear 12.4-24correct |
| Top speed | 26.7 km/hcorrect |
| Turning radius | 2,710 mmcorrect |
| System voltage | 12 Vcorrect |
Working data
| Lifting capacity | 1,200 kgcorrect |
|---|---|
| Pump flow | 50.3 l/mincorrect |
| Fuel tank capacity | 44.3 lcorrect |
| PTO output | 26 hpcorrect |
Other data
| Cab height | 2,465.8correct |
|---|
More machines with this engine (E-TVCS, 24)
Where this model stands
Power-to-weight ratio: 16 kW/t (24 kW / 1.5 t)
Power class: Compact (< 40 hp)
Stronger than 19% of the tractors in the register — out of 14,914 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota L3240GST have?
The Kubota L3240GST delivers 34.5 hp.
How much does the Kubota L3240GST weigh?
The unladen weight is 1,495 kg.
What engine does the Kubota L3240GST have?
3 cylinders, 1,647 cm³ displacement.
How fast does the Kubota L3240GST go?
Top speed is 26.7 km/h.
What is the PTO output of the Kubota L3240GST?
PTO output is 26 hp.
How much does the rear linkage of the Kubota L3240GST lift?
The rear linkage lifts 1,200 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
