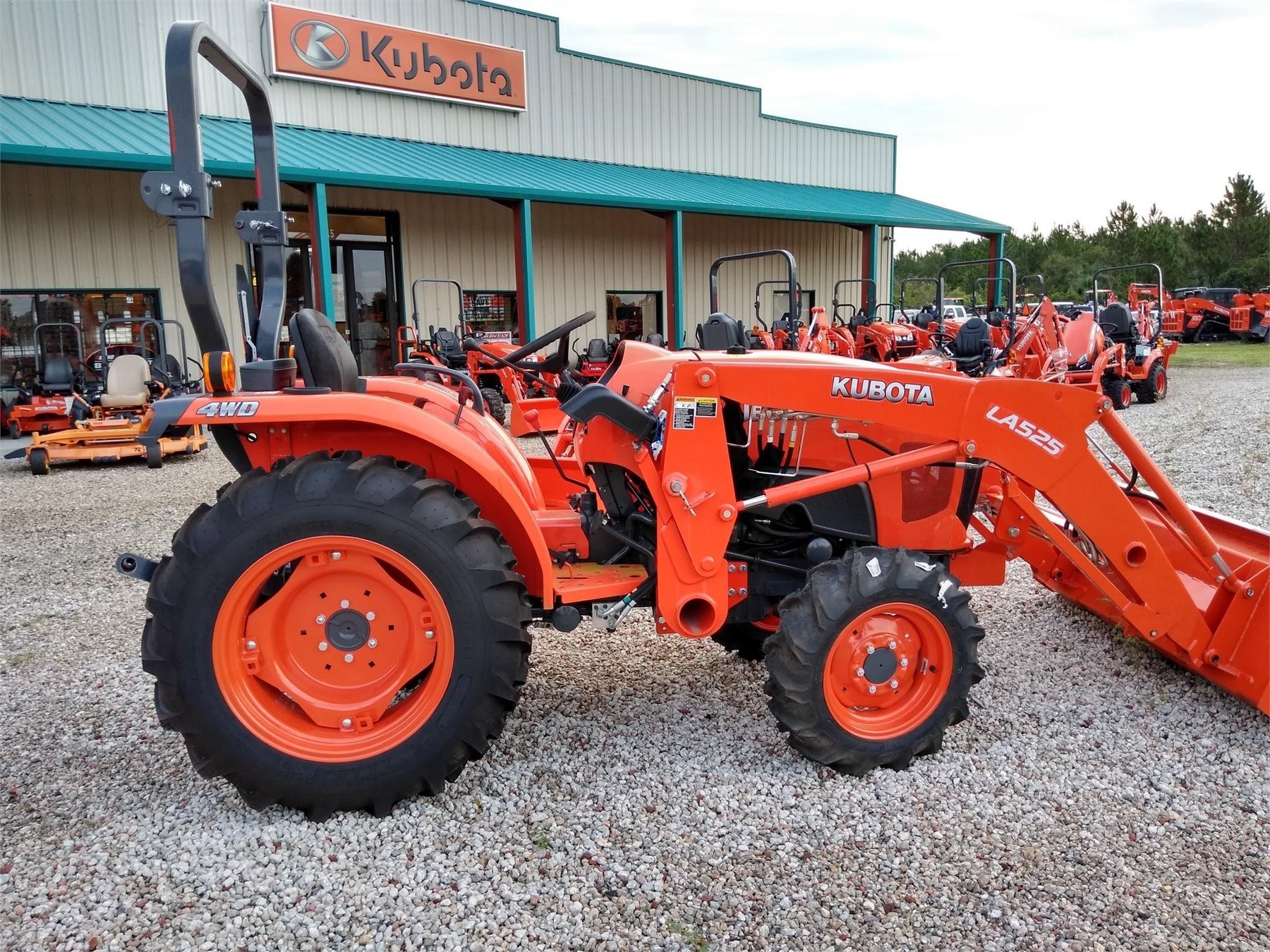

Kubota L3301-4WD 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Kubota L3301-4WD is a tractor from the Kubota 4WD Tractor series. Power comes from a three-cylinder engine; from 1.8 litres it draws 34 hp (23.4 kW).
It will not go faster than 21 km/h — a working pace, not a travelling one. It measures 2.74 m in length. Unladen, it tips the scales at 1,240 kg.
Within the range, rated power spans from 18.2 to 116 hp; with 33.5 hp, the L3301-4WD sits in the lower third. Directly alongside are the L3130HST with 32.5 hp below and the L3240DT with 34.5 hp above.
Technical data
Engine
| Engine make | KUBOTAcorrect |
|---|---|
| Engine model | D1803-CR-E4correct |
| Power | 33.5 hp (23.4 kW)correct |
| Torque | 101.8correct |
| Cylinders | 3correct |
| Displacement | 1,825.5 cm³correct |
| Coolant capacity | 6.1 lcorrect |
Dimensions and weights
| Length | 2,740.2correct |
|---|---|
| Wheelbase | 1,610.1correct |
| Ground clearance | 340.1correct |
| Unladen weight | 1,240 kgcorrect |
Drivetrain and chassis
| Gearbox type | manual gearbox Transmission -Gear shift with synchromesh gearbox shuttlecorrect |
|---|---|
| Forward gears | 8correct |
| Reverse gears | 8correct |
| Top speed | 21.2 km/hcorrect |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 23.8 l/mincorrect |
|---|---|
| Fuel tank capacity | 42 lcorrect |
Other data
| Height | 2,331.7correct |
|---|
Where this model stands
Power-to-weight ratio: 18.9 kW/t (23 kW / 1.2 t)
Power class: Compact (< 40 hp)
Stronger than 19% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota L3301-4WD have?
The Kubota L3301-4WD delivers 33.5 hp.
How much does the Kubota L3301-4WD weigh?
The unladen weight is 1,240 kg.
What engine does the Kubota L3301-4WD have?
3 cylinders, 1,826 cm³ displacement.
How fast does the Kubota L3301-4WD go?
Top speed is 21.2 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
