Kubota EK1-221
Series: EK1
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

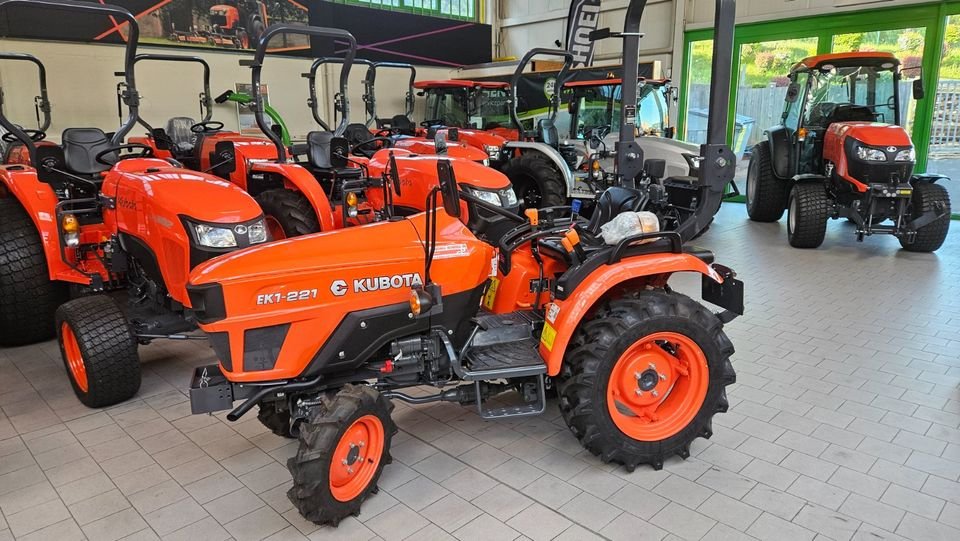

Kubota EK1-221: compact three-cylinder diesel with 16 kW for smaller farmland, fruit and vegetable growing, and municipal service
Like many Kubota models, the EK1-221 belongs to the class of compact multi-purpose tractors designed for smaller agricultural plots, fruit and vegetable growing, and municipal use. This size of machine is deliberately built for manoeuvrability and low weight, so that it can also work on soft or terraced ground without causing significant soil compaction.
Read on 3 more paragraphs
The engine is a water-cooled three-cylinder diesel of 952 cm³ displacement, delivering 16 kW, or 22 hp, at 2,600 rpm. The front hydraulics lift up to 800 kg, and the design top speed is 20 km/h.
At a top speed of 20 km/h, the EK1-221 falls into driving licence category L. The small-displacement three-cylinder engine, at just over 300 cm³ per cylinder, is tuned for high revs rather than large pulling power, as is typical for mowers, rotary tillers and light transport work in narrow row crops. Water cooling also keeps the running temperature more even during longer tasks than an air-cooled engine of this size would allow.
When buying a used small tractor of this class, the checklist should include the PTO shaft for wear on the splines, the front hydraulics' hoses for cracks, and the tyres for even wear. The radiator should be checked for dirt build-up and leaks, since small cooling systems are more sensitive to leaves and dust than larger ones. Since such tractors often run continuously on small plots, the condition of the seat and controls frequently says more about actual use than the hour counter alone.
Sources: SpecCodex-Register: Kennwerte des Modells Kubota EK1-221, Kubota (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 22 hp (16 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 952 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Ground clearance | 296 mmcorrect |
|---|
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 9v + 3rcorrect |
| Front tyres | 5.00 - 12correct |
| Rear tyres | 8.3 - 18correct |
| Top speed | 20 km/hcorrect |
Working data
| Lifting capacity | 800 kgcorrect |
|---|
Frequently asked questions
How much power does the Kubota EK1-221 have?
The Kubota EK1-221 delivers 22 hp.
What engine does the Kubota EK1-221 have?
3 cylinders, 952 cm³ displacement, Diesel.
How fast does the Kubota EK1-221 go?
Top speed is 20 km/h.
How much does the rear linkage of the Kubota EK1-221 lift?
The rear linkage lifts 800 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 15 individual figures for this model. They come from 3 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Tractor in 3D section
Turn the model, look inside and click an assembly — each one is explained.
