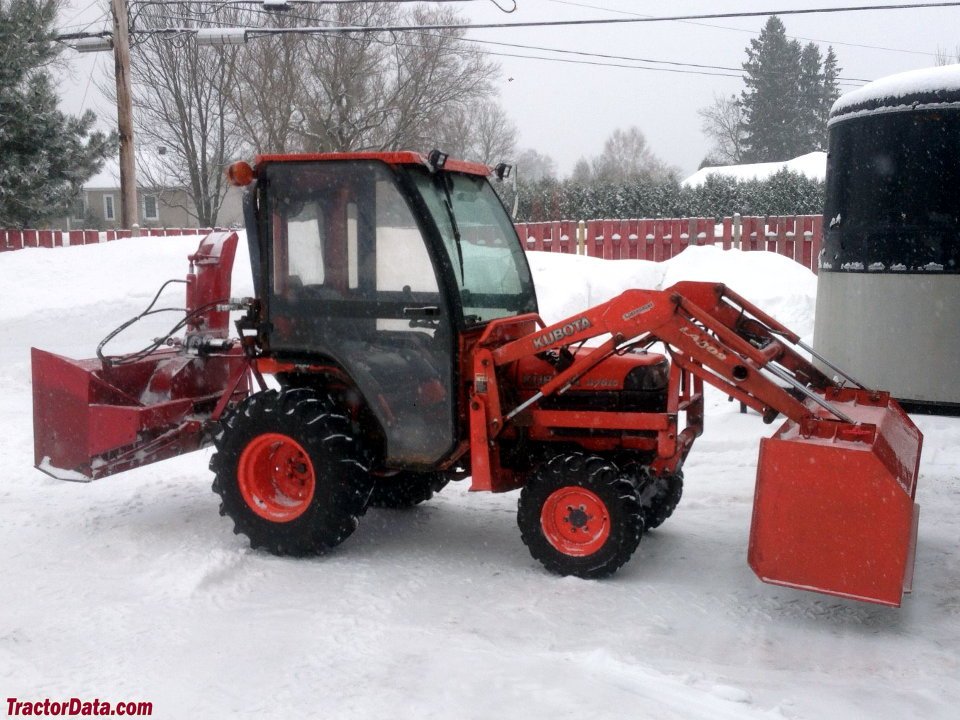

Kubota B7610HSD 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Kubota B7610HSD is a tractor from the Kubota 4WD Tractor series. The three-cylinder engine, displacing 1.1 litres, produces 24 hp (17.9 kW). Rated power arrives at 2,600 rpm — the engine pulls from low down rather than needing to be revved.
It will not go faster than 17 km/h — a working pace, not a travelling one. Unladen, it tips the scales at 620 kg.
Within the range, rated power spans from 18.2 to 116 hp; with 24.3 hp, the B7610HSD sits at the bottom end. Directly alongside are the BX24 with 23.3 hp below and the L2501-4WD with 25.1 hp above.
Technical data
Engine
| Engine model | D1105-E-D16correct |
|---|---|
| Power | 24.3 hp (17.9 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,122.5 cm³correct |
| Aspiration | E-TVCS liquid cooledcorrect |
| Coolant capacity | 4.2 lcorrect |
| Engine oil capacity | 3 lcorrect |
Dimensions and weights
| Ground clearance | 325.1correct |
|---|---|
| Unladen weight | 620 kgcorrect |
Drivetrain and chassis
| Gearbox type | HST 2 rangecorrect |
|---|---|
| Forward gears | 2correct |
| Reverse gears | 2correct |
| Tyre size | front 7-12 rear 11.2-16correct |
| Top speed | 16.6 km/hcorrect |
Working data
| Pump flow | 26.5 l/mincorrect |
|---|---|
| Fuel tank capacity | 20.1 lcorrect |
Where this model stands
Power-to-weight ratio: 28.9 kW/t (18 kW / 0.6 t)
Power class: Compact (< 40 hp)
Stronger than 11% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota B7610HSD have?
The Kubota B7610HSD delivers 24.3 hp.
How much does the Kubota B7610HSD weigh?
The unladen weight is 620 kg.
What engine does the Kubota B7610HSD have?
3 cylinders, 1,122 cm³ displacement.
How fast does the Kubota B7610HSD go?
Top speed is 16.6 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
