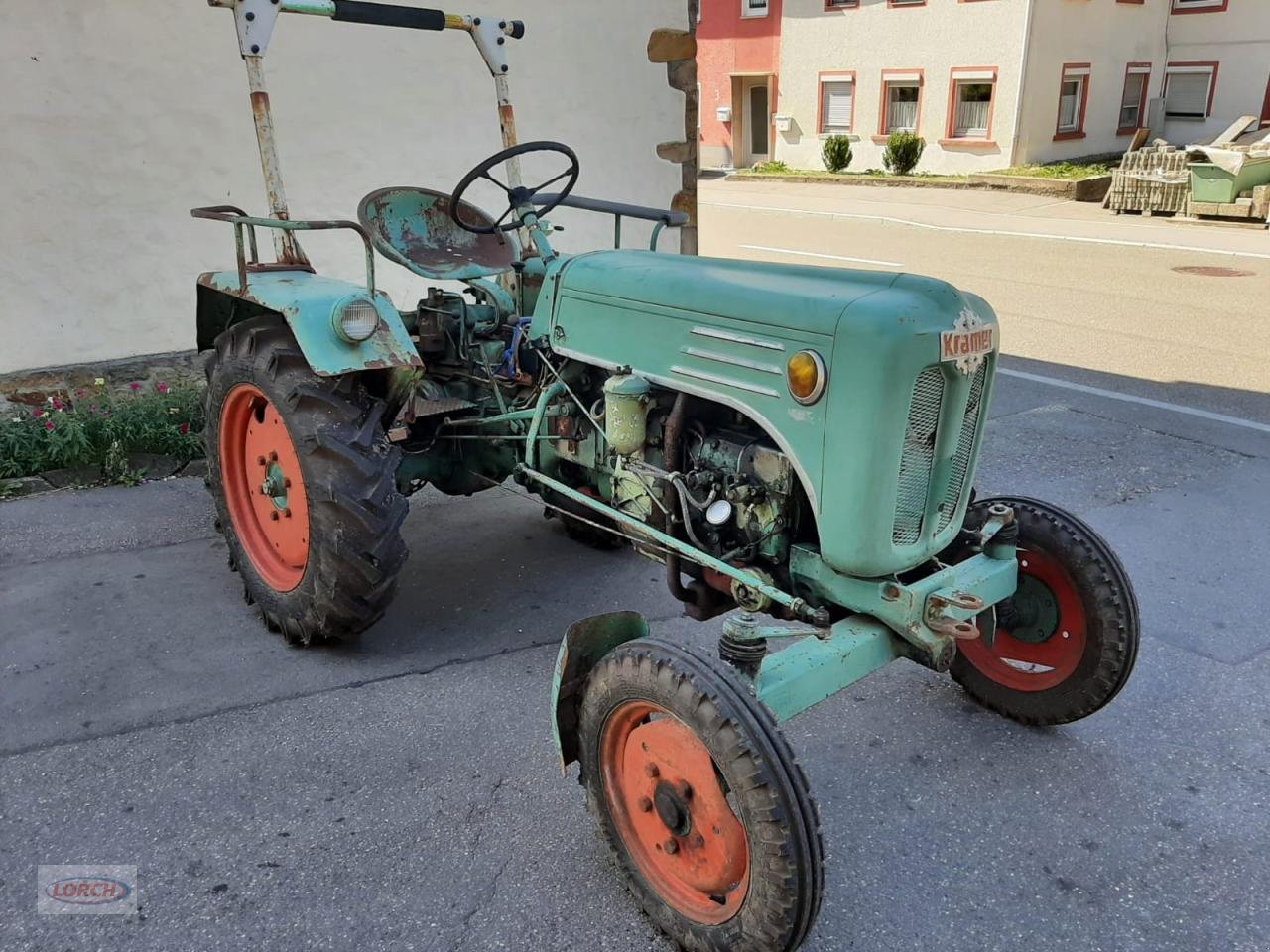

Kramer KWD 250
Built: 6/1958–6/1959 · Series: KW-Reihe
More machines from model year 1958
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Kramer KW Series – narrow-track tractors from Überlingen for vineyard and orchard work, KW 160 to KWD 250, two-cylinder diesels from 1.3 to 1.8 litres, 11.7 to 18 kW
Kramer built the KW Series at its Überlingen plant on Lake Constance as narrow tractors for vineyards, orchards and specialty crops; the KW 160 and KW 200 carry the Schmalspur (narrow-track) designation directly in their name. All four models – KW 160, KW 200, KW 220 and KWD 250 – run two-cylinder diesel engines. Kramer later discontinued tractor production and focused on wheel loaders, which the company still builds today as Kramer-Werke.
Read on 3 more paragraphs
The register lists here 4 versions with 11.7 to 18 kW (16 to 25 hp) from two-cylinder engines displacing 1,305 to 1,843 cc. Unladen weights sit at 1,500 to 1,550 kg, length, width and height range from 2,820 to 2,950 mm, 1,120 to 1,580 mm and 1,550 to 1,580 mm, rated speed from 1,600 to 2,200 rpm.
With their narrow track width, the Kramer tractors were designed for row crops, where wider standard tractors could not fit between vine rows or orchard lanes, competing with similar narrow-track models from Fendt, Hürlimann and Holder. The narrow build also eased manoeuvring through tight farmyard passages.
When buying these compact specialty-crop tractors used, check the condition of the steering and front axle given the narrow track, the clutch and gearbox, the tightness of the hydraulics, and corrosion on bodywork after often damp vineyard work; parts are available through specialist dealers.
Sources: SpecCodex register, model data: Kramer KW-Reihe, Kramer-Werke (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 25 hp (18 kW)correct |
| Rated speed | 1,800 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,843 cm³correct |
| Bore | 95 mmcorrect |
| Stroke | 130 mmcorrect |
| Injection pressure | 160 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,950 mmcorrect |
|---|---|
| Width | 1,580 mmcorrect |
| Height | 1,570 mmcorrect |
| Wheelbase | 1,887 mmcorrect |
| Ground clearance | 380 mmcorrect |
| Unladen weight | 1,550 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5/1 or 10/2correct |
| Forward gears | 10correct |
| Reverse gears | 2correct |
| Front tyres | 5.00-16 ASFcorrect |
| Rear tyres | 10-28 AScorrect |
| Top speed | 19.8 km/hcorrect |
Working data
| Fuel tank capacity | 36 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 18correct |
Where this model stands
Power-to-weight ratio: 11.6 kW/t (18 kW / 1.6 t)
Power class: Compact (< 40 hp)
Stronger than 11% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kramer KWD 250 have?
The Kramer KWD 250 delivers 25 hp.
How much does the Kramer KWD 250 weigh?
The unladen weight is 1,550 kg.
What engine does the Kramer KWD 250 have?
2 cylinders, 1,843 cm³ displacement, Diesel.
How fast does the Kramer KWD 250 go?
Top speed is 19.8 km/h.
What are the dimensions of the Kramer KWD 250?
2,950 mm × 1,580 mm × 1,570 mm.
When was the Kramer KWD 250 built?
Production years: 6/1958–6/1959.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
