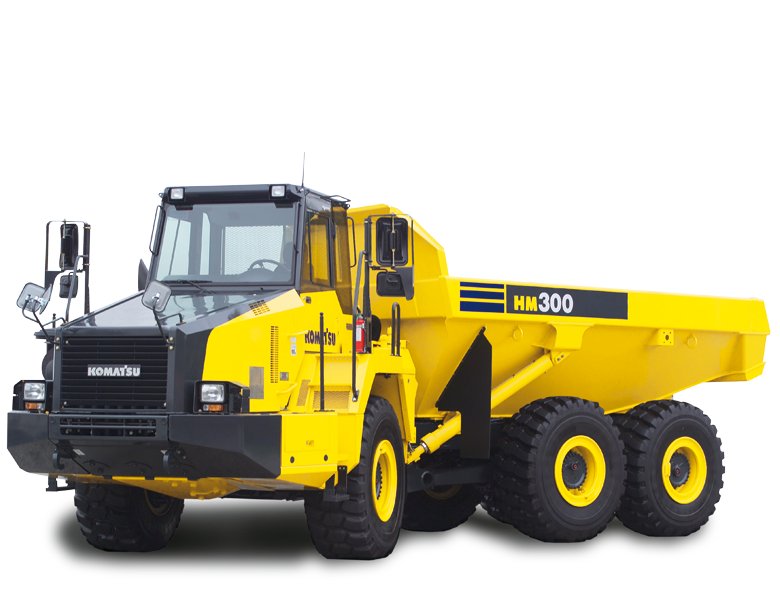

Komatsu HM300-2 – specifications

Series: Komatsu Articulated Dump Truck

With the HM300-2, Komatsu offers a model from the Komatsu Articulated Dump Truck series. The engine delivers 344.7 hp (245.3 kW), has 6 cylinders, with a displacement of 11,044.9 cm³. Rated speed is 2,000 rpm. The machine is 3,520 mm high. Ground clearance is 512.1 mm. Top speed is 59 km/h. The engine fitted is the Komatsu SAA6D125E-5. The Komatsu Articulated Dump Truck series covers 12 models. Rated output within it ranges from 251.5 to 459.3 hp; the HM300-2 sits in the middle of that range with 344.7 hp. Its immediate neighbours are the HM400-3 below it with 342.7 hp and the HM350-1 above it with 405.2 hp. 1218 Komatsu models across 47 series are on record.

Build year not documented · Data origin: Directory data · sources

Source: komatsu.eu

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Komatsu articulated dump trucks HA250 to HM400 – the number as payload in tenths of a tonne: HA of the 1990s, HM300 to HM400 since 2001, generations -1 to -5, SAA6D125 and SAA6D140 engines, 179 to 334 kW

Komatsu's articulated haulers carry two codes: HA for the range of the 1990s (HA250-3, HA270-3) and HM for the generation from 2001 (HM300, HM350, HM400), with which Komatsu seriously attacked the market of the 30 to 40 tonners. The number gives the payload in tenths of a tonne – HM300 carries about 30 t, HM350 35 t, HM400 40 t – the digit after the hyphen the generation from -1 to -5, where the -5 brings Stage IV; M0 is a market variant. The engines are Komatsu's own six-cylinders from the excavator programme: S6D125 and SAA6D125 with 11 litres in the HM300, SAA6D140 with 15.2 litres in the HM350 and HM400.

Read on 3 more paragraphs

The register lists 12 versions with 179 to 334.1 kW from six-cylinders of 11,001 to 15,242 cm³, torque from 1,600 to 1,990 Nm at 2,000 to 2,200 rpm, lengths from 9,303 to 11,302 mm, widths from 2,502 to 3,536 mm and heights from 3,340 to 6,520 mm.

Komatsu's hallmarks are drive to all six wheels with engageable locks, traction control that regulates wheel slip via the brakes and the powershift transmission with lock-up converter; the HM400s run in quarries, earthworks and small open-pit mines where rigid-frame trucks have too little ground clearance.

On used trucks, operating hours, play in articulation joint and oscillation bearings, the condition of body cylinders, brakes and transmission and the tyres, which are the biggest cost item on these vehicles, are what count; parts run through Komatsu dealers worldwide.

Sources: SpecCodex register, model data: Komatsu knickgelenkte Muldenkipper, Komatsu Europe knickgelenkte Muldenkipper (manufacturer)

Technical data

Engine

Engine modelKomatsu SAA6D125E-5correct
Power344.7 hp (245.3 kW)correct
Rated speed2,000 rpmcorrect
Cylinders6correct
Displacement11,044.9 cm³correct
AspirationTurbo-charged, after-cooled, cooled EGRcorrect

Dimensions and weights

Length10,442.4 mmcorrect
Width2,901.7 mmcorrect
Height3,520 mmcorrect
Ground clearance512.1 mmcorrect

Drivetrain and chassis

Top speed59 km/hcorrect

Frequently asked questions

How much power does the Komatsu HM300-2 have?

The Komatsu HM300-2 delivers 344.7 hp.

What engine does the Komatsu HM300-2 have?

The Komatsu HM300-2 has 6 cylinders and 11,044.9 cm³ displacement.

How fast does the Komatsu HM300-2 go?

The top speed of the Komatsu HM300-2 is 59 km/h.

What are the dimensions of the Komatsu HM300-2?

Dimensions of the Komatsu HM300-2: length 10,442.4 mm, width 2,901.7 mm, height 3,520 mm.

Used listings – figures from public listings

In November 2026, speccodex recorded 19 public used-machine listings for Komatsu HM300-2 on one platform. Asking prices ranged from €23,500 to €44,000 (median €34,102), years of manufacture between 2006 and 2017. 9 of the listings were auctions.

Operating hours stated in the listings (median) by machine age: 8–12 years: 13,480 h (6 listings); over 12 years: 15,605 h (11 listings).

Offered among others in Poland (20%), the United Kingdom (20%) and Luxembourg (10%); shares refer to listings that state a location.

Asking prices are sellers' demands, not achieved sale prices. Basis: public listings, recorded and analysed by speccodex. As of: 18 Nov 2026. Sellers usually do not state whether prices are net or gross.

More machines with this engine (Komatsu SAA6D125E-5, 3)

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
