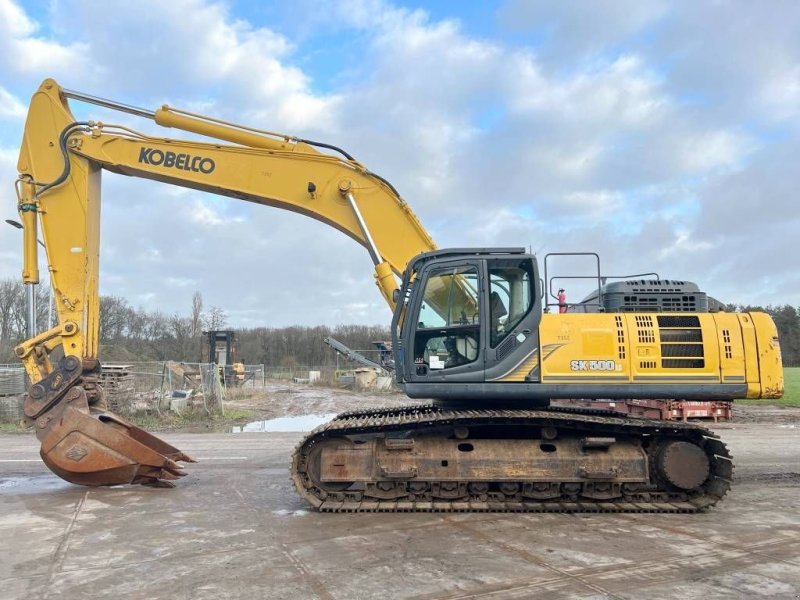

Kobelco SK500LC-9

Series: Kobelco Hydraulic Excavator

Source: https://www.technikboerse.com/gebraucht/kettenbagger-756/kob

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Kobelco SK500LC-9 is a model in the Kobelco Hydraulic Excavator series. The engine delivers 257.3 kW, has 6 cylinders, with a displacement of 10,520.5 cm³. Rated speed is 1,850 rpm. The unladen weight is 50,500 kg. The tank holds 640.1 litres. The hydraulic tank holds 538.3 litres. Working pressure is 313.7 bar. The cooling system holds 47.7 litres. The oil fill is 42.8 litres. The Kobelco Hydraulic Excavator series covers 52 models. Rated output within it ranges from 62.6 to 380.3 kW; the SK500LC-9 sits in the upper part of that range with 257.3 kW. Its immediate neighbours are the SK480LC below it with 234.9 kW and the SK500LC-10 above it with 271.1 kW. 98 Kobelco models across 6 series are on record. The model is listed under Excavators & compaction. 13 verified figures from 1 source are on file.

Technical data

Engine

Power257.3 kWcorrect
Rated speed1,850 rpmcorrect
Cylinders6correct
Displacement10,520.5 cm³correct
Coolant capacity47.7 lcorrect
Engine oil capacity42.8 lcorrect

Dimensions and weights

Length1,010.9correct
Width3,505.2correct
Unladen weight50,500 kgcorrect

Working data

Hydraulic oil capacity538.3 lcorrect
Hydraulic pressure313.7 barcorrect
Fuel tank capacity640.1 lcorrect

Other data

Cab height3,383.3correct

Where this model stands

Power-to-weight ratio: 5.1 kW/t (257 kW / 50.5 t)

Stronger than 88% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Kobelco SK500LC-9 have?

The Kobelco SK500LC-9 delivers 257 kW.

How much does the Kobelco SK500LC-9 weigh?

The unladen weight is 50,500 kg.

What engine does the Kobelco SK500LC-9 have?

6 cylinders, 10,520 cm³ displacement.

What are the dimensions of the Kobelco SK500LC-9?

1,011 mm × 3,505 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
