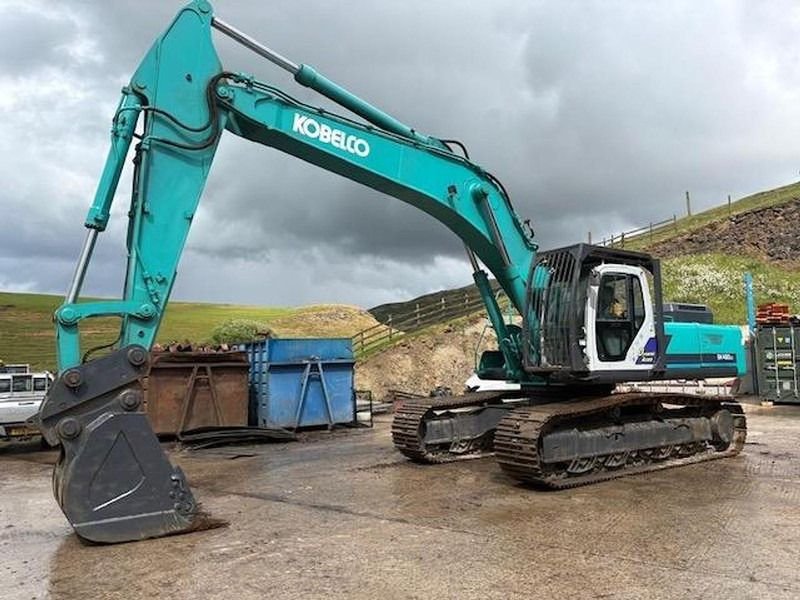

Kobelco SK480LC
Series: Kobelco Hydraulic Excavator
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Kobelco SK Excavators: What SR, LC and NLC Mean
Kobelco marks its crawler excavators with the SK prefix. The "Kobelco Hydraulic Excavator" bucket holds 52 models, from compact machines up to the 850 class (SK850LC), spanning 62 to 380 kW.
Read on 4 more paragraphs
LC denotes a wider, elongated undercarriage (more ground contact on soft terrain), while NLC ("Narrow Long Crawler") is the narrower counterpart for tight jobsites — both appear on models such as the SK350LC or SK480LC. SR ("Short Radius") is Kobelco's own design for minimal rear overhang: on SR models like the "115SR" or "135SR LC", the tail extends only about 185 mm past the tracks, which suits confined urban sites.
A separate ED line, such as the ED150 or ED190, combines an excavator with a 6-way dozer blade in one machine.
The digit after the hyphen (e.g. SK200-8) marks the generation — Kobelco has now reached generation 10 and 11, each bringing revised engine and emissions technology. When buying used, the generation number is worth checking: parts and control software aren't always compatible across generations.
Cylinder count (3 to 6) and displacement (952 to 15,241 cm³) further indicate the size class.
Sources: Kennwerte der Modelle Kobelco Hydraulic Excavator, – Short Rear Swing Excavators | KOBELCO USA, – Kobelco introduces Generation 10 series excavators, – Kobelco ED150 Blade Runner Hydraulic Excavator, – Kobelco next generation excavator redesigns add standard features
Technical data
Engine
| Engine model | 6D24-TLA2Bcorrect |
|---|---|
| Power | 234.9 kWcorrect |
| Rated speed | 2,000 rpmcorrect |
| Displacement | 11,946.2 cm³correct |
| Coolant capacity | 48.1 lcorrect |
| Engine oil capacity | 49.2 lcorrect |
Dimensions and weights
| Ground clearance | 515.1correct |
|---|---|
| Unladen weight | 49,000 kgcorrect |
Working data
| Pump flow | 770.3 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 660.2 lcorrect |
| Hydraulic pressure | 255.1 barcorrect |
| Fuel tank capacity | 650.3 lcorrect |
Other data
| Cab height | 3,322.3correct |
|---|
Where this model stands
Power-to-weight ratio: 4.8 kW/t (235 kW / 49 t)
Stronger than 87% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kobelco SK480LC have?
The Kobelco SK480LC delivers 235 kW.
How much does the Kobelco SK480LC weigh?
The unladen weight is 49,000 kg.
What engine does the Kobelco SK480LC have?
11,946 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
