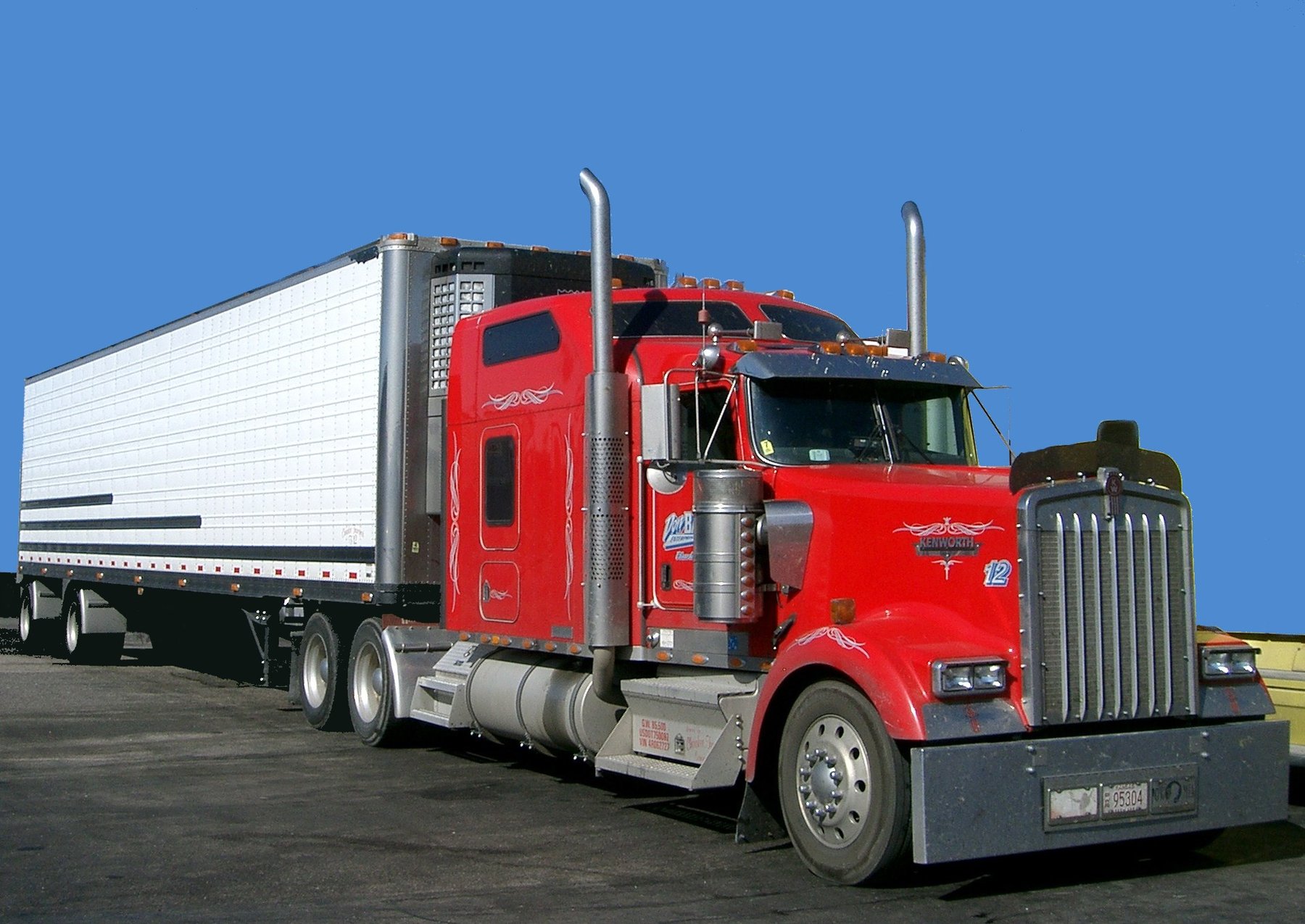

Kenworth W900L
Built: 1990-2004 · Series: W9 Series
More machines from model year 1990
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Kenworth W900 Series – the icon of the American long-nose semi tractor: six- to twelve-cylinder engines from 266 to 317 kW, gross weights up to 26 tonnes
The W900 is Kenworth's classic long-nose semi tractor, built in essentially unchanged basic form since 1961 and, alongside the Peterbilt 379, the embodiment of American long-haul trucking. Kenworth has belonged to the PACCAR group since 1945 and builds the W900 at its Chillicothe, Ohio plant; the A, B and L suffixes in model designations such as W900A, W900B and W900L mark successive equipment generations, with L denoting an extended bonnet.
Read on 3 more paragraphs
The register lists 13 versions with six- to twelve-cylinder engines from 266.5 to 317 kW and 14,000 to 15,365 cm³, kerb weights from 7,780 to 16,580 kg, gross vehicle weights from 11,990 to 26,000 kg, lengths from 7,840 to 9,300 mm and widths from 2,400 to 2,550 mm.
The W900 is common in US and Canadian long-haul trucking and heavy haulage, and its classic looks, with visible exhaust stacks and a long bonnet, also make it prized as a show truck and basis for custom builds; it competes directly with the Peterbilt 389 and the Freightliner Classic.
When buying used, check engine mileage and service history on the diesel, the condition of the clutch and gearbox, frame cracks around the fifth-wheel area, and on older examples corrosion of the cab. Engine and driveline parts are well supported through the PACCAR and Kenworth dealer network in North America.
Sources: SpecCodex register, model data: Kenworth W9 Series, Kenworth (manufacturer)
Technical data
Engine
| Power | 266.5 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 14,600 cm³correct |
Dimensions and weights
| Length | 8,920 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 7,340 mmcorrect |
| Unladen weight | 9,420 kgcorrect |
| Gross vehicle weight | 26,000 kgcorrect |
Drivetrain and chassis
| Gears | 12.5correct |
|---|---|
| Wheels | 10correct |
| Top speed | 85 km/hcorrect |
Where this model stands
Power-to-weight ratio: 28.3 kW/t (266 kW / 9.4 t)
Stronger than 46% of the trucks in the register — out of 25,242 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kenworth W900L have?
The Kenworth W900L delivers 266 kW.
How much does the Kenworth W900L weigh?
The unladen weight is 9,420 kg.
What is the gross vehicle weight of the Kenworth W900L?
26,000 kg.
What engine does the Kenworth W900L have?
6 cylinders, 14,600 cm³ displacement.
How fast does the Kenworth W900L go?
Top speed is 85 km/h.
What are the dimensions of the Kenworth W900L?
8,920 mm × 2,550 mm.
When was the Kenworth W900L built?
Production years: 1990-2004.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
