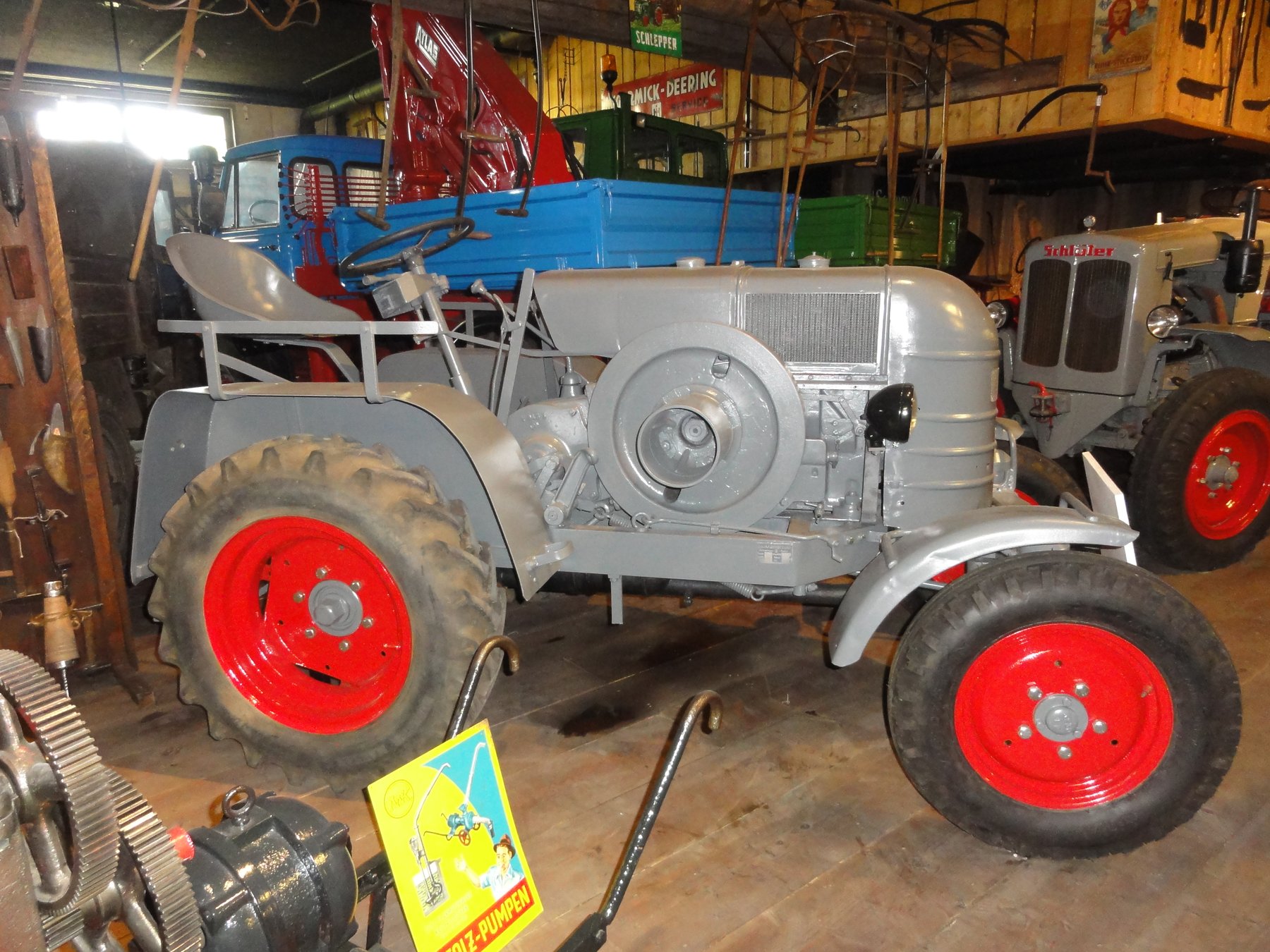

Josef Krümpel K 22
Built: 1938–1950 · Series: K
More machines from model year 1938
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Josef Krümpel K – small tractors of the K 22, K 25 and K 28 range: two-cylinder diesels of 2,198 to 2,660 cm³ displacement, 1,650 to 2,100 kg unladen weight, 1,450 to 1,500 rpm
The K range from the maker Josef Krümpel comprises three ascending power steps, the K 22, K 25 and K 28, whose numbers denote the respective power class; the K 22 with a rated output of about 16 kW matches the stated type figure of 22 (metric horsepower). All three models carry horizontal two-cylinder diesel engines and follow the classic formula of small post-war farm tractors in their build.
Read on 3 more paragraphs
The register lists here 3 versions with rated outputs up to 16.1 kW at 1,450 to 1,500 rpm, from horizontal two-cylinder diesels of 2,198 to 2,660 cm³. Unladen weights range from 1,650 to 2,100 kg, lengths from 2,710 to 2,750 mm, widths from 1,560 to 1,570 mm and a height of 1,750 mm; all three models run on diesel.
Small-series makers such as Krümpel met the post-war demand from smaller farms for affordable, easy-to-maintain tractors at a time when the big brands offered mainly larger, costlier models; such ranges usually stayed confined to regional markets and were built in modest numbers.
On a used purchase of these simple two-cylinder diesels, the condition of the injection pump and nozzles counts, the clutch and gearbox, the tightness of engine and cooling system, and rust on the frame and sheet-metal parts; since this is a small maker, parts must be sourced chiefly from salvage, reproduction and vintage-tractor hobbyist circles.
Sources: SpecCodex register, model data: Josef Krümpel K
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 22 hp (16.1 kW)correct |
| Rated speed | 1,450 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 2,198 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,750 mmcorrect |
|---|---|
| Width | 1,570 mmcorrect |
| Height | 1,750 mmcorrect |
| Wheelbase | 1,700 mmcorrect |
| Unladen weight | 1,650 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | V4+Rcorrect |
| Front tyres | 5.25-16correct |
| Rear tyres | 9-24correct |
| Top speed | 19 km/hcorrect |
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|---|
| Units built | ca. 20correct |
Where this model stands
Power-to-weight ratio: 9.8 kW/t (16 kW / 1.6 t)
Power class: Compact (< 40 hp)
Stronger than 9% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Josef Krümpel K 22 have?
The Josef Krümpel K 22 delivers 22 hp.
How much does the Josef Krümpel K 22 weigh?
The unladen weight is 1,650 kg.
What engine does the Josef Krümpel K 22 have?
2 cylinders, 2,198 cm³ displacement, Diesel.
How fast does the Josef Krümpel K 22 go?
Top speed is 19 km/h.
What are the dimensions of the Josef Krümpel K 22?
2,750 mm × 1,570 mm × 1,750 mm.
When was the Josef Krümpel K 22 built?
Production years: 1938–1950.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
