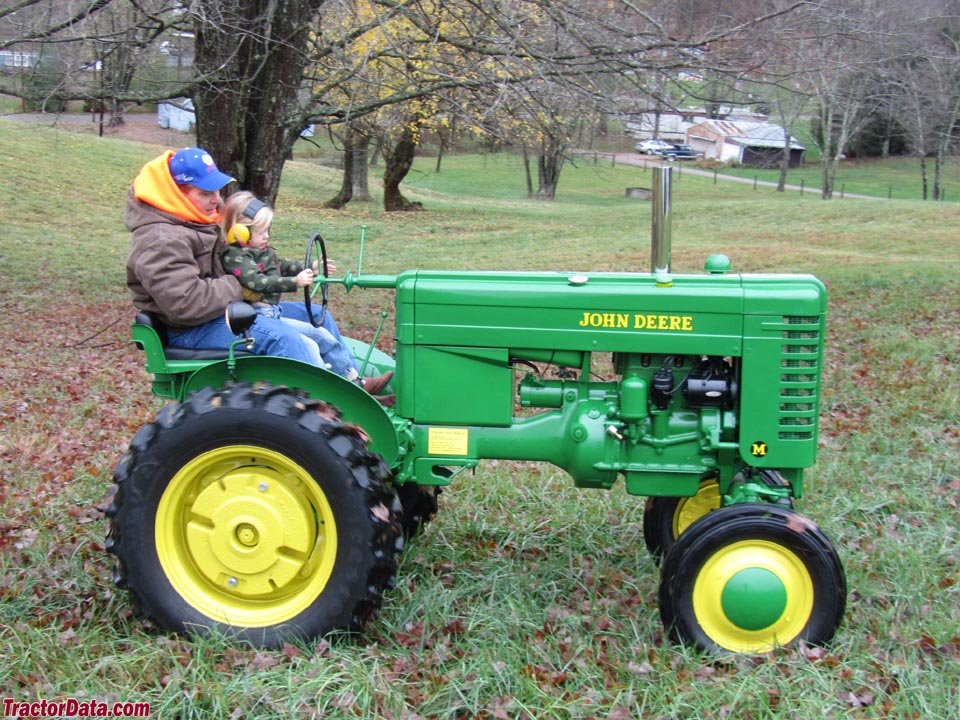

John Deere Modell-M
Built: 1947–1952 · Series: Letter Series
More machines from model year 1947
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
John Deere Letter Series (1923–1954) – the two-cylinder era: Model D as Deere's first own tractor, GP, A, B, G, H, L, M and R, the letter as model type, kerosene, petrol and the first diesel, all with two cylinders
The letter models are the tractors that made John Deere a tractor maker: the Model D of 1923 was the first tractor Deere designed itself in Waterloo after the company had bought the Waterloo Gasoline Engine Company and its Waterloo Boy in 1918, and it stayed in production for thirty years until 1953. The General Purpose of 1928 was the company's first row-crop tractor, the Model A of 1934 and Model B of 1935 the pre-war best sellers, the G of 1937 the large row-crop tractor, the H of 1939 the small one, the L of 1937 and M of 1947 the small tractors for vegetable growing and yard work, the R of 1949 Deere's first diesel, started with a petrol pony motor. At Deere the letter is not a size code but the model identifier – A is bigger than B, but G bigger than both. Common to all is the horizontal two-cylinder engine Deere stayed loyal to until 1960 and to which the tractors owe their nickname Johnny Popper; rated speeds lie between 800 and 1,550 rpm, fuels range from kerosene and distillate through petrol to the diesel of the R.
Read on 3 more paragraphs
The register lists 9 versions with 7.8 to 36.3 kW from two-cylinders of 927 to 7,613 cm³, unladen weights from 989 to 3,357 kg, lengths from 2,311 to 3,734 mm, widths from 1,245 to 2,150 mm and heights from 1,270 to 1,984 mm.
The letter models are North America's most-collected tractors; the Model A was built in over 300,000 units, the Model B in even more.
On used tractors, originality, compression and carburettor, ignition (magneto), clutch (hand clutch via flywheel), gearbox and sheet metal count; parts and reproductions are widely available through collector dealers.
Sources: SpecCodex register, model data: John Deere Letter Series, John Deere Model D (Wikipedia)
Technical data
Engine
| Fuel | Benzin/Kerosincorrect |
|---|---|
| Power | 20.7 hp (15.2 kW)correct |
| Rated speed | 1,650 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,647 cm³correct |
| Cooling | thermosiphon coolingcorrect |
Dimensions and weights
| Length | 2,591 mmcorrect |
|---|---|
| Width | 1,290 mmcorrect |
| Height | 1,283 mmcorrect |
| Wheelbase | 1,778 mmcorrect |
| Ground clearance | 533 mmcorrect |
| Unladen weight | 1,782 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 4 V/1 Rcorrect |
| Forward gears | 4correct |
| Reverse gears | 1correct |
| Front tyres | 5.00 x 15correct |
| Rear tyres | 9 x 24correct |
| Top speed | 16 km/hcorrect |
Working data
| Fuel tank capacity | 37.9 lcorrect |
|---|
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|---|
| Units built | 87.812 alle Versionencorrect |
Where this model stands
Power-to-weight ratio: 8.5 kW/t (15 kW / 1.8 t)
Power class: Compact (< 40 hp)
Stronger than 8% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the John Deere Modell-M have?
The John Deere Modell-M delivers 20.7 hp.
How much does the John Deere Modell-M weigh?
The unladen weight is 1,782 kg.
What engine does the John Deere Modell-M have?
2 cylinders, 1,647 cm³ displacement, Benzin/Kerosin.
How fast does the John Deere Modell-M go?
Top speed is 16 km/h.
What are the dimensions of the John Deere Modell-M?
2,591 mm × 1,290 mm × 1,283 mm.
When was the John Deere Modell-M built?
Production years: 1947–1952.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
