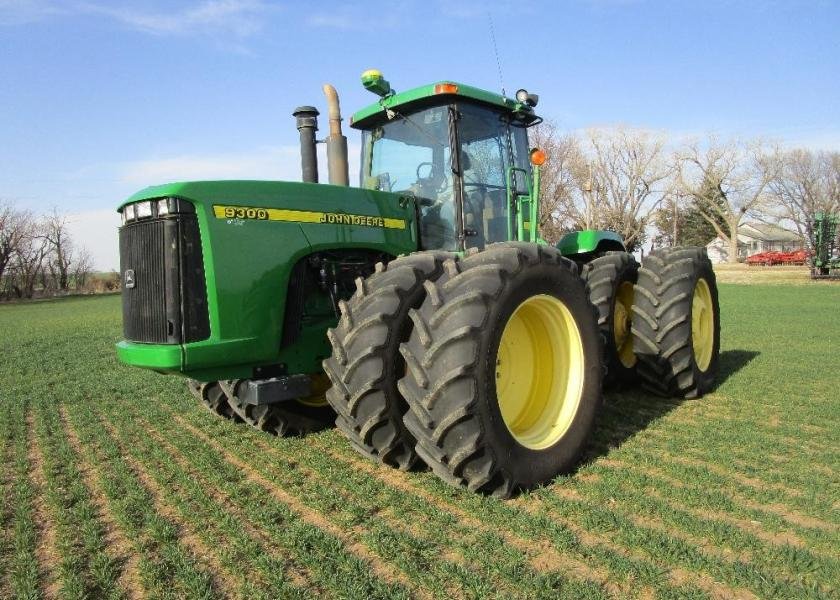

John Deere 9300 T
Built: 1998–2002 · Series: 9000er-Baureihe
More machines from model year 1998
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
John Deere 9300 T and 9400 T – the articulated 9000 series from Waterloo since 1996: six-cylinder engine of 12,535 cm³, 265 to 312.8 kW
The 9000 series is John Deere's articulated range for the largest power class, built since 1996 at the Waterloo plant in the US: two rigid chassis halves are joined by an articulation hinge, and the tractor steers by bending at this joint rather than through steered front wheels, allowing tighter turning circles at high pulling power on very large fields. The 9300 T and 9400 T represent two power steps within this range. The 9000 series was the first generation of John Deere's articulated tractors for the top power class, before the successor 9020 series and later the 9R series carried the concept forward.
Read on 3 more paragraphs
The register lists 2 versions of 265 to 312.8 kW (360 to 425 hp) from a six-cylinder engine of 12,535 cm³ at 2,100 rpm, unladen weights from 19,017 to 19,257 kg, a length of 6,020 mm, a width of 3,646 mm and a height of 3,454 mm.
As articulated tractors for the largest North American arable farms, the 9300 T and 9400 T compete directly with Case IH's Steiger and New Holland's T9 ranges; the wide track, often fitted with dual wheels, spreads the high weight over a large footprint.
On a used example, what counts is operating hours, the condition of the articulation joint and its bearings, tightness of engine, gearbox and hydraulics, and the state of the tyres; spare parts run through John Deere's dealer network.
Sources: SpecCodex register, model data: John Deere 9000er-Baureihe, John Deere (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 360 hp (265 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 12,535 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 6,020 mmcorrect |
|---|---|
| Width | 3,646 mmcorrect |
| Height | 3,454 mmcorrect |
| Wheelbase | 2,819 mmcorrect |
| Ground clearance | 368 mmcorrect |
| Unladen weight | 19,017 kgcorrect |
Drivetrain and chassis
| Drive | track drivecorrect |
|---|---|
| Gearbox | 24V/6Rcorrect |
| Forward gears | 24correct |
| Reverse gears | 6correct |
| Front tyres | 762 x 2.819correct |
| Rear tyres | 762 x 2.819correct |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 1,143 lcorrect |
|---|
Other data
| Linkage category | Cat III/Icorrect |
|---|
Where this model stands
Power-to-weight ratio: 13.9 kW/t (265 kW / 19 t)
Power class: Heavy (> 180 hp)
Stronger than 98% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the John Deere 9300 T have?
The John Deere 9300 T delivers 360 hp.
How much does the John Deere 9300 T weigh?
The unladen weight is 19,017 kg.
What engine does the John Deere 9300 T have?
6 cylinders, 12,535 cm³ displacement, Diesel.
How fast does the John Deere 9300 T go?
Top speed is 30 km/h.
What are the dimensions of the John Deere 9300 T?
6,020 mm × 3,646 mm × 3,454 mm.
When was the John Deere 9300 T built?
Production years: 1998–2002.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 23 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
