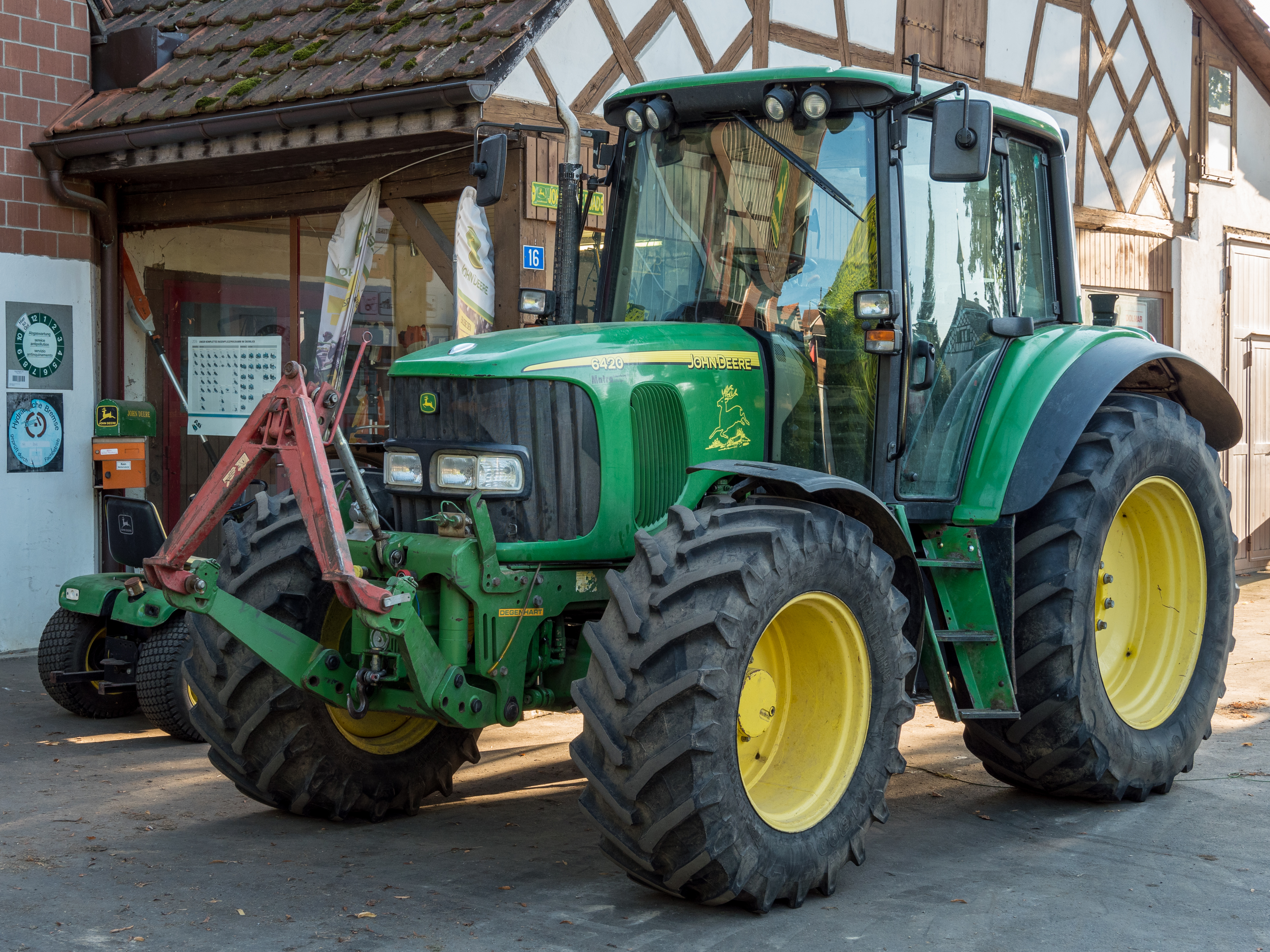

John Deere 6420 (5040 kg)
Built: 2002–2006 · Series: 6020er
More machines from model year 2002
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
John Deere 6020 series — and why the year decides on an AutoPowr: four- and six-cylinder diesels with 58.9 to 117.8 kW (80 to 160 hp), 4,525 to 6,788 cm³ displacement
The 6020 series replaced the widespread 6010 models in 2001. The 6920 itself was built from 2002 to 2007. Its direct-injection six-cylinder displaces 6,788 cc, runs turbocharged with an intercooler and delivers 118 kW, or 160 hp.
Read on 4 more paragraphs
Decisive for a used purchase is the transmission, because the range was offered with four: PowerQuad, AutoQuad Plus, EcoShift and the stepless AutoPowr. The top 6020 Premium Plus had the AutoPowr as standard.
Here lies the most important practical note: on the stepless 6920 AutoPowr, years before 2005 are not recommended. Until 2004 there were significant problems with the transmission control valves. Anyone examining an offer should therefore read transmission type and year together — an AutoPowr from 2003 and one from 2006 are economically two different machines.
Outwardly the range is recognisable by the then-new SG068 cab, which gave the four- and six-cylinder tractors a more modern appearance. It is a useful marker for telling a 6020 from its predecessor when the data plate is missing.
In this power class up to 117.8 kW, the three-point hitch was consistently built to category II, and the PTO was usually available in three speeds: 540, 1,000 and the fuel-saving 1,000E. Parts for the 6020 series remain well available through the John Deere dealer network, regardless of transmission type and model year.
Sources: SpecCodex register, model data: John Deere 6020er, John Deere
Technical data
Engine
| Engine | John Deere PowrTech 4.045 HL/HLAcorrect |
|---|---|
| Power | 110 hpcorrect |
| Torque | 442 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,525 cm³correct |
Dimensions and weights
| Unladen weight | 5,040 kgcorrect |
|---|
Drivetrain and chassis
| Gearbox | PowrQuad-Plus / AutoQuad-Pluscorrect |
|---|
Working data
| Fuel tank capacity | 185 lcorrect |
|---|
Other data
| Linkage category | Cat II/IIIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 16 kW/t (81 kW / 5 t)
Power class: Large (100–180 hp)
Stronger than 70% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the John Deere 6420 have?
The John Deere 6420 delivers 110 hp.
How much does the John Deere 6420 weigh?
The unladen weight is 5,040 kg.
What engine does the John Deere 6420 have?
4 cylinders, 4,525 cm³ displacement.
When was the John Deere 6420 built?
Production years: 2002–2006.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
