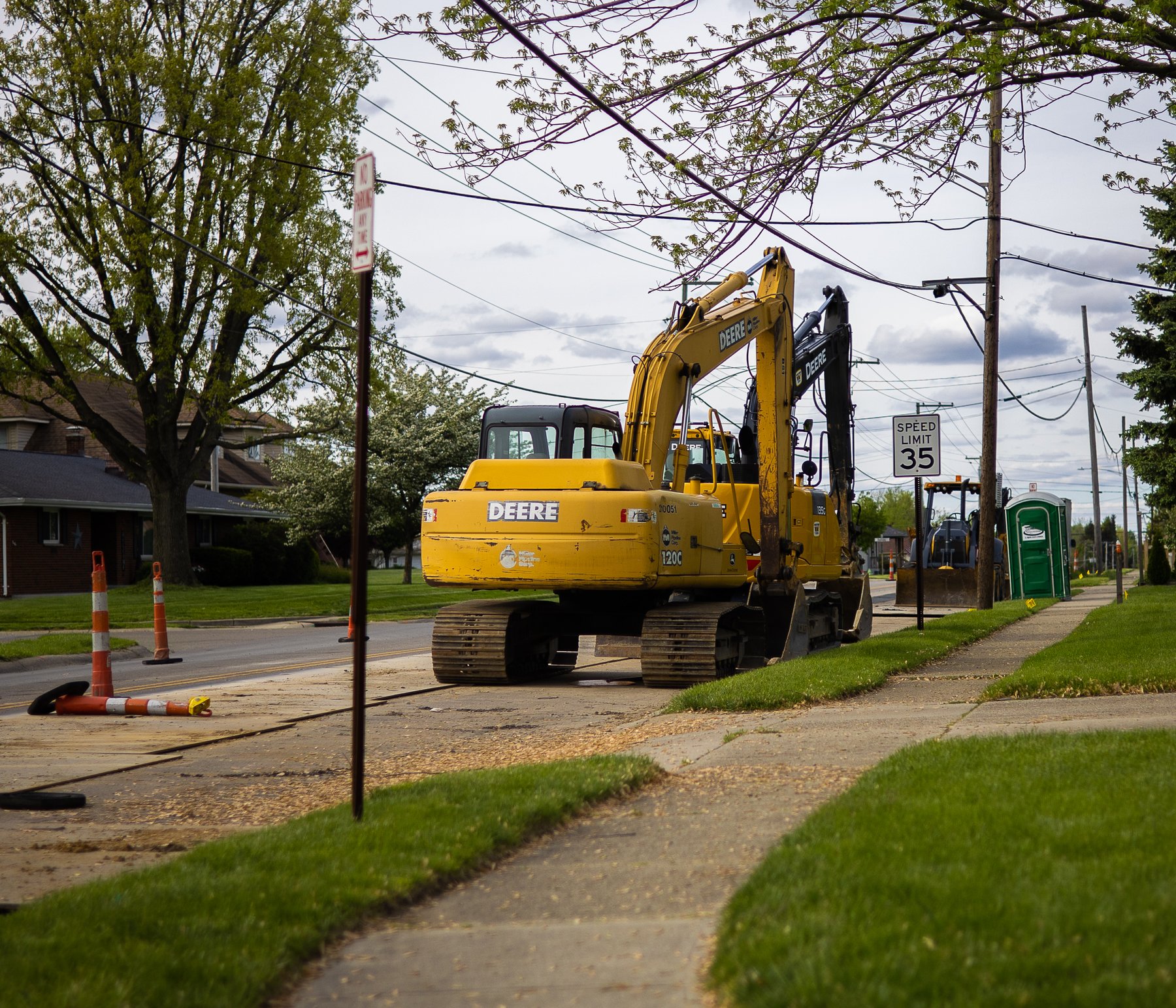

John Deere 120C

Series: John Deere Hydraulic Excavator

Source: https://commons.wikimedia.org/w/index.php?curid=105468595 u

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The John Deere Hydraulic Excavator series from John Deere includes the 120C. The engine delivers 66.4 kW, has 4 cylinders, with a displacement of 4,522.8 cm³. Torque is 372.8 Nm. Rated speed is 2,200 rpm. The unladen weight is 13,081.6 kg. Ground clearance is 442 mm. The tank holds 250.2 litres. Maximum torque is reached at 1,400 rpm. The pump delivers 210.1 l/min. The hydraulic tank holds 134 litres. Working pressure is 343.4 bar. The cooling system holds 26.9 litres. The oil fill is 14 litres. The electrical system runs on 24 V. The engine fitted is the 4045H. The John Deere Hydraulic Excavator series covers 82 models. Rated output within it ranges from 48.5 to 396.7 kW; the 120C sits at the bottom of that range with 66.4 kW. Its immediate neighbours are the 135C RTS below it with 65.6 kW and the 120 above it with 67.1 kW. 2153 John Deere models across 96 series are on record. The model is listed under Excavators & compaction. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine model4045Hcorrect
Power66.4 kWcorrect
Rated speed2,200 rpmcorrect
Torque372.8correct
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement4,522.8 cm³correct
AspirationTurbocharged air-to-air charge air coolercorrect
Coolant capacity26.9 lcorrect
Engine oil capacity14 lcorrect

Dimensions and weights

Ground clearance442correct
Unladen weight13,081.6 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow210.1 l/mincorrect
Hydraulic oil capacity134 lcorrect
Hydraulic pressure343.4 barcorrect
Fuel tank capacity250.2 lcorrect

Other data

Height2,740.2correct

Where this model stands

Power-to-weight ratio: 5.1 kW/t (66 kW / 13.1 t)

Stronger than 22% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the John Deere 120C have?

The John Deere 120C delivers 66.4 kW.

How much does the John Deere 120C weigh?

The unladen weight is 13,082 kg.

What engine does the John Deere 120C have?

4 cylinders, 4,523 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
