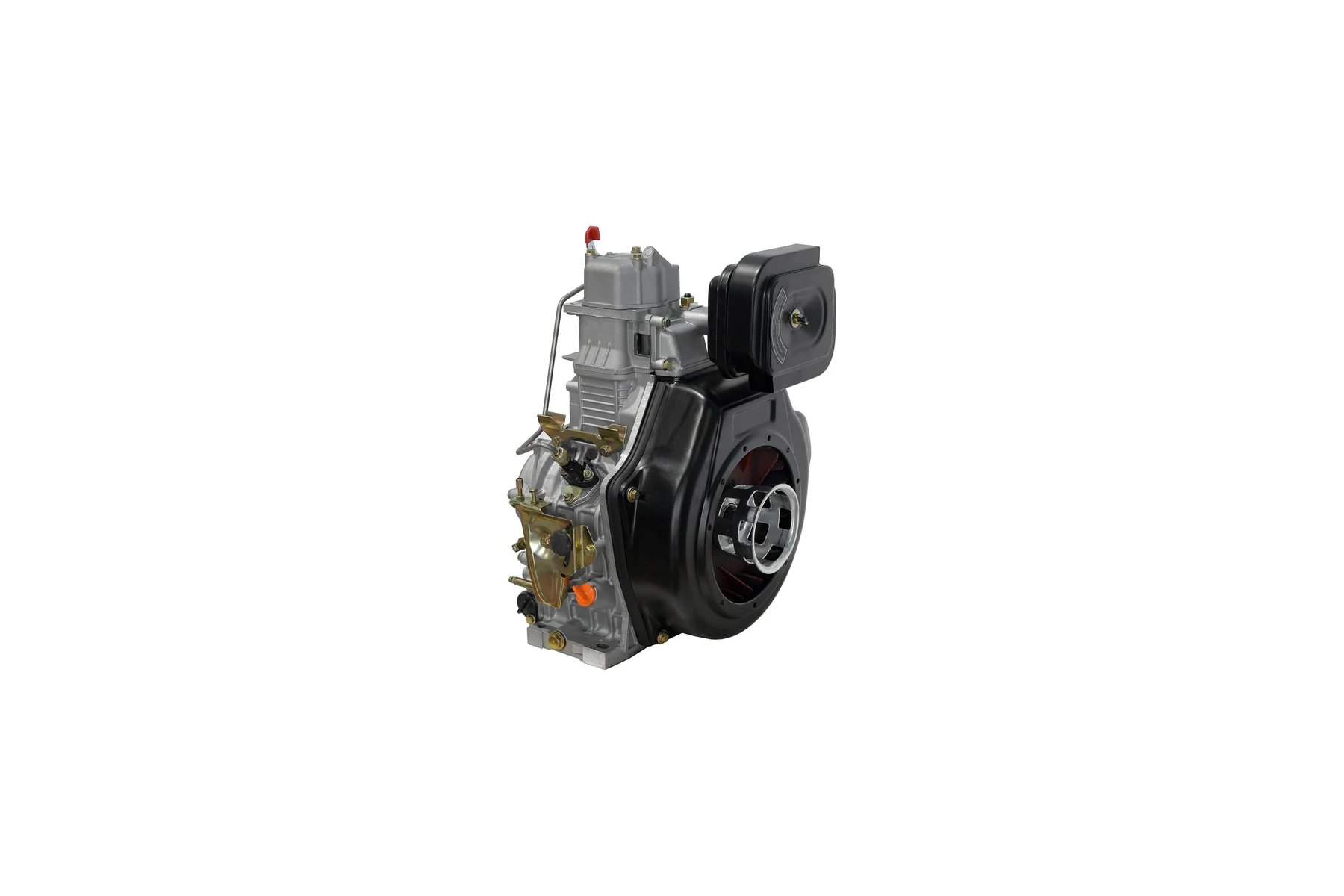

Jin Hongxiang JD186FA

The JD186FA delivers 6 kW, placing it in the lowest power class of engines used to drive working equipment. This output is enough for small generators, water pumps, ground compactors or single-axle agricultural implements, but not for propelling vehicles or larger construction machinery. The 2012 build year places the engine in a period when small diesels of this kind were increasingly replacing petrol engines of the same power class in export markets, since they use less fuel per operating hour and tolerate careless handling better.

Engines of this power class are almost always air-cooled single cylinders with direct injection and a decompression lever for manual starting by rope or crank. They run at speeds of roughly 3,000 to 3,600 rpm, at which they drive generators, pumps or compressors through a belt pulley or directly through the clutch shaft. Because of their low output they fall outside the scope of the emission standards that apply to large mobile machinery.

When buying second-hand, compression comes first: if the engine can barely be turned over by hand without the decompression lever, the cylinder is worn or the piston rings are leaking. The cooling fins must be free of oil and dust crusts, otherwise the engine overheats in continuous operation. The fuel tank should be checked for water and rust in the diesel, since simple injection pumps are sensitive to contamination. An even, non-rattling engine sound at idle indicates an injection system that is still intact.
