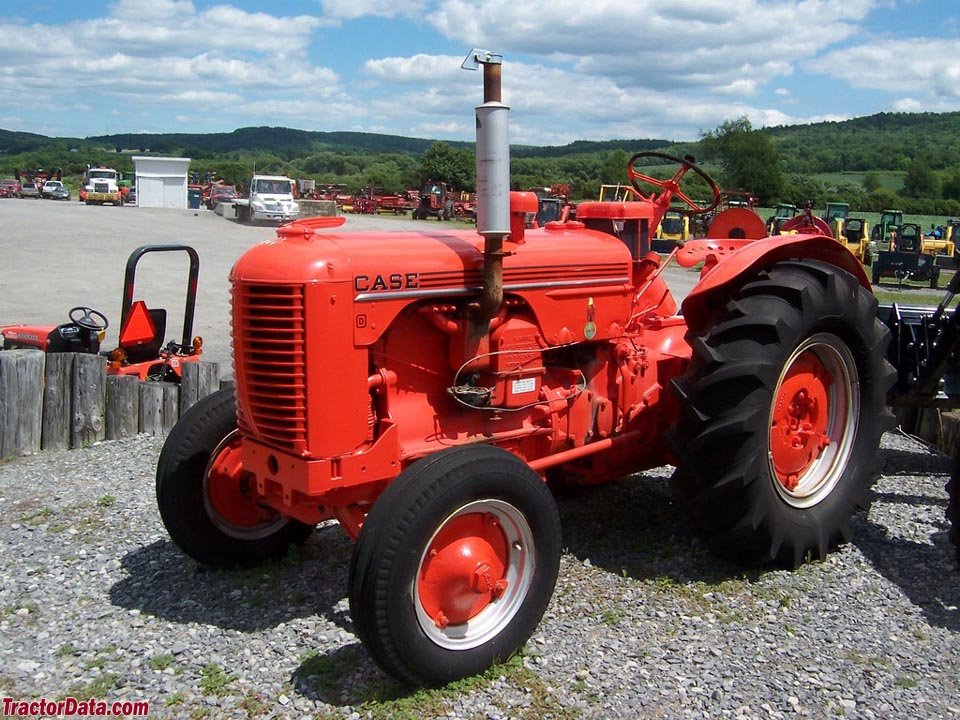

JI Case MODELL - D
Built: 1939–1953 · Series: Other models
More machines from model year 1939
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
JI Case – other models: the collective page of historic Case tractors from Racine outside the named ranges, with the D and DC types, 23.6 to 24.6 kW, 3,177 to 3,180 kg
This page gathers J.I. Case tractors from Racine, Wisconsin, that the register could not assign to a named range, represented here by the D and DC types. The Case D was a classic universal tractor with standard tread, while the DC version was designed as a narrow-tread model with a tighter front axle for row-crop work.
Read on 3 more paragraphs
The register lists here 2 versions with 23.6 to 24.6 kW from four-cylinder engines of 4,249 cm³ displacement, weights from 3,177 to 3,180 kg, lengths from 2,946 to 3,416 mm, widths from 1,397 to 1,562 mm, heights from 1,257 to 1,378 mm and rated speeds from 1,100 to 1,200 rpm.
The D and its variants were among the most widely built Case tractors of their time and, with their rugged four-cylinder engineering, competed directly with universal tractors from John Deere, Farmall and Allis-Chalmers; they met the needs of medium-sized and larger farms in American grain and row-crop farming across the Midwest.
Buying one of these historic models used, the condition and tightness of the engine, the condition of the clutch and gearbox, and rust on the bodywork and mudguards matter; on versions running on kerosene or petroleum, the condition of the vaporiser and ignition system is also worth checking. Spare parts are available through specialist collectors and clubs for historic Case tractors.
Sources: SpecCodex register, model data: JI Case (weitere Modelle), Case IH
Technical data
Engine
| Fuel | Benzin/Kerosincorrect |
|---|---|
| Power | 32.3 hp (23.6 kW)correct |
| Rated speed | 1,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,249 cm³correct |
| Bore | 98.4 mmcorrect |
| Stroke | 140 mmcorrect |
| Compression ratio | 4.88correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,946 mmcorrect |
|---|---|
| Width | 1,562 mmcorrect |
| Height | 1,257 mmcorrect |
| Wheelbase | 1,686 mmcorrect |
| Ground clearance | 356 mmcorrect |
| Unladen weight | 3,177 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 4 V/1 Rcorrect |
| Front tyres | 7.50" x 16"correct |
| Rear tyres | 12.75" x 24"correct |
| Top speed | 17.7 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | 14,396correct |
Where this model stands
Power-to-weight ratio: 7.4 kW/t (24 kW / 3.2 t)
Power class: Compact (< 40 hp)
Stronger than 19% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the JI Case MODELL - D have?
The JI Case MODELL - D delivers 32.3 hp.
How much does the JI Case MODELL - D weigh?
The unladen weight is 3,177 kg.
What engine does the JI Case MODELL - D have?
4 cylinders, 4,249 cm³ displacement, Benzin/Kerosin.
How fast does the JI Case MODELL - D go?
Top speed is 17.7 km/h.
What are the dimensions of the JI Case MODELL - D?
2,946 mm × 1,562 mm × 1,257 mm.
When was the JI Case MODELL - D built?
Production years: 1939–1953.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
