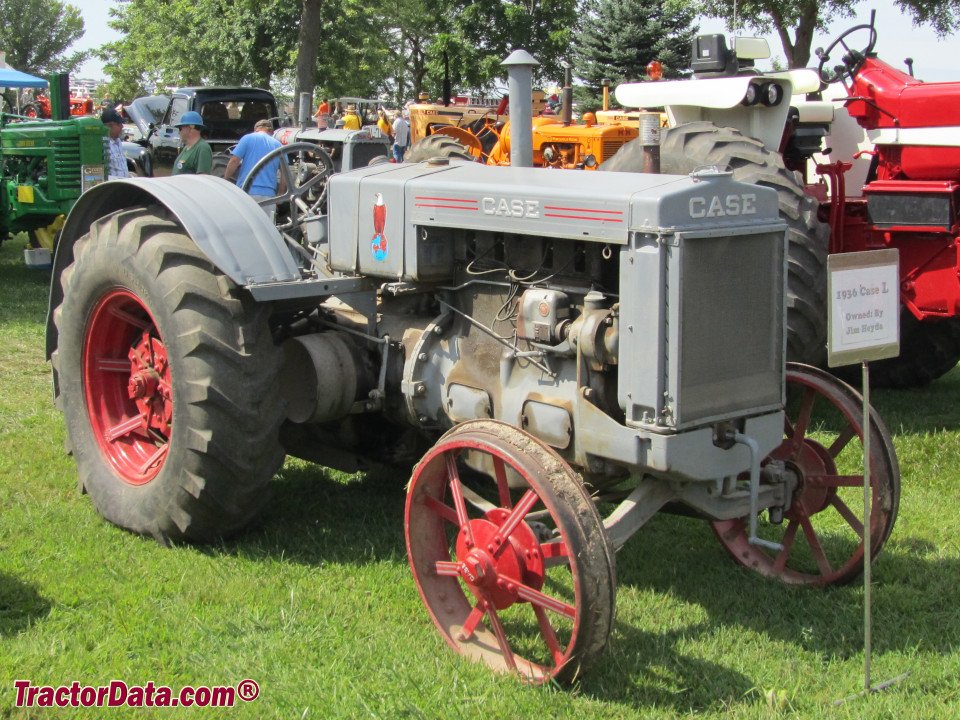

JI Case MODELL-L
Built: 1929–1940 · Series: LETTERS-Baureihe
More machines from model year 1929
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
J.I. Case letter series (1929–1955) – C, L, R, S and V: the letter as size class, C for row crop, A for the revision, petrol and kerosene, 13 to 39 kW
The letter series is Case's tractor programme of the pre-war and post-war years, named by letters instead of numbers: the Model L of 1929 – a 6.6-litre four-cylinder for the prairie – and the Model C of the same year founded the range, R (1935) and V (1939) added the small classes, S (1941) the mid-range, and LA (1940) replaced the L. The appended letters explain the version: C for the row-crop version with closely spaced front wheels (CC, RC, SC, VC), A for the revised generation (LA, VA, VAC), I for the industrial version (SI), 3 on the CC-3 for the tricycle layout. The engines were Case's own four-cylinders, laid out for petrol, kerosene and distillate – the diesel engine only came to Case in 1953 with the Model 500.
Read on 3 more paragraphs
The register lists 13 versions with 12.7 to 39.1 kW, 2,027 to 6,610 cm³ with four cylinders, rated speeds of 1,100 to 1,600 rpm, unladen weights from 1,073 to 3,457 kg, lengths from 2,718 to 3,556 mm, widths from 1,429 to 1,911 mm and heights from 1,118 to 1,561 mm; seven models run on petrol, the rest optionally on kerosene, propane or all-fuel.
With the letters Case introduced the Flambeau Red livery in 1939, which stayed into the 1960s; the Model VAC with about 70,000 units was the most-built Case of the range, the Model L the tractor that founded Case's reputation in the wheat belt.
Used letter-series tractors are American collector classics; when buying, originality, engine condition, carburettor and magneto, gearbox and the availability of sheet-metal parts, secured through remanufacturers, are what count.
Sources: SpecCodex register, model data: J.I. Case Letters-Baureihe, Case Corporation (Wikipedia)
Technical data
Engine
| Fuel | Benzin/Kerosincorrect |
|---|---|
| Power | 40.6 hp (29.9 kW)correct |
| Rated speed | 1,100 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 6,610 cm³correct |
| Bore | 117.5 mmcorrect |
| Stroke | 152.4 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,353 mmcorrect |
|---|---|
| Width | 1,702 mmcorrect |
| Height | 1,448 mmcorrect |
| Wheelbase | 2,007 mmcorrect |
| Unladen weight | 2,404 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 3 V/1 Rcorrect |
| Front tyres | 30" x 6"correct |
| Rear tyres | 48" x 12"correct |
| Top speed | 8.98 km/hcorrect |
Origin and approval
| Construction | cast-frame constructioncorrect |
|---|---|
| Units built | 31,678correct |
Where this model stands
Power-to-weight ratio: 12.4 kW/t (30 kW / 2.4 t)
Power class: Universal (40–100 hp)
Stronger than 26% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the JI Case MODELL-L have?
The JI Case MODELL-L delivers 40.6 hp.
How much does the JI Case MODELL-L weigh?
The unladen weight is 2,404 kg.
What engine does the JI Case MODELL-L have?
4 cylinders, 6,610 cm³ displacement, Benzin/Kerosin.
How fast does the JI Case MODELL-L go?
Top speed is 9 km/h.
What are the dimensions of the JI Case MODELL-L?
3,353 mm × 1,702 mm × 1,448 mm.
When was the JI Case MODELL-L built?
Production years: 1929–1940.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
