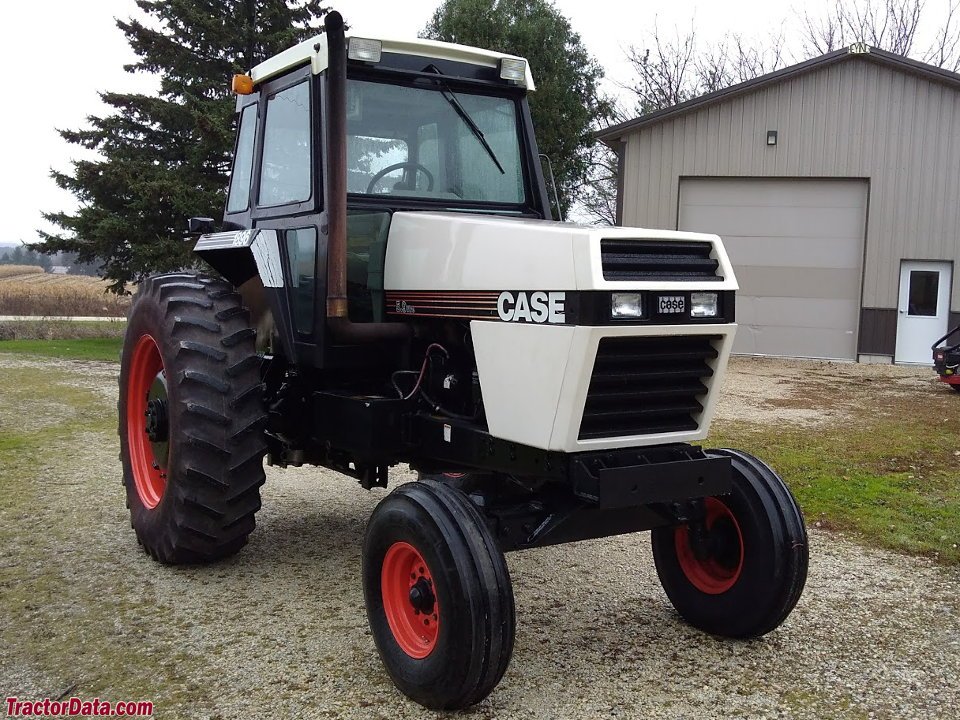

JI Case 1896 (DT)

Built: 1984–1985 · Series: 96 er-Baureihe

More machines from model year 1984

Source: http://tractordata.com/farm-tractors/006/6/3/6634-ji-case-18

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 96er series from JI Case includes the 1896 (DT). Production: 1984–1985. The engine delivers 95 hp (69.9 kW), has 6 cylinders, with a displacement of 5,884 cm³. Torque is 493 Nm. Rated speed is 2,100 rpm. The machine is 4,343 mm long, 2,567 mm wide and 2,997 mm high. The unladen weight is 5,375 kg. The wheelbase measures 2,743 mm. Ground clearance is 406 mm. Top speed is 30 km/h. Transmission: 12 V/3 R. The engine is water-cooled. Tyres: front 11.00-16 ASF (DT: 16.9-26 AS), rear 18.4-38 AS. The fuel is diesel. The bore measures 102 mm. The stroke is 120 mm. The compression ratio is 17.5:1. Maximum torque is reached at 1,202 rpm. Construction: unit construction (no separate frame). Rated output across the JI Case range ranges from 17.2 to 400 hp; the 1896 (DT) sits in the lower part of that range with 95 hp. Its immediate neighbours are the 970 below it with 86.9 hp and the 1594 (DT) above it with 97 hp. Rated output across the JI Case range ranges from 12.7 to 294.2 kW; here the 1896 (DT) sits in the lower part of that range with 69.9 kW. 121 JI Case models across 13 series are on record.

JI Case 1896 (DT) and 2096 (DT) – six-cylinder four-wheel-drive tractors of the 96 range from Racine: turbo-diesel engines of 69.9 to 85.1 kW, 493 to 542 Nm, 5,375 to 5,386 kg

The 96 range from J.I. Case of Racine, Wisconsin, includes here the 1896 (DT) and 2096 (DT) types; the DT suffix stands for Dual Traction, the engageable four-wheel drive of these powerful farm tractors. The number sequence orders the models within the range by power, with the 2096 the stronger of the two.

Read on 3 more paragraphs

The register lists here 2 versions with 69.9 to 85.1 kW from six-cylinder diesel engines of 5,884 cm³ displacement, torques from 493 to 542 Nm at a rated speed of 2,100 rpm, weights from 5,375 to 5,386 kg, a length of 4,343 mm, a width of 2,567 mm and a height of 2,997 mm.

With a six-cylinder engine and four-wheel drive, the Case 96-series tractors occupied the upper power segment of North American arable farming and competed directly with the large four-wheel-drive models from John Deere and International Harvester; typical use was on large Midwest farms with heavy demand for pulling power for heavy cultivation implements.

Buying one of these powerful four-wheel-drive tractors used, the condition of the turbocharger and injection system, the tightness of the engine and hydraulics, the condition of the clutch and gearbox, and play in the front axle and four-wheel-drive clutch all matter. Spare parts run through today's Case IH dealer network, which as legal successor secures supply for this range.

Sources: SpecCodex register, model data: JI Case 96er-Baureihe, Case IH

Technical data

Engine

Fuel	dieselcorrect
Power	95 hp (69.9 kW)correct
Rated speed	2,100 rpmcorrect
Torque	493 Nmcorrect
Speed at max. torque	1,202 rpmcorrect
Cylinders	6correct
Displacement	5,884 cm³correct
Bore	102 mmcorrect
Stroke	120 mmcorrect
Compression ratio	17.5correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,343 mmcorrect
Width	2,567 mmcorrect
Height	2,997 mmcorrect
Wheelbase	2,743 mmcorrect
Ground clearance	406 mmcorrect
Unladen weight	5,375 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	12 V/3 Rcorrect
Front tyres	11.00-16 ASF (DT: 16.9-26 AS)correct
Rear tyres	18.4-38 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 13 kW/t (70 kW / 5.4 t)

Power class: Universal (40–100 hp)

Stronger than 63% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the JI Case 1896 (DT) have?

The JI Case 1896 (DT) delivers 95 hp.

How much does the JI Case 1896 (DT) weigh?

The unladen weight is 5,375 kg.

What engine does the JI Case 1896 (DT) have?

6 cylinders, 5,884 cm³ displacement, Diesel.

How fast does the JI Case 1896 (DT) go?

Top speed is 30 km/h.

What are the dimensions of the JI Case 1896 (DT)?

4,343 mm × 2,567 mm × 2,997 mm.

When was the JI Case 1896 (DT) built?

Production years: 1984–1985.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
