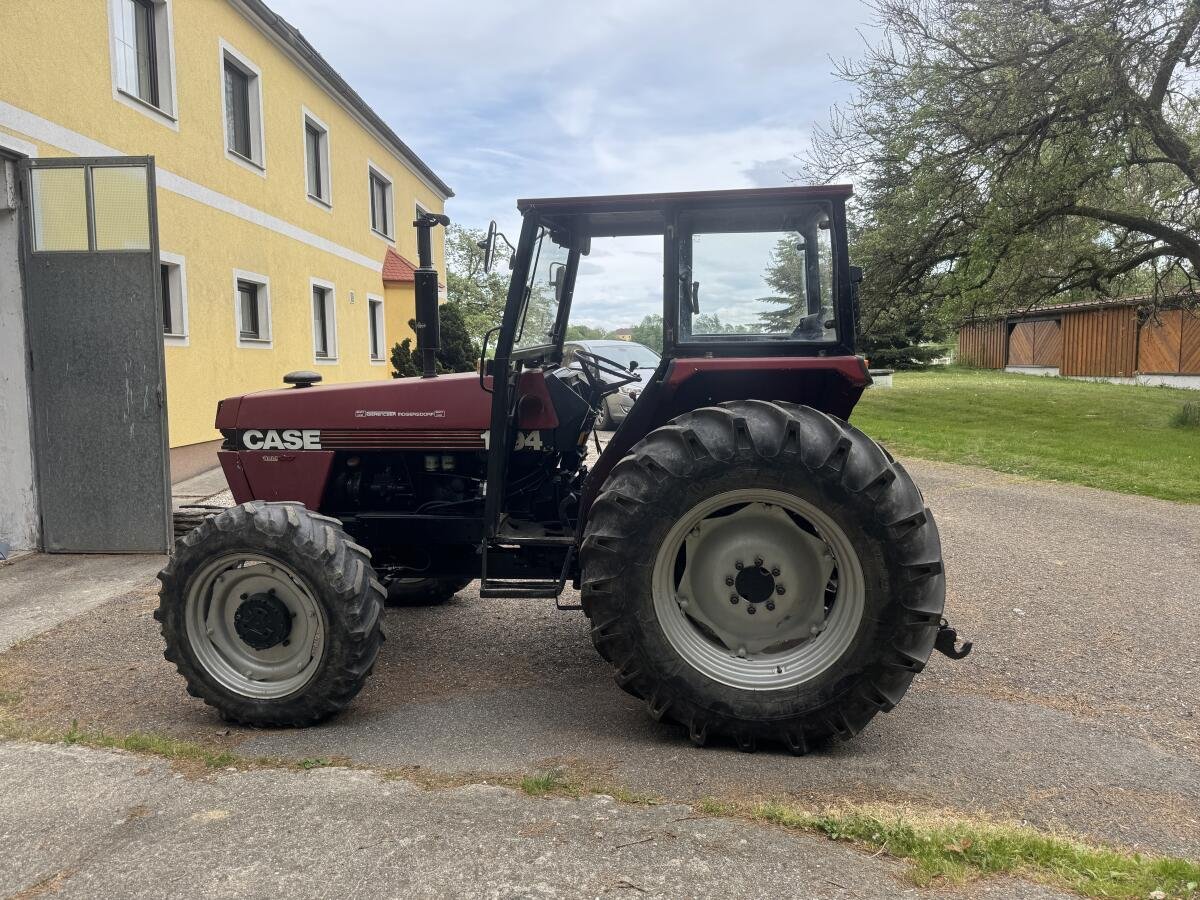

JI Case 1394 (DT)
Built: 1984–1985 · Series: 94 er-Baureihe
More machines from model year 1984
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
J.I. Case 94 series (1983–1988) – 1194 to 4994: David Brown from Meltham, Racine and the articulated V8s, the last Case before Case IH, 35 to 294 kW
The 94 series was the last tractor programme J.I. Case launched under its own name before parent Tenneco bought International Harvester's farm-machinery division in 1985 and formed Case IH from it. It gathers three origins: the small and medium 1194 to 1694 come from the Meltham plant in Yorkshire that Case had taken over with David Brown in 1972 – the English designs with three- and four-cylinders ran in Case colours from 1983; the 2094 to 3294 came from Racine, Wisconsin, with Case six-cylinders and the Power Shift transmission; the 4494, 4694, 4894 and 4994 were the articulated large tractors from the Bettendorf, Iowa plant, the 4994 with a V8 diesel of 14,191 cm³ and about 400 hp the strongest Case of its time. The suffix DT denotes four-wheel drive in European sales literature.
Read on 3 more paragraphs
The register lists 15 versions with 35.3 to 294.2 kW, 2,699 to 14,191 cm³ with three to eight cylinders, torque from 167 to 1,309 Nm, unladen weights from 2,110 to 14,204 kg, lengths from 3,073 to 6,650 mm, widths from 1,778 to 3,048 mm and heights from 2,388 to 3,518 mm – all diesel.
In 1987 the Magnum replaced the Racine models, and the Meltham types continued as the Case IH 85 series; the 94s are thus the bridge between the Case era and today's group.
Used, the Meltham models are common farmyard tractors in Europe with simple technology; when buying, engine and transmission (Synchromesh or Hydra-Shift), hydraulics and front axle count, and on the articulated models the articulation joint, transmission and tyres.
Sources: SpecCodex register, model data: J.I. Case 94er-Baureihe, Case Corporation (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 73 hp (53.7 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 272 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,598 cm³correct |
| Bore | 100.1 mmcorrect |
| Stroke | 114.3 mmcorrect |
| Compression ratio | 16correct |
| Injection pressure | 177 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,630 mmcorrect |
|---|---|
| Width | 1,778 mmcorrect |
| Height | 2,540 mmcorrect |
| Wheelbase | 2,108 mmcorrect |
| Ground clearance | 381 mmcorrect |
| Unladen weight | 2,957 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/4 Rcorrect |
| Front tyres | 7.50-16 ASF (DT: 12.4-24 AS)correct |
| Rear tyres | 13.6-36 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 18.2 kW/t (54 kW / 3 t)
Power class: Universal (40–100 hp)
Stronger than 50% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the JI Case 1394 (DT) have?
The JI Case 1394 (DT) delivers 73 hp.
How much does the JI Case 1394 (DT) weigh?
The unladen weight is 2,957 kg.
What engine does the JI Case 1394 (DT) have?
4 cylinders, 3,598 cm³ displacement, Diesel.
How fast does the JI Case 1394 (DT) go?
Top speed is 30 km/h.
What are the dimensions of the JI Case 1394 (DT)?
3,630 mm × 1,778 mm × 2,540 mm.
When was the JI Case 1394 (DT) built?
Production years: 1984–1985.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
