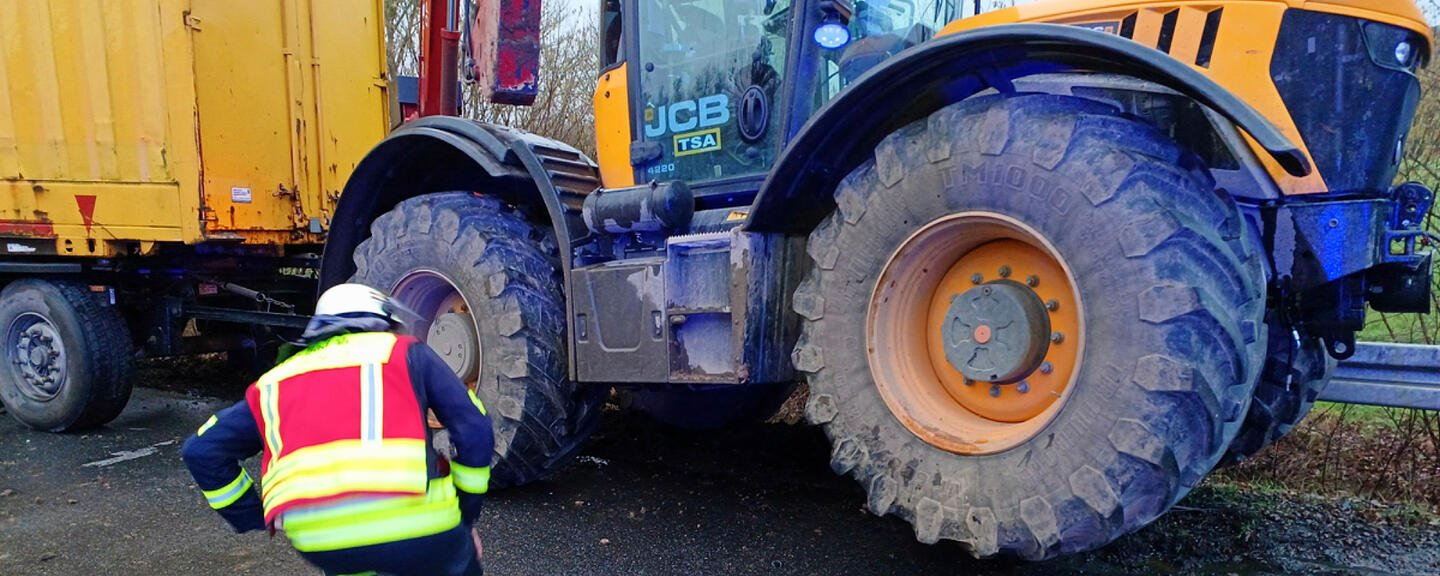

JCB 8330 4WD – specifications
Series: Other models
Build year not documented · Data origin: Official register, Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The JCB 8330 is a tractor in the tractor category, configured with all-wheel drive. The vehicle originates from the product range of the British manufacturer JCB and is positioned as heavy-duty equipment for agricultural and municipal applications. The design is based on a six-cylinder engine block supported by a turbocharger with charge air cooling. This configuration ensures high power output while maintaining controlled combustion temperatures, which is crucial for sustained loads in field operations.
The core component is the AGCO Power engine, type 84AWF, which delivers a maximum torque of 1,062 Nm. This high value enables the pulling of heavy implements or overcoming resistance in deep soil without frequent downshifting. The transmission is designed as a continuously variable unit with two power shift ranges and six operating modes, allowing precise adjustment of speed to the respective task. With an overall length of 5,650.2 mm and a wheelbase of 3,120.1 mm, the tractor offers a stable base, while the ground clearance of 470.2 mm facilitates traversing obstacles and uneven terrain.
Within the available data, the JCB 8330 is documented as a standalone model without direct comparison figures to smaller or larger sibling models. Machines of this size and drive configuration are typically suitable for intensive soil cultivation, transport tasks with heavy trailers, and front loader applications. The combination of high torque and continuously variable power transmission makes the vehicle suitable for operations requiring constant traction at varying speeds, without the driver needing to manually intervene in the gear stages.
JCB – other models: the collective page of farm equipment outside the named ranges, from the Fastrac 145 and 155-65 through the 2135, 3185 and 3230 Xtra to the 4160
This page gathers the JCB farm machines the register could not assign to a named range – above all the Fastrac, the tractor with which the backhoe-loader maker from Rocester in Staffordshire entered agriculture in 1991, and the Agri telehandlers with which JCB shaped the farm-loader market. The type logic of the Fastrac: the early types 145 and 155-65 give the hp class (and the top speed in km/h), the 2000 and 3000 ranges of the 2000s the series in the first digit and the power in the following ones (2135 about 135 hp, 3230 about 230 hp), Xtra the equipment line; the 4000 (4160 to 4220) and 8000 (8250 to 8330) ranges since 2005 and 2014 follow the same logic with stepless transmission. The Fastrac is a systems tractor with full suspension, disc brakes and central cab that is the only tractor approved for 70 km/h. The telehandlers give capacity and lift height in the digits – 531-70 3.1 t to 7 m, 536-70 3.6 t to 7 m, 560-80 6 t to 8 m – Agri, Agri Super and Agri Pro the equipment lines. The engines come from AGCO Power (Sisu) in the Fastrac 4000 and 8000, from Perkins and JCB (Dieselmax, EcoMax) in the others.
Read on 3 more paragraphs
The register lists here 130 versions with 12.9 to 185 kW from three- to six-cylinders of 784 to 8,268 cm³, unladen weights from 840 to 11,870 kg, gross weights from 1,360 to 16,000 kg, lengths from 2,980 to 6,030 mm and widths from 1,520 to 2,600 mm.
The Fastrac is the tractor of contractors and haulage farms in Britain, Germany and Scandinavia; the Agri telehandlers are market leaders of their class in Europe.
On used Fastracs, operating hours, suspension and brakes (disc brakes take road wear), transmission (powershift or stepless), engine and electronics count, on the telehandlers boom, wear pads, hydraulics and axles; parts run through JCB dealers.
Sources: SpecCodex register, model data: JCB (weitere Modelle), JCB (Hersteller, Rocester)
Technical data
Engine
| Engine make | AGCO Powercorrect |
|---|---|
| Engine model | 84AWFcorrect |
| Torque | 1,062 Nmcorrect |
| Cylinders | 6correct |
| Aspiration | Turbocharged and intercooledcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,650.2 mmcorrect |
|---|---|
| Wheelbase | 3,120.1 mmcorrect |
| Ground clearance | 470.2 mmcorrect |
Drivetrain and chassis
| Gearbox type | 2 range continuously variable transmission with 6 modes of operation.correct |
|---|
Frequently asked questions
What engine does the JCB 8330 have?
6 cylinders.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
